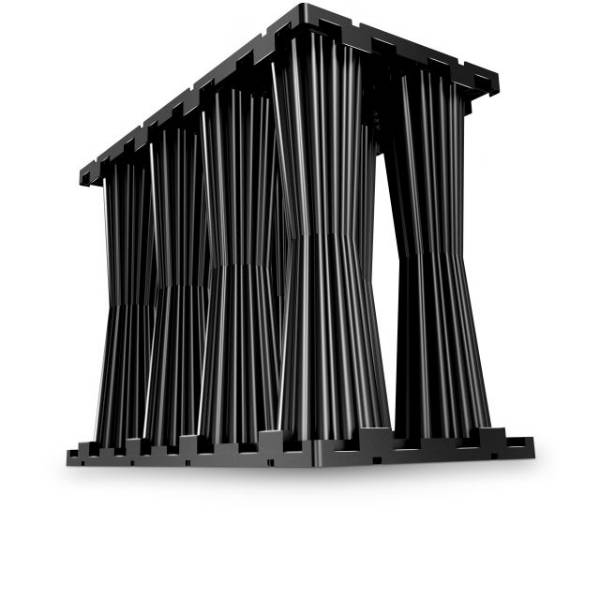

ACO StormBrixx SD
Compare variants

Application

  • Domestic landscaping.
  • Public landscaping.
  • Car parking.
  • HGV parking.
  • Petrol station forecourts.
  • Heavy industrial.
  • Light industrial.
  • Distribution yards.
  • Airport (airside).
  • Port and dock sides.
  • Security areas.
  • SuDs - Sustainable drainage system.

Description

ACO StormBrixx is a unique and patented plastic geocellular stormwater management system for attenuation and soakaway (infiltration) usage.


Its versatile design allows the system to be used in configurations and applications across all construction environments as a standalone solution or as part of an integrated sustainable urban drainage (SuDS) scheme.


The patented brickbonding and cross bonding feature provides a strong, long term installation and also helps to improve the construction speed of the tank.


ACO StormBrixx simplifies delivery, site logistics and installation as a result of its stackable design. For each delivery of StormBrixx, up to 4 loads of competitor product may be required, making StormBrixx approximately 75% more efficient in delivery.


The range consists of StormBrixx SD (standard duty) and StormBrixx HD (heavy duty) stormwater management systems. StormBrixx HD can be specified separately.

General information

Color

Black

Material

Plastic

Size

53.4 x 44.2 x 26.5 mm

450 x 592 x 104 mm

550 x 550 x 45 mm

907 x 592 x 104 mm

1200 x 600 x 94 mm

Show more

Uniclass 2015

Pr_60_50_96_65 Polypropylene (PP) tanksPrimary

CAWS

R12/464 Modular stormwater attenuation units

Specification data - Polypropylene (PP) tanks Enhanced data

Accessories

Accessories:

- Sediment control:

The layout can be configured to include a low flow and draindown facility, sediment forebay or a sediment tunnel to control the access of sediment into the storage tank.

Wrapping:

- Soakaway:

The tank would be wrapped in ACOTex geotextile.

- Attenuation tank; can be either:

  • Where water tightness is not critical, wrapped in ACOWrap geomembrane sealed with ACO double sided butyl mastic tape and wrapped in ACOTex Plus protection fleece.
  • Where 100% watertight is required, wrapped in a welded geomembrane supplied and installed by a specialist contractor. Consult the manufacturer for advice on suitable contractors.


27018 StormBrixx INSPECTION POINT.

27034 StormBrixx ACCESS CHAMBER.

27038 STORMBRIXX ACOTEX NON WOVEN GEOTEX ROLL.

27041 STORMBRIXX ACOTEX PLUS PROTEC FLEECE.

27042 STORMBRIXX ACOWRAP GEOMEMBRANE ROLL.

27056 StormBrixx 110 mm dia.

27057 StormBrixx 160 mm dia.

27058 StormBrixx 225 mm dia.

27059 StormBrixx 300 mm dia.

27101 StormBrixx 450 mm dia.

27102 StormBrixx 500 mm dia.

27105 StormBrixx 375 mm dia.

314038 StormBrixx SD RISER PIECE.

314045 StormBrixx INSP COVER & FRAME.

314055 StormBrixx VENTED ACCESS.

314056 StormBrixx ACCESS CHAMBER.

314057 StormBrixx vented cover.

314075 StormBrixx ACCESS PLATE.

Ø600 mm Load Class D400.

Type

314090

Dimensions

1200 x 600 x 494 mm.

L x W x D.

Colour

Black.
