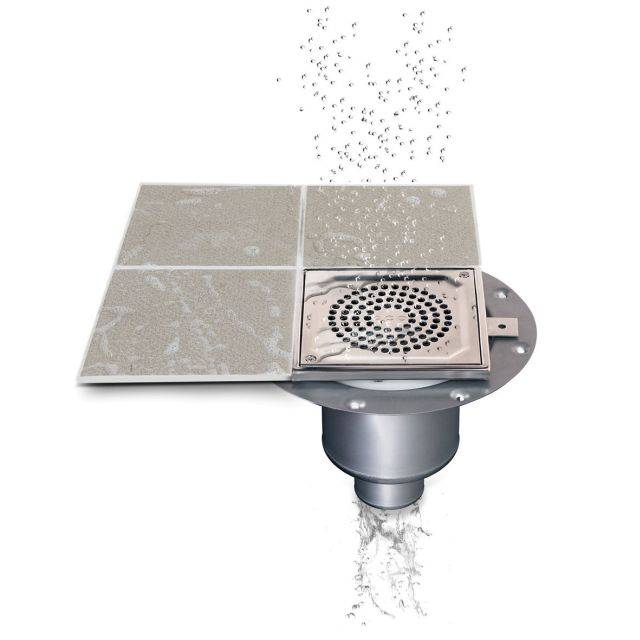

Stainless steel shower gully.
A range of stainless steel shower gullies with gratings suitable for point drainage in wet rooms, changing rooms and showers for tiled or sheet vinyl applications. Available with either 50 mm horizontal or vertical outlet or 110 mm vertical outlet. All gully bodies supplied complete with integral removable foul air trap and Multi-fit 50 mm/40 mm waste pipe connectors. Gully bodies supplied without grating.
Stainless Steel Grade 304 pickle passivated for optimum hygiene and corrosion resistance
R11/315 Floor drains
R11/5 Floor drains
Circular gully top for sheet vinyl floor
Square gully top for tiles/screed
Horizontal outlet spigot 50 mm
Vertical outlet spigot 50 mm
Vertical outlet spigot 110 mm
Perforated circular for vinyl
Slip resistant circular for vinyl
Arco for tiles
Classic for tiles
Linea for tiles
Mondo for tiles
Pop for tiles
Quadrato for tiles
Wave for tiles
Wellness for tiles
Perforated square for tiles
Perforated slip resistant for tiles
Grating bezel extension 53 mm
Weber.sys protect under tile water proofing system
Standard product features
Stainless Steel Grade 304 pickle passivated for optimum hygiene and corrosion resistance.
Mechanical clamp for either flexible sheet flooring or DPM.
Gratings to BS EN 1253 Load Class K3.
A range of products are available for use in solid ground floor, acoustic overlay floors, suspended timber or concrete decks with tiles, screed or flexible sheet flooring.
Body arrangement, size and grate options:
ACO 157 Fixed Height Gully
ACO 157 Telescopic Gully
ACO 218 Fixed Height Gully
ACO 218 Telescopic Gully
ACO 357 Fixed Height Gully
ACO Direct Couple Gullies
ACO Easyflow Bathroom Gully System
ACO EG150 Eurogullies For Cementitious/ Resin Screed And Tile Application
ACO EG150 Eurogullies For Cementitious/ Resin Screed and Tile Applications With Top For Mesh Grate
ACO EG150 Eurogullies For Damp Proof Membrane Bonding
