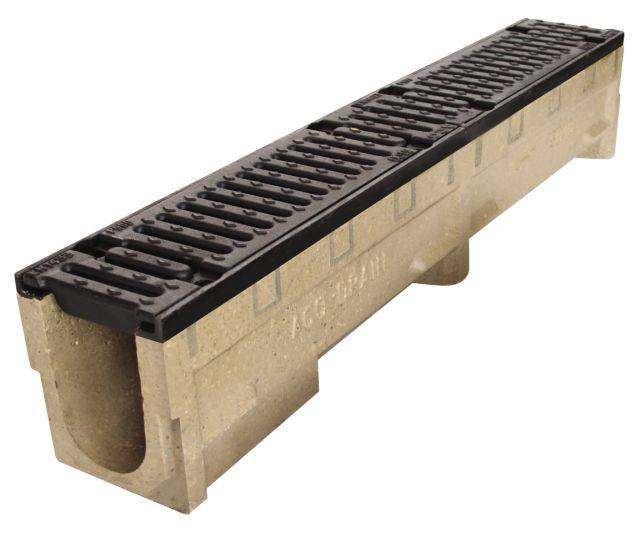

A 300 mm wide heavy duty recycled polymer concrete channel drainage system.
A heavy duty, precast polymer concrete channel drainage system with cast-in, ductile iron edge rails, heavy duty gratings with eight bolts per metre, sump unit, accessories and unions to sub surface drainage. Suitable for roads (slow moving traffic), airports, industrial, bus, coach and freight yards, military bases - especially suitable where heavy vehicles are turning - up to BS EN 1433 load class F900.
Q10/180 Drainage channel systems with gratings
Q10/30 Drainage channel system
Drain union, PVC-U
Foul air trap, PVC-U
110 mm diameter
160 mm diameter
200 mm diameter
Endcap, closing piece
S300 gully assembly comprising top, base, bucket and grating
Standard product features
Nominal bore 300 mm.
Type of fall:
Ductile iron slotted Load Class F900 – black.
