ACO Rodding Points
Description

A range of direct connection double sealed rodding points consisting of 304 stainless steel bodies, double EPDM seal and solid covers complete with lockings. Suitable for rodding access in changing rooms, showers, wet rooms, kitchens, retail, hospitals, abattoirs, chemical plants, swimming pools, food and drink processing plants and washdown areas.

General information

Material

[Material, Bodies to stainless steel grade 304 pickle passivated for optimum hygiene and corrosion resistance. Solid covers to stainless steel grade 304 and copper alloy. EPDM double seal]

-

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/390 Rodding eyes

Specification data - Floor gullies

Product Reference

Rodding Points

Body

ACO one-piece circular gully, 168 mm diameter

ACO one-piece square gully, 150 x 150 mm

ACO one-piece square gully, 171 x 171 mm

Cover

-

CoverMaterial

304 stainless steel

Copper alloy

Accessories

Not required

300 mm slab penetration unit

Odour trap

Standard product features

Load class:

  • Covers Load Class K3 to BS EN 1253.

Product Options

Material:

  • Bodies to stainless steel grade 304 pickle passivated for optimum hygiene and corrosion resistance. Solid covers to stainless steel grade 304 and copper alloy. EPDM double seal.

Floor finish:

  • A range of products are available for use in resin, screed, tiled or sheet vinyl floors.

Body arrangement, size and cover options:

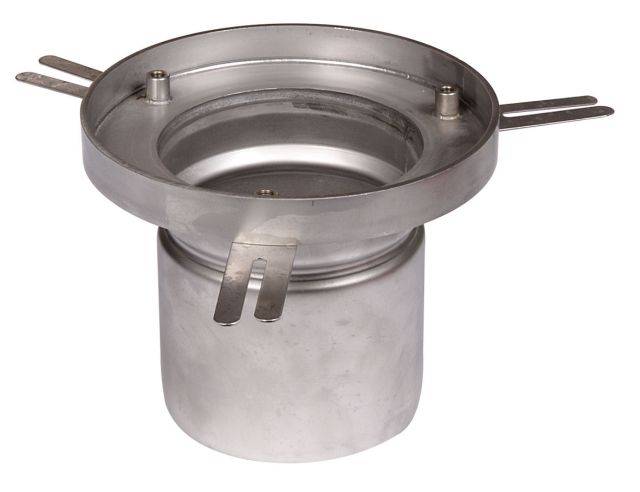

  • ACO one-piece circular gully top, 168 mm diameter with 110 mm diameter spigot outlet manufactured from 304 stainless steel for direct connection to underground drain systems. Supplied without odour trap. For screed applications. A choice of either 304 stainless steel or copper alloy circular solid cover and locks is available.
  • ACO one-piece square gully top, 150 x 150 mm with 110 mm diameter spigot outlet manufactured from 304 stainless steel for direct connection to underground drain systems. Supplied without odour trap. For tile and screed applications. A choice of either 304 stainless steel or copper alloy square solid cover and locks is available.
  • ACO one-piece square gully top, 171 x 171 mm with 110 mm diameter spigot outlet manufactured from 304 stainless steel complete with ACO Vinyl Seal® for direct connection to underground drain systems. Supplied without odour trap. For sheet vinyl applications. A choice of either 304 stainless steel or copper alloy square solid cover and locks is available.
