ACO MultiDrain M200D and M200DS
A 200 mm wide general purpose precast polymer concrete channel drainage system.

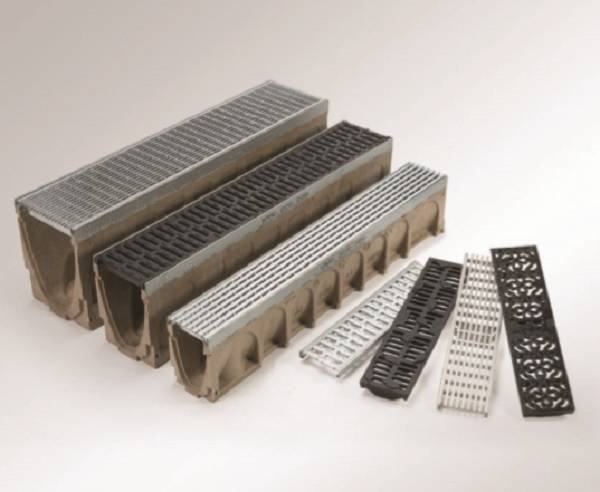

MultiDrain M200D and M200DS are general purpose precast polymer concrete channel drainage systems, with constant or stepped invert and protective cast-in galvanized steel or stainless steel top rail to channel edges with grating top. The system is for use in civic pedestrian areas, light use roadways, forecourts and car parks. It is not suitable for carriageways of public roads or motorways.
The system comes complete with a wide range of gratings, sump unit, accessories and unions for connection to sub-surface drainage.
Features:
- Choice of gratings and accessories for many applications.
- Drainlock grating fixing improves hydraulic capacity.
- Outlet options, gullies, sumps or channel knockouts.
- Patented UltraSTEEL channel edge rail for improved strength and durability.
- Simple and fast to install.
- Traditional drainage solution for a wide variety of applications.
- 100% recyclable.
- Certified to BS EN 1433: 2002, Load Class D400.
Features | Choice of gratings and accessories for many applications Drainlock grating fixing improves hydraulic capacity Outlet options, gullies, sumps or channel knockouts Patented UltraSTEEL channel edge rail for improved strength and durability Simple and fast to install |
Uniclass 2015 | |
CAWS | Q10/180 Drainage channel systems with gratings |
Product Reference | M200DChannel drain system with galvanized steel edge rail. M200DSChannel drain system with stainless steel edge rail. |
Fall | Constant invertStepped invert |
OverallDepth | 100 mm265 mm315 mm365 mm |
Grating | BrickSlot access unit galvanized steel single slot offsetBrickSlot access unit stainless steel single slot offsetBrickSlot top galvanized steel single slot offsetBrickSlot top stainless steel single slot offset‘Heelguard™’ ductile iron‘Heelguard™’ Intercept ductile iron‘Heelguard™’ Mesh galvanized steel‘Heelguard™’ Mesh stainless steelIntercept-Profile galvanized steelIntercept-Profile stainless steelIntercept ductile ironSlotted ductile ironSolid cover ductile iron |
Accessories | 110 mm Drain union, PVC-U160 mm Drain union, PVC-U200 mm Drain union, PVC-U160 mm Foul air trap, PVC-U160 mm Roddable foul air trap, PVC-UStep connectorsSump unit with sediment bucketUniversal Endcap |
Standard product features | Nominal bore size: 200 mm. |
Product Options | Grating: - Load Class B125:
- Load Class C250:
- Load Class D400:
|
