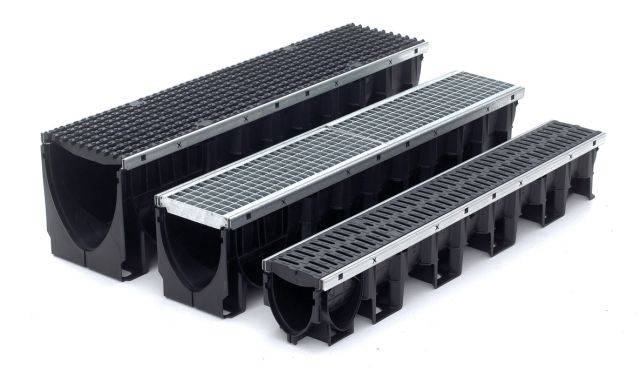

A 150 mm wide general purpose recycled polypropylene channel drainage system.
MultiDrain M150PPD is suitable for use in civic pedestrian areas, light use roadways, forecourts and car parks. It is not suitable for carriageways of public roads or motorways. The system comes complete with a wide range of gratings including BrickSlot tops, sump unit, accessories and unions for connection to sub-surface drainage.
Features:
Features | 100% recyclable Channel design improves flow velocity, promotes self-cleansing Choice of gratings and accessories Choice of outlet options, gullies, sumps or channel knockouts Easily cut to 500 mm lengths |
Uniclass 2015 | |
CAWS | Q10/180 Drainage channel systems with gratings |
Product Reference | MultiDrain M150PPD |
Grating | BrickSlot galvanized steel access unit single slot offsetBrickSlot galvanized steel top single slot offsetDuctile iron solid cover‘Heelguard™’ ductile iron‘Heelguard™’ Intercept ductile iron‘Heelguard™’ Mesh galvanized steelIntercept-Profile galvanised steelIntercept ductile ironSlotted ductile iron |
Accessories | 110 mm foul air trap160 mm foul air trap160 mm vertical outlet connectorSump unit with sediment bucketIncluding 160 mm vertical outlet connector. Universal EndcapUniversal Gully assembly comprising top, base, bucket and grating |
Standard product features | Fall: Constant invert. Nominal bore size: 150 mm. Depth: 210 mm. |
Product Options | Grating: - Load Class B125:
- Load class C250 (Cars and light vans):
- Load class D400 (Cars, vans and HGV's, not suitable for carriageways or public roads):
|
