ACO Micro Floor Gully
Description

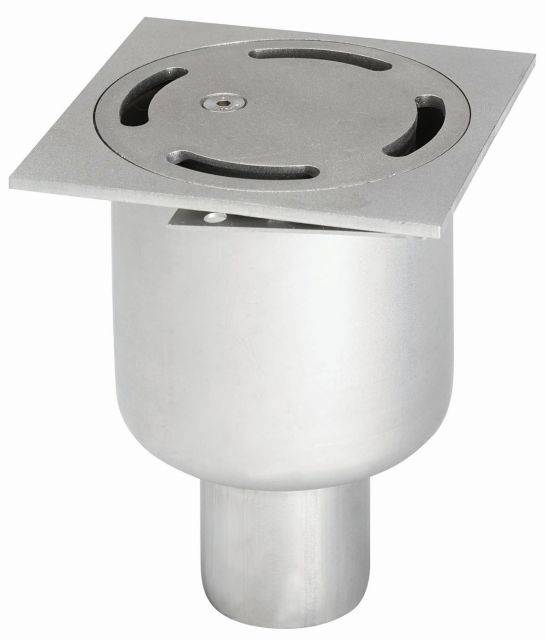

The Micro Floor Gully is a light duty, compact trapped drain manufactured from Grade 304 stainless steel. It is designed to provide discreet drainage for washrooms, toilet areas and plant rooms. An invert depth of just 76 mm makes it ideal for use in areas where depth is restricted or for refurbishment work where excavation can be kept at a minimum.

General information

Features

The drain is supplied with a circular grating located in a 100 mm square top

The foul air trap is an integral part of the grating and allows full rodding access to the drainage pipework (eradicating the need for additional rodding eyes)

Suitable for use with cementitious/ resin screed and tile applications

Complete with fixing tangs with earth wire connections

50 mm water seal depth meets requirements of BS EN 1253

Show more

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

Micro Floor Gully

GullyType

MG100FSV/40 Gully

No locking.

MGL100FSV/40 Gully

Locked.

Standard product features

Features:

  • The drain is supplied with a circular grating located in a 100 mm square top.
  • The foul air trap is an integral part of the grating and allows full rodding access to the drainage pipework (eradicating the need for additional rodding eyes).
  • Suitable for use with cementitious/ resin screed and tile applications.
  • Complete with fixing tangs with earth wire connections.
  • 50 mm water seal depth meets requirements of BS EN 1253.
  • The drain has a vertical spigot outlet allowing easy connection to existing pipework with either push fit or compression fittings.
  • FACTA load class: A.
