ACO KerbDrain SP480

ACO KerbDrain SP480

Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

ACO Technologies plc

A recycled polymer concrete combined kerb drainage system, 480 mm deep, splayed profile.

Jump to:
+44 (0)1462 816666

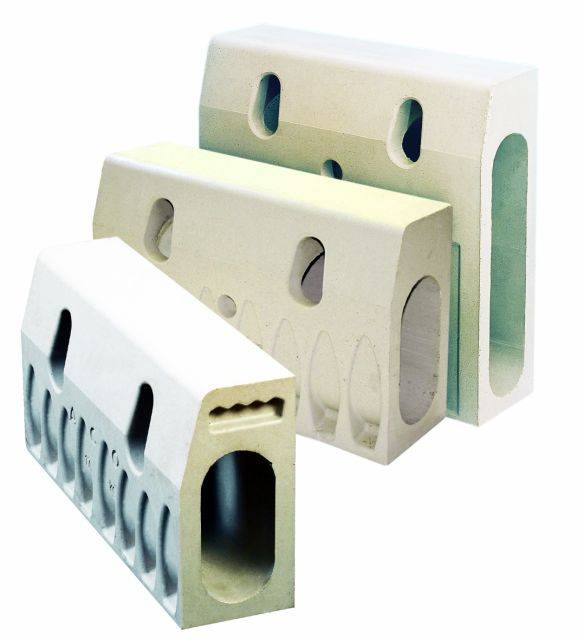

A one-piece, lightweight polymer concrete combined kerb drainage unit for carriageways, roundabouts, local road schemes, car parking and many other applications. ACO KerbDrain conforms to BS EN 1433, load class D400, for kerbside installations. KerbDrain is Kitemarked and complies with the Specification for Highway Works clause 516.

Splayed kerb units are only available in 500 mm lengths and are intended for a maximum kerb upstand of 100 mm.

General information

Uniclass 2015

Pr_25_93_60_12 Combined drainage and kerb unitsPrimary


Q10/190 Carriageway kerb and drainage channel systems

Specification data - Combined drainage and kerb units

Product Reference

KerbDrain SP480

Kerb upstand (maximum)

100 mm




Drain union, PVC-U

Foul air trap, PVC-U


110 mm diameter

160 mm diameter

200 mm diameter

272 mm diameter

Gully units



Top and shallow base assembly

Top and deep base assembly

Top and roddable deep base assembly

Top and road gully connector


Top assembly only

Gully bucket


Endcap, closing

Endcap, LH inlet/ outlet

Endcap, RH inlet/ outlet

Standard product features


500 mm.

Third party certifications
  • Kitemark
