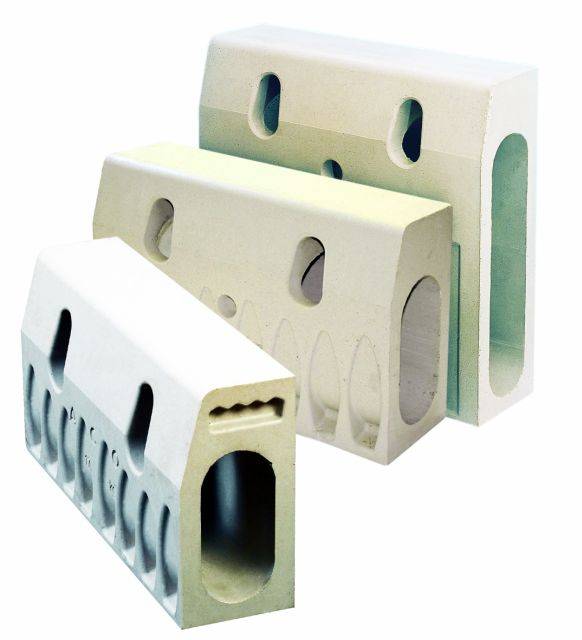

A recycled polymer concrete combined kerb drainage system, 305 mm deep, half battered HB1 profile.
A one-piece, lightweight polymer concrete combined kerb/ drainage unit for carriageways, roundabouts, local road schemes, car parking and many other applications. ACO KerbDrain conforms to BS EN 1433 load class D400 for kerbside installations.
KerbDrain is Kitemarked and complies with Specification for Highway Works clause 516.
Q10/190 Carriageway kerb and drainage channel systems
Kerb upstand (maximum)
Top and shallow base assembly
Top and deep base assembly
Top and roddable deep base assembly
Top and road gully connector
Top assembly only
Bullnosed bus stop kerb
Bullnosed bus stop kerb transition LH
Bullnosed bus stop kerb transition RH
Centre stone drop kerb assembly, flush drainable, straight
Centre stone unit
Centre stone unit, flush drainable, 6 m external radius
Centre stone unit, flush drainable, straight
Centre stone unit, perforated, straight
Drop kerb assembly, LH, 6 m external radius
Drop kerb assembly, RH, 6 m external radius
Drop kerb unit, LH
Drop kerb unit, RH
Endcap, LH inlet/ outlet
Endcap, RH inlet/ outlet
External radius units, 1.8 m
External radius units, 6 m
Internal angle, 90°
Standard product features
Standard kerb units are available in 1000, 500 and 250 mm lengths.
