ACO Grease Separators
Description

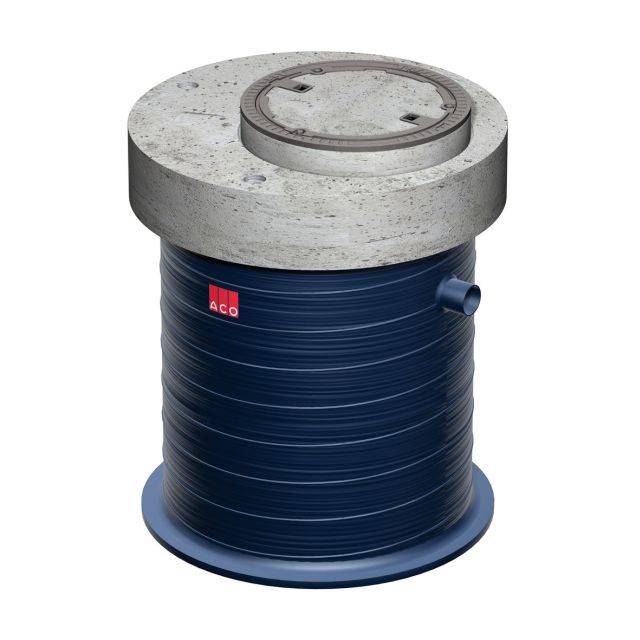

A range of BS EN 1825-1 polyethylene gravity grease separators for below ground applications. Supplied complete with 600 mm diameter clear opening access cover Load Class D400 to BS EN 124.

General information

Uniclass 2015

Pr_65_52_25_06 Below-ground grease traps and convertersPrimary

CAWS

R12/419 Grease traps and converters

Specification data - Below-ground grease traps and converters

Product Reference

LIPUTEC NS1 Grease separator

Grease capacity 180 litres; sludge capacity 100 litres; inlet invert range 743–1000 mm; maximum flow rate 1 L/s; connections 110 mm.

LIPUTEC NS2 Grease separator

Grease capacity 180 litres; sludge capacity 200 litres; inlet invert range 743–1000 mm; maximum flow rate 2 L/s; connections 110 mm.

LIPUTEC NS4 Grease separator

Grease capacity 210 litres; sludge capacity 400 litres; inlet invert range 798–1000 mm; maximum flow rate 4 L/s; connections 160 mm.

LIPUTEC NS7 Grease separator

Grease capacity 290 litres; sludge capacity 700 litres; inlet invert range 858–1000 mm; maximum flow rate 7 L/s; connections 160 mm.

LIPUTEC NS10 Grease separator

Grease capacity 400 litres; sludge capacity 1000 litres; inlet invert range 740–1000 mm; maximum flow rate 10 L/s; connections 160 mm.

ECO-FPI NS1 Grease separator

Grease capacity 120 litres; sludge capacity 100 litres; inlet invert 695 mm; maximum flow rate 1 L/s; connections 110 mm.

ECO-FPI NS2 Grease separator

Grease capacity 120 litres; sludge capacity 200 litres; inlet invert 570 mm; maximum flow rate 2 L/s; connections 110 mm.

ECO-FPI NS3 Grease separator

Grease capacity 120 litres; sludge capacity 300 litres; inlet invert 685 mm; maximum flow rate 3 L/s; connections 110 mm.

ECO-FPI NS4 Grease separator

Grease capacity 160 litres; sludge capacity 400 litres; inlet invert 560 mm; maximum flow rate 4 L/s; connections 110 mm.

ECO-FPI NS7 Grease separator

Grease capacity 400 litres; sludge capacity 700 litres; inlet invert 650 mm; maximum flow rate 7 L/s; connections 160 mm.

ECO-FPI NS10 Grease separator

Grease capacity 400 litres; sludge capacity 1000 litres; inlet invert 683 mm; maximum flow rate 10 L/s; connections 160 mm.

Access cover

Manufacturer's standard

Raising piece

Not required

ECO-FPI 60 mm

ECO-FPI 80 mm

ECO-FPI 100 mm

ECO-FPI 250 mm, 500 mm and 1000 mm matched to separator

Raising piece for models NS1, 2, 3 and 4 and differs from that for NS7 and NS10.

ECO-FPI 250 mm and 500 mm

Raising piece for models NS7 and 10.

Contractor's choice

Accessories

None

LIPUTEC Access cover lifting key

ECO-FPI High water table baseplate reinforcement

ECO-FPI Direct suction pipe

Standard product features

Covers and frames:

Product includes airtight cover and frame to BS EN 124, Loading class D400.

Third party certifications
  • BS EN 1825-1
