Description

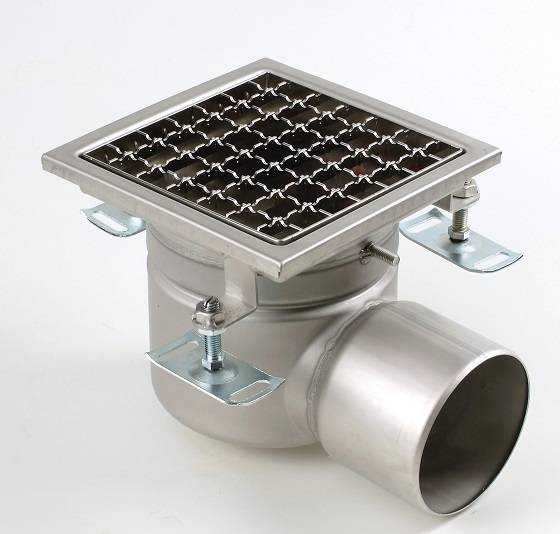

Fixed height, one-piece gullies, designed to be used in commercial applications with concrete, resin or tiled floors. Manufactured from 2 and 3 mm thick 1.4301 or 1.4401 grade austenitic stainless steel to BS EN 10088, pickle passivated to ensure corrosion free joints.

Available with 160 or 200 mm diameter vertical or horizontal outlet and supplied complete with one-piece foul air trap which can be removed to give rodding access to the connecting pipework.

Gratings available in a range of load classes, patterns, finishes and stainless steel grades. Consult ACO Technologies for details.

Features:

  • Height adjustable levelling feet make installation quick and easy.
  • Chamfered spigot outlets allow easy push fit connection onto existing drainage pipes.
  • Electrical earthing point as standard on every gully body.
  • Bowl-shaped bodies deter silt and debris collecting in corners, making cleaning easy.
  • Optional basket collects debris effectively.

General information

Features

Height adjustable levelling feet make installation quick and easy

Chamfered spigot outlets allow easy push fit connection onto existing drainage pipes

Electrical earthing point as standard on every gully body

Bowl-shaped bodies deter silt and debris collecting in corners, making cleaning easy

Optional basket collects debris effectively

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary
Specification data - Floor gullies

Product Reference

05766, 160 mm vertical outlet gully

1.4301 grade stainless steel. 10.0 L/s flow rate.

15766, 160 mm vertical outlet gully

1.4401 grade stainless steel. 10.0 L/s flow rate.

05768, 200 mm vertical outlet gully

1.4301 grade stainless steel. 11.0 L/s flow rate.

15768, 200 mm vertical outlet gully

1.4401 grade stainless steel. 11.0 L/s flow rate.

05767, 160 mm horizontal outlet gully

1.4301 grade stainless steel. 8.5 L/s flow rate.

15767, 160 mm horizontal outlet gully

1.4401 grade stainless steel. 8.5 L/s flow rate.

05769, 200 mm horizontal outlet gully

1.4301 grade stainless steel. 9.5 L/s flow rate.

15769, 200 mm horizontal outlet gully

1.4401 grade stainless steel. 9.5 L/s flow rate.

Accessories

None

05790, silt basket, vertical outlet gully

1.4301 grade stainless steel.

15790, silt basket, vertical outlet gully

1.4401 grade stainless steel.

05791, silt basket, horizontal outlet gully

1.4301 grade stainless steel.

15791, silt basket, horizontal outlet gully

1.4401 grade stainless steel.

Standard product features

Top:

400 x 400 mm square.
