Description

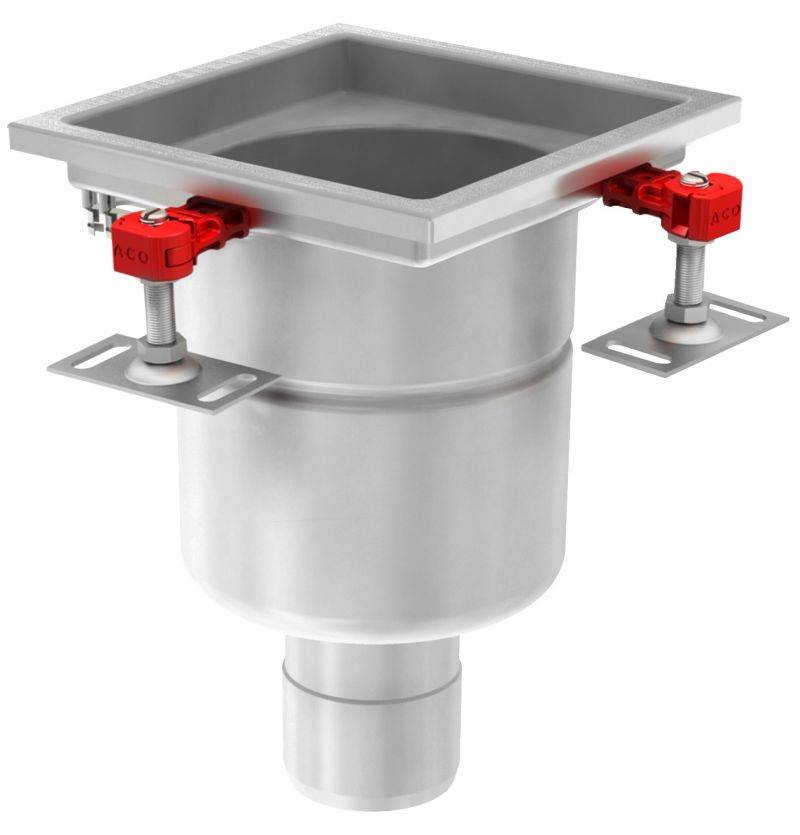

Fixed height gullies for commercial applications where hygiene, durability and performance requirements are paramount. Convenient, free-standing units suitable for cementitious, resin or tiled floors. Available in a number of versions featuring different flow rates, grating designs, sizes and spigot outlet diameters to suit various applications and to match the floor construction and depth.

The hygienic design includes large radii-formed contours, deep-drawn components and minimal welds to minimise crevices and bacteria traps in accordance with BS EN 1672 and BS EN ISO 14159.

Benefits:

  • Fully compliant with BS EN 1253.
  • Available in 1.4301 or 1.4401 grade stainless steel.
  • Fully removable and easily cleaned stainless steel foul air trap (FAT).
  • Removable hygienic and corrosion resistant Nitrile FAT support.
  • Flow rates: 2.8–3.50 L/s.
  • Dry sump design ensures no standing waste water in gully base.

General information

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary
Specification data - Floor gullies

Product Reference

Gully 157 Fixed Height, 408003

Vertical outlet, 200 x 200 mm top, 1.4301 grade stainless steel.

Gully 157 Fixed Height, 408103

Vertical outlet, 200 x 200 mm top, 1.4401 grade stainless steel.

Gully 157 Fixed Height, 408019

Vertical outlet, 250 x 250 mm top, 1.4301 grade stainless steel.

Gully 157 Fixed Height, 408119

Vertical outlet, 250 x 250 mm top, 1.4401 grade stainless steel.

Gully 157 Fixed Height, 408011

Horizontal outlet, 200 x 200 mm top, 1.4301 grade stainless steel.

Gully 157 Fixed Height, 408111

Horizontal outlet, 200 x 200 mm top, 1.4401 grade stainless steel.

Gully 157 Fixed Height, 408027

Horizontal outlet, 250 x 250 mm top, 1.4301 grade stainless steel.

Gully 157 Fixed Height, 408127

Horizontal outlet, 250 x 250 mm top, 1.4401 grade stainless steel.

Accessories

408202 Silt basket

Vertical outlet, 1.4301 grade stainless steel.

408212 Silt basket

Vertical outlet, 1.4401 grade stainless steel.

408203 Silt basket

Horizontal outlet, 1.4301 grade stainless steel.

408203 Silt basket

Horizontal outlet, 1.4301 grade stainless steel.

408200 Foul air trap

1.4301 grade stainless steel.

408210 Foul air trap

1.4401 grade stainless steel.

408201 Foul air trap support

Nitrile rubber.

Standard product features

Gully top:

Frame size: 250 x 250 mm.
