Access covers
Verified by manufacturer 6 months ago
792.030.030 Access cover (300 x 300 mm)
792.030.030 Access cover (300 x 300 mm)
A range of stainless steel recessed access covers.
Application
Suitable for vehicular and pedestrian areas
Description

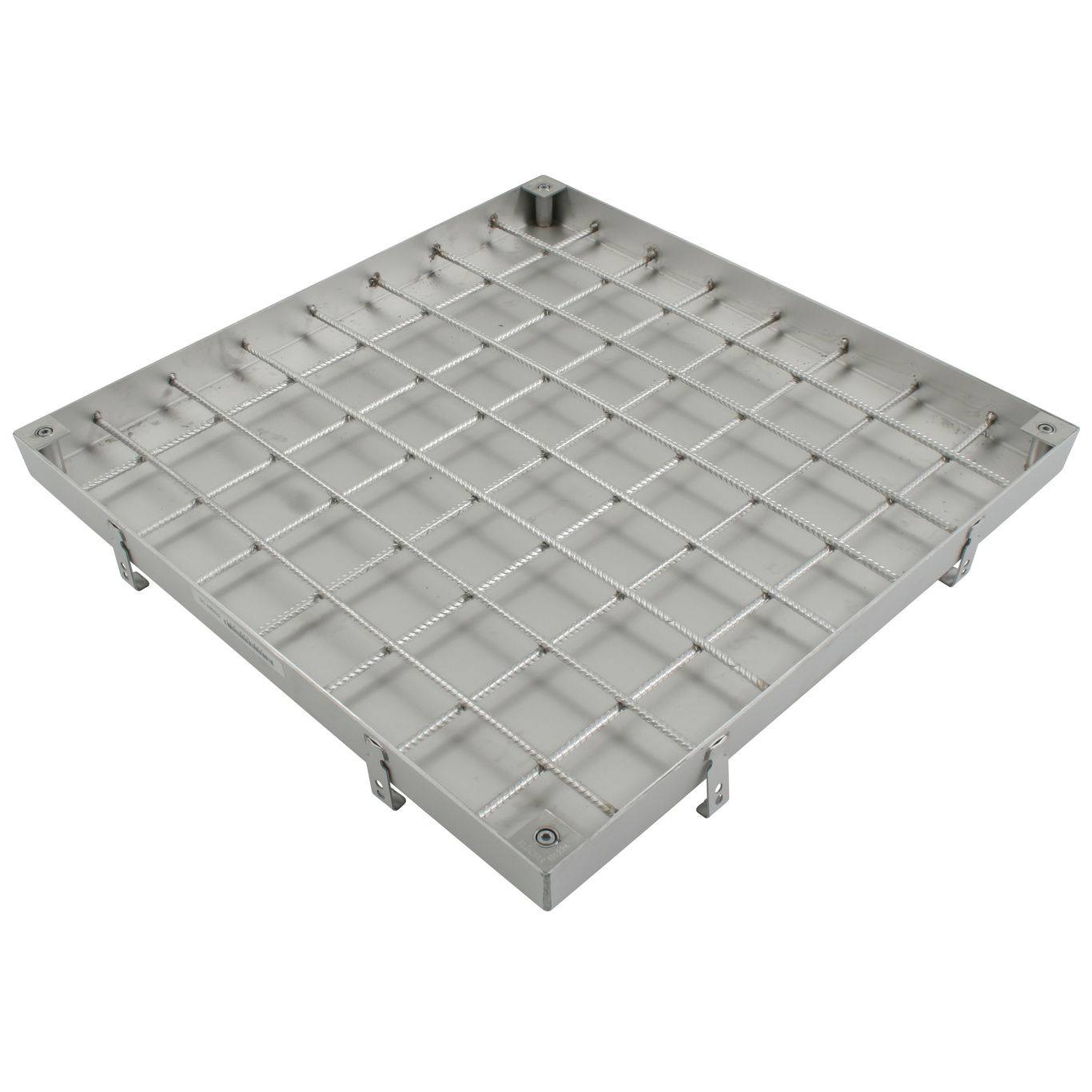

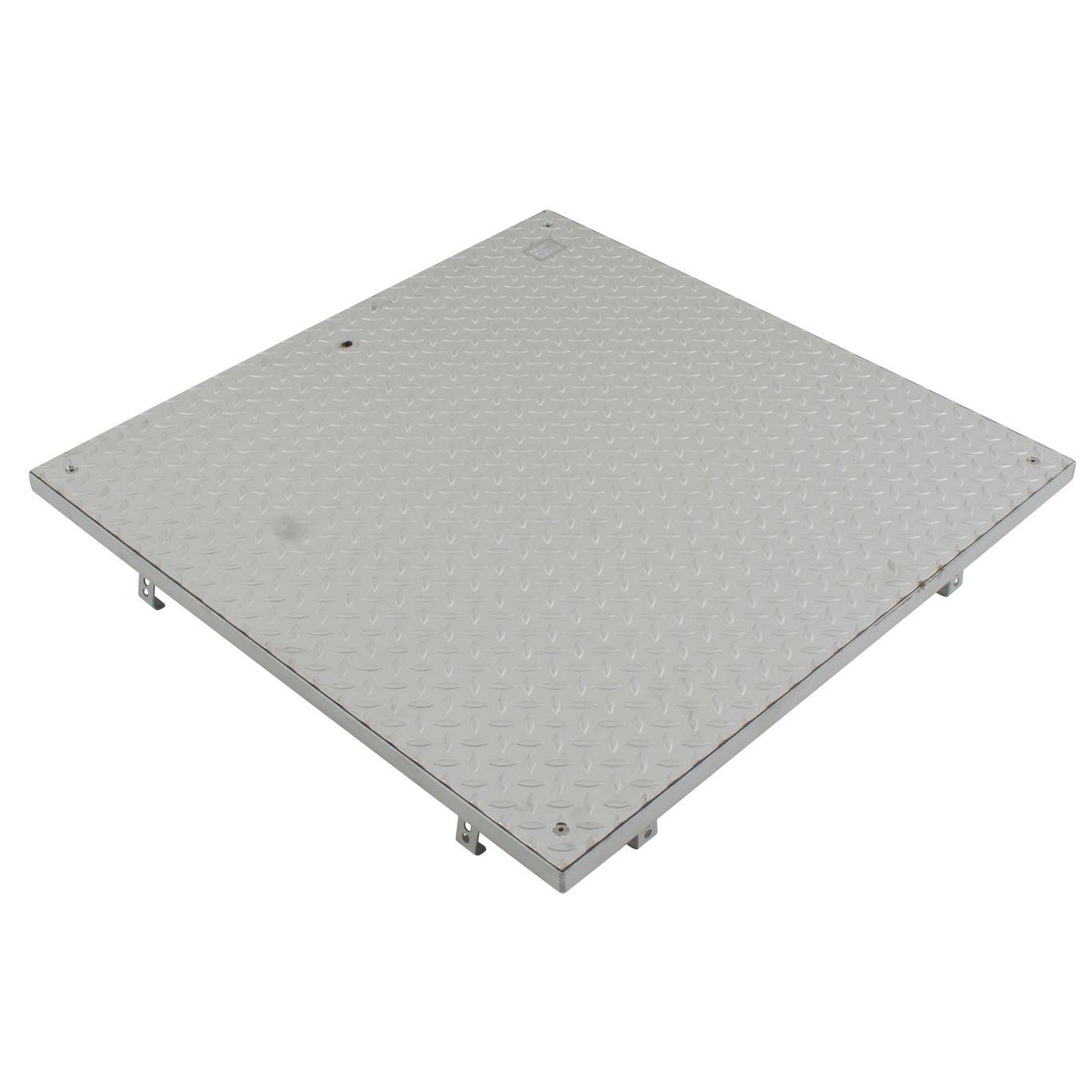

A range of stainless steel access covers available with lattice, for adding concrete or similar as a cover, or with tear plates.
Features and benefits:
- AISI 304/EN 1.4301 grade stainless steel.
- AISI 316/EN 1.4404 grade stainless steel.
- PL - Hygienic Certificate.
General information
Color | Grey |
Material | Stainless steel |
Shape | Square |
Length | 300 mm 400 mm 600 mm 800 mm 1000 mm |
Width | 300 mm 400 mm 600 mm 800 mm 1000 mm |
Height | 71 mm 105 mm |
Uniclass | |
CAWS | R12/79 Access covers and frames P31/370 Access covers/ gratings for P30/301 Access covers, manhole tops and frames R12/471 Access covers and frames |
Specification data - Access covers, gratings and frames
Standards | To BS EN 124-1 and BS EN 124-3. |
Configuration | Lift out recessed covers. |
Finish | Floor finish infill.Guidance for specification option: Concrete or similar can be added as a cover, insert requirements. |
Clear opening (minimum) | 300 x 300 mm. |
Load class (minimum) | B 125. |
AccessCoverMaterial | AISI 304/ EN 1.4301 stainless steel. AISI 316/EN 1.4404 grade stainless steel. |
