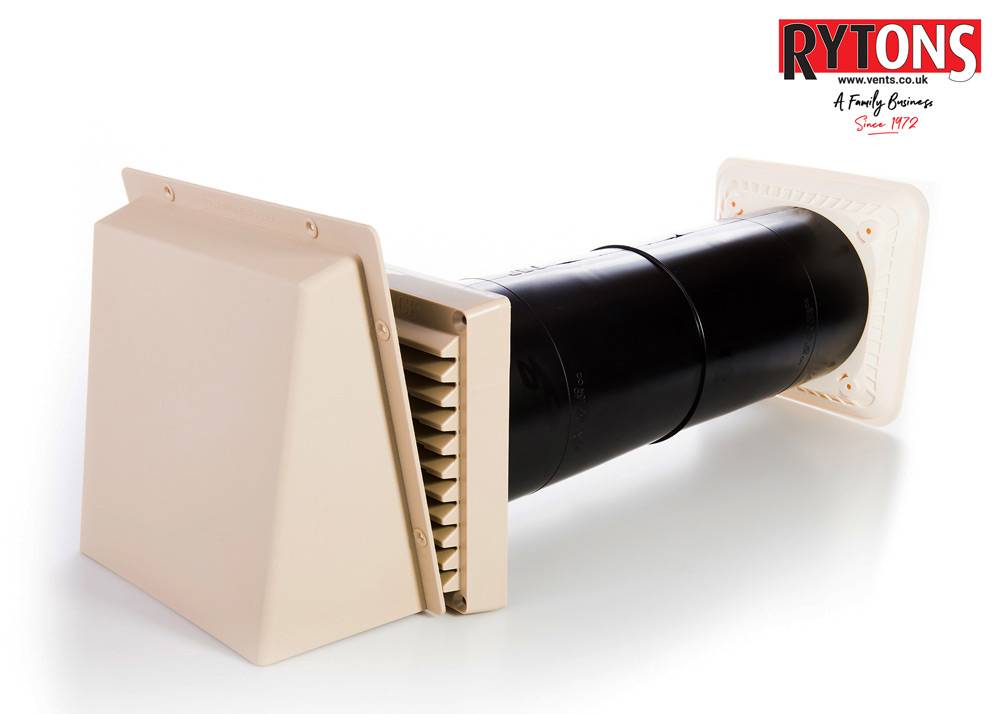

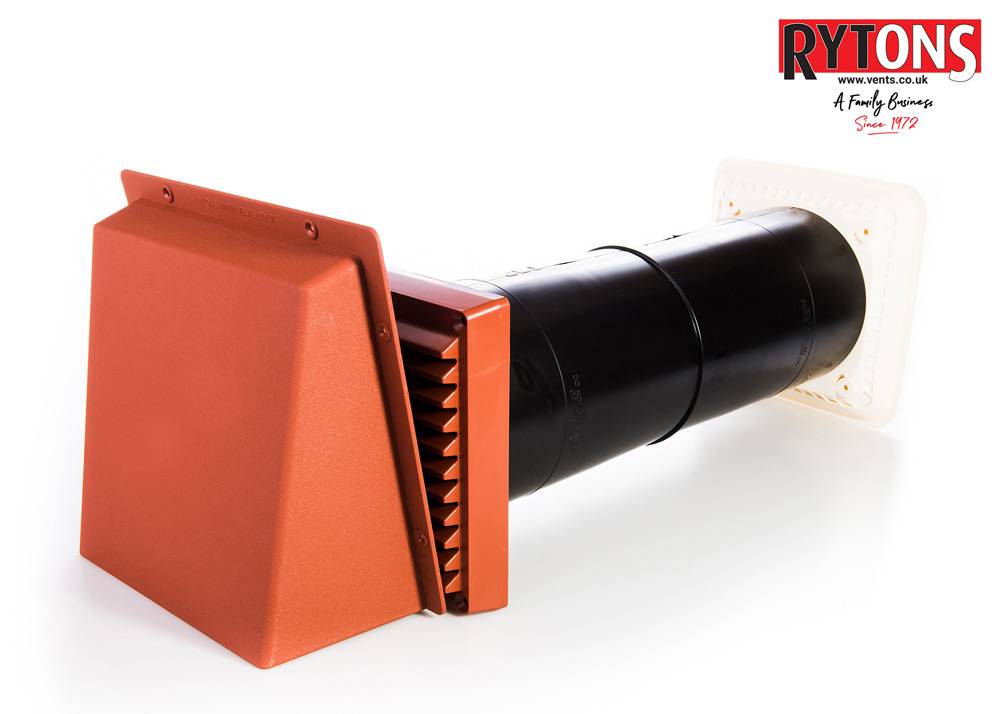

AC10HPCWL - Rytons Cowled Controllable LookRyt® AirCore®

Name: AC10HPCWL - Rytons Cowled Controllable LookRyt® AirCore®
Brand: Rytons Building Products Ltd
SKU: 2hJHwsVCUYtJqDN76yg2eZ

Verified by manufacturer 4 months ago

AC10HPBCWL - Buff/sand

Plastic retro-fitted core ventilator with external cowl.

Jump to:

Application

Through-wall background room ventilator. Allows fresh outside air into the room to disperse moisture, odours and other airborne pollutants.
As a plastic component this item is not suitable for use within the external walls of high-rise buildings requiring non-combustible materials.

Plastic, retro-fitted core ventilator with external cowl for background room ventilation, compliant with BS 5250.

Features and benefits:

External cowl protects against excessive weather conditions and alleviates air blasts through the cavity.
Unique draught reducing LookRyt® panel disperses air evenly into the room for improved comfort.
LookRyt® panel manually adjusted with an easy push/pull or tilt action allowing ventilation to be controlled as required.
LookRyt® panel can be painted or wallpapered to match room décor for a discreet appearance.
External water baffle prevents transfer of water across the cavity.
Interlocking components aid correct positioning, alignment and easy installation.
Cowl and external grille UV stabilized to slow down the effects of sunlight.
Screws provided to secure the internal panel.
BRE verified equivalent area.
Made in Britain.

Components:

Color	Orange White Beige
Material	Plastic Guidance for specification option: High impact polystyrene.
Length	358 mm Guidance for specification option: Tube: 127mm Dia. x 358mm L.
Width	172 mm Guidance for specification option: LookRyt panel: 172mm L x 172mm H. External grille: 166mm L x 160mm H.
Height	172 mm Guidance for specification option: LookRyt panel: 172mm L x 172mm H. External grille: 166mm L x 160mm H.

Uniclass	Pr_30_59_96_92 Ventilation ductsPrimary
CAWS	F30/17 Ventilation ducts in external walling F30/171 Ventilation ducts in external walling U90/340 Through wall ventilator ducts U90/340 Through wall ventilator ducts
