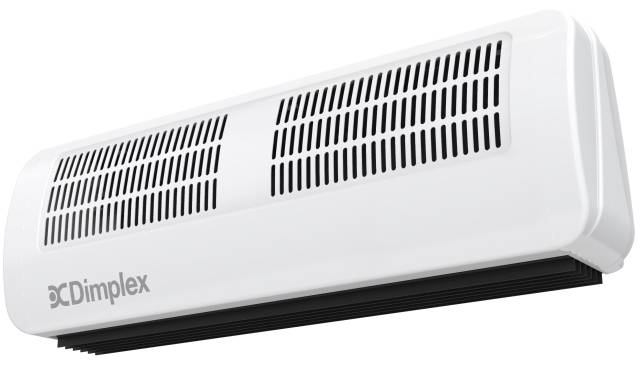

AC Over Door Heaters Remote

Description

The AC range of over-door heaters are designed to provide a heat curtain over doorways. They are not intended to provide a complete solution to space heating and thermal comfort. The remote range provide increased convenience with functionality via the Bluetooth remote supplied as a standard.

Features and benefits:

  • Designed for localized heating around open doors.
  • Adjustable airflow direction.
  • Advanced controls via Bluetooth remote.
  • 6 kW model designed for double doorways.
  • Adjustable SP range (7–32°C).
  • User programmable temperature with a seven-day timer.
  • Energy saving Adaptive Start technology.
  • Complies with Lot 20 of ERP Directive.
  • CE marked and BEAB approved.

Two-year warranty.

General information

Uniclass 2015

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

Specification data - Room heaters

Product Reference

AC Over Door Heaters Remote

Type

AC3RE

605 x 200 x 135 mm (l x h x d), 1.5/ 3.0 kW heat output, 6.2 m/s air velocity, 50.5 dBA, 5.3 kg.

AC45RE

605 x 200 x 135 mm (l x h x d). 2.25/ 4.5 kW heat output, 5.5 m/s air velocity, 52 dBA, 5.3 kg.

AC6RE

905 x 200 x 135 mm (l x h x d). 3.0/ 6.0 kW heat output, 8.3 m/s air velocity, 57 dBA, 7.4 kg.

Standard product features

Colour/ Finish:

Powder coated, finished in Traffic White (RAL 9016).

Technical characteristics:

  • Construction: Pressed steel case.
  • Controls: Digitally controlled, accurate electronic thermostat. Manual, runback, off.
  • Controller UI: Off-board control only. Requires pairing with Bluetooth remote or Remo Smartphone app.
  • Voltage: 230 V.
  • Ingress protection (IP) rating: IP21.
  • Safety: Two electrical hold reset cut-outs.
