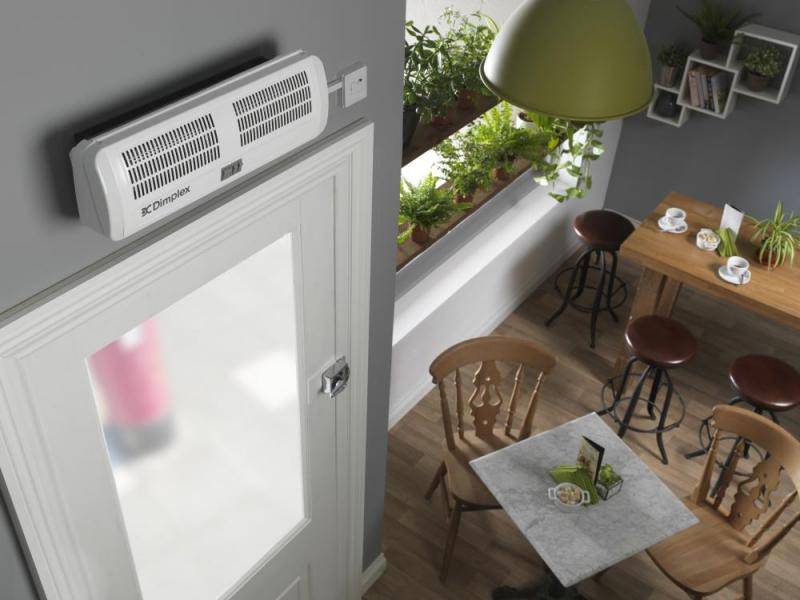

AC Over Door Heater Range
Verified by manufacturer 10 months ago
AC3N
AC3N
Over door heaters.
Application
- Designed for localised heating around open doors.
- Suitable for the entrance to shops, offices and almost any small doorway.
- The AC over door heaters are also suitable for any situation where a high-level fan heater is required.
Description
Dimplex AC over-door heaters provide multi-directional powerful and effective heating above the entrance to shops, offices and almost any small doorway.
When fitted above an open door, the warm airflow encourages trade by allowing doors and entrances to remain 'open for business' in many commercial applications
The AC range of over-door heaters are designed to provide a "warm welcome" over doorways. They are not intended to provide a complete solution to space heating and thermal comfort.
Features and benefits:
- Designed for localized heating around open doors.
- Can be used as a high level fan heater.
- Adjustable airflow direction.
- Full heat, half heat and fan only settings.
- Choice of 3 kW, 3 kW remote, 4.5 kW and 6 kW.
- All 3 kW and 4.5 kW models designed for single doors.
- 6 kW model designed for double doorways.
- Optimum mounting height: 1.8—2.3 m.
- CE and BEAB approved.
- Supplied with a two-year warranty.
General information
Color | White |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 605 mm 905 mm |
Width | 135 mm |
Height | 200 mm |
Warranty description | One year |
Uniclass | |
CAWS | V90/590 Equipment V90/590 Equipment |
Specification data - Air curtains
Third party certification | CE and BEAB approved. |
Heating method | Electric. |
Arrangement | Horizontal. |
Output | 1.5/3.0 kW. |
Mounting height | Manufacturer guidanceOptimum mounting height 1.8–2.3 m. Insert requirements or refer to a drawing. |
Casing finish | Powder-coated. |
Accessories | Wall bracket. |
Controls | On-board controls. Guidance for specification option: Control functions: On/off, two heat settings (half heat and full heat). |
Heating element | Wire stitched element. |
Safety features | Two electrical hold reset cut-outs. |
Ingress protection (IP) rating | IP21. |
Sustainability data
Material | Steel |
Literature
AC Range Spec Sheet
