ABG Webwall is a flexible retaining wall system using geocell technology to achieve a steep (up to 70˚) vegetated finish. Both unreinforced (gravity) walls and reinforced walls can be constructed.
A flexible retaining wall system that utilises geocell technology. Using Webwall, green faced vegetated walls with near vertical faces can be built quickly and easily.
Cost savings over traditional retaining wall constructions, along with a green vegetated finish, can be achieved by using the ABG Webwall system. It is ideal in situations with weak foundation soils and often allows site won materials to be used as fill, thereby saving on the cost of removal and also the cost of importing structural fills.

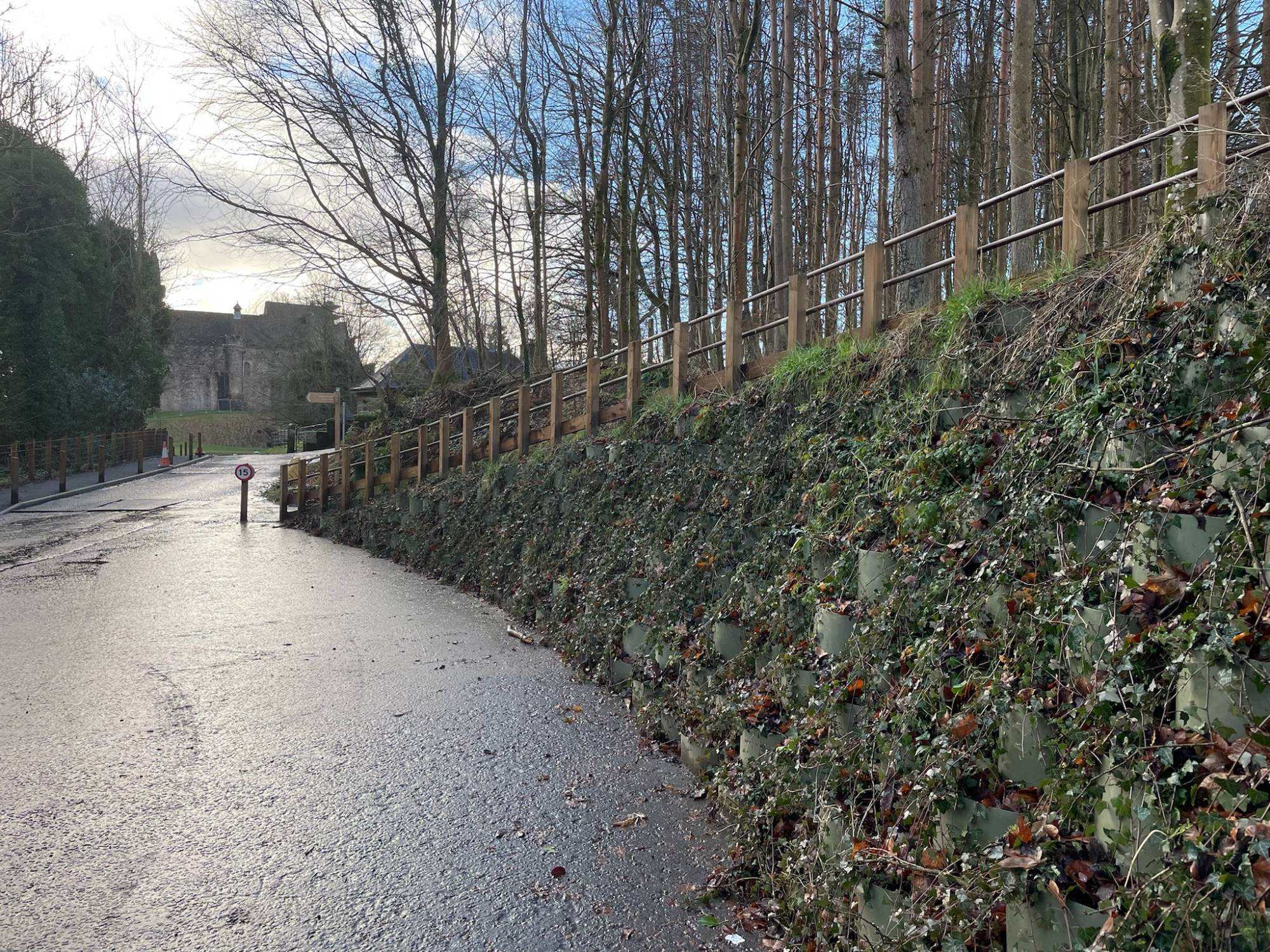

The retaining wall structure is formed from horizontal layers of ABG Webwall filled and placed one on top of another. The front face of the structure can be filled with top soil and then vegetated through seeding or planting to create a vegetated finish. Local biodiversity and planning requirements can be incorporated within the planting schedule/ scheme.
It offers many cost advantages over other retaining wall systems including lower labour costs, cheaper materials and reduced maintenance.
Features and benefits:
Front face to be planted.

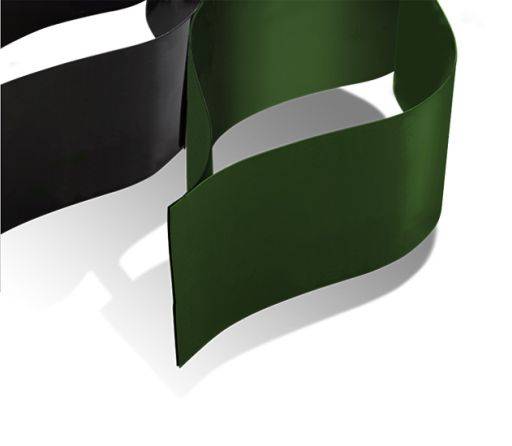

High density polyethylene (HDPE)
Warranty on application
Cell dimensions (expanded)
Cell size (nominal)
Effective cell diameter: 500 mm.
Maximum wall height: 10 m - with geogrid reinforcement.
(with plant cover)
Maximum slope angle
(with vegetated face)
