ABG Roofdrain 25mm Drainage Geocomposite

Verified by manufacturer 5 months ago

ABG

Combined drainage/ reservoir board with integrated filtration and protection geotextiles.

Jump to:
+44 (0)1484 852096 Website

Application

Green roof and landscaping drainage applications.

Description

ABG Roofdrain 25mm provides drainage for green roof and landscaping applications.

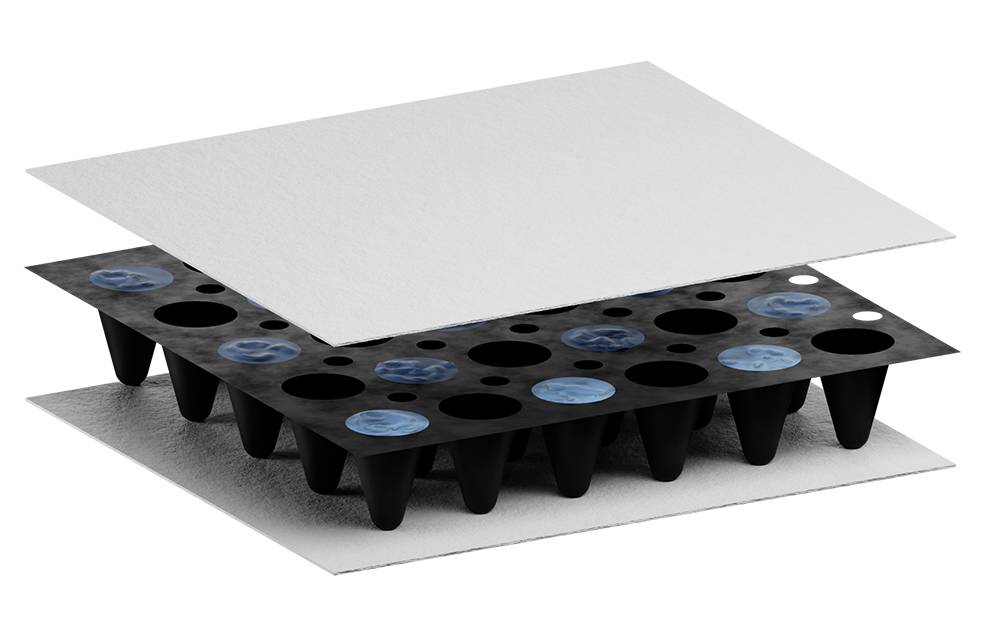

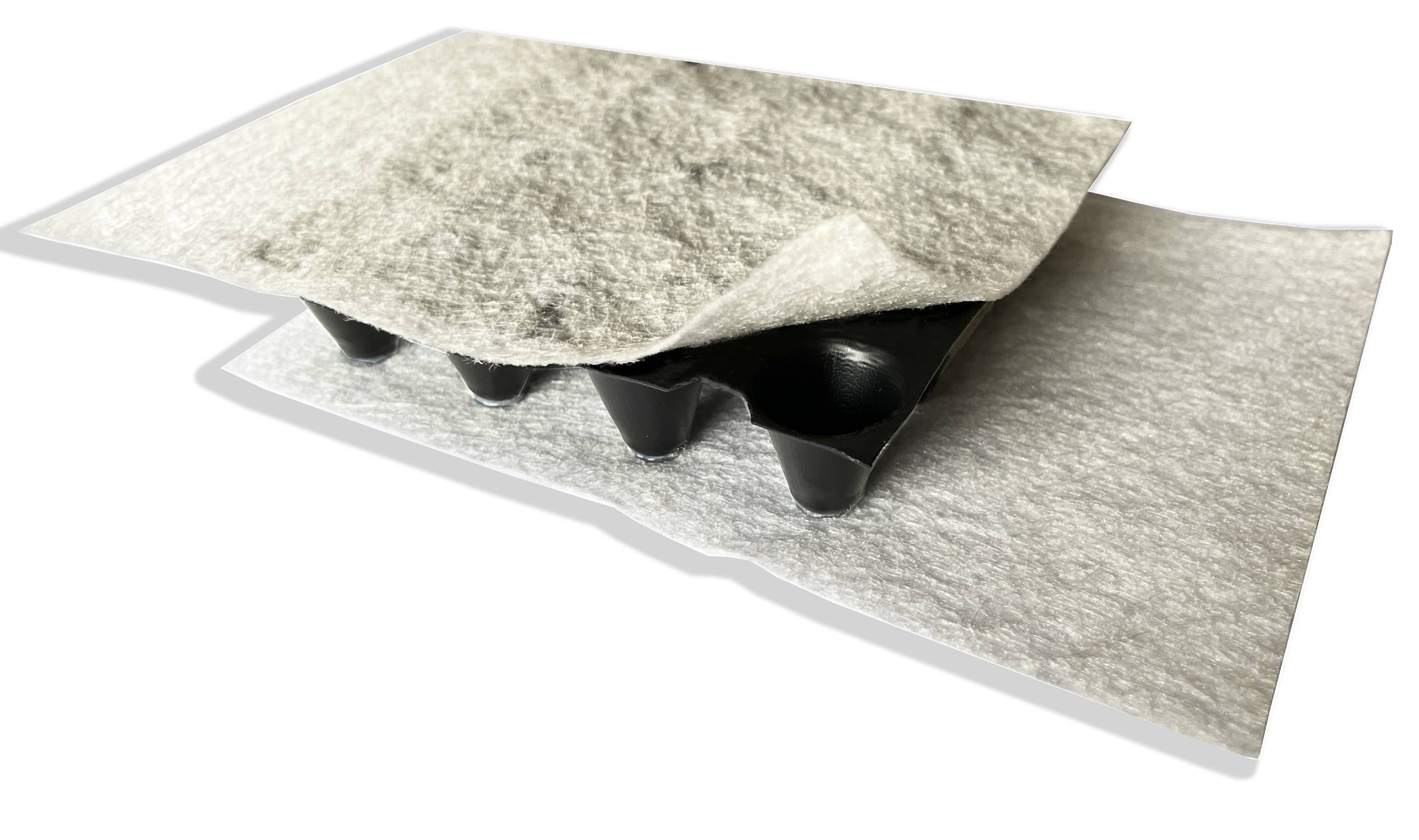

The ABG Roofdrain board comprises a cuspated drainage core with integrated filter and protection geotextiles. Once the cuspated reservoirs are full, the rainfall is channelled into overflow inlets at the top of the drainage board and down into the rainwater outlets.


The drainage board stops the growing media layer from becoming waterlogged following heavy downpours, and the upper textile prevents soil from blocking the drainage pathways. In spells of prolonged dry weather, the Roofdrain provides a store of water within the cuspates for irrigation of the planting via evapotranspiration.


Features and benefits:

  • Efficient and cost-effective
  • Design life 120 years (manufacturer’s declaration)
  • Upper and lower geotextiles with overlap for joining adjacent sections
  • Excellent resistance to microbes

General information

Color

Black

Finish

Smooth

Material

High density polyethylene (HDPE)

Polypropylene

Shape

Rectangle

Length

50000 mm

40000 mm

Width

920 mm

Height

25 mm

Uniclass

Pr_25_71_63_24 Drainage layer corrugated boardsPrimary

CAWS

Q37/130 Extensive green roof

Q37/355 Combined layers

Product range

Drainage Geocomposites

Specification data - Drainage layer corrugated boards

Material

Corrugated polyethylene board with polypropylene filtration and protection geotextiles.

Depth

25 mm.

Recycled content

95%.

Thickness at 2kPa

To EN ISO 9863-1, 27.2 mm.

Tensile strength MD/CD

To EN ISO 10319, 19 kN/m (-10%).

Elongation MD/CD

To EN ISO 10319, MD: 40%; CD: 50%.

Mass per unit area

To EN ISO 9864, Geocomposite: Dry: 1540 g/m²; Saturated: 5840 g/m².
To EN ISO 10319, Geotextile: 120 g/m² (-13%).

Water flow (in plane)

10%: 4.5 L/m·s.
3%: 2.1 L/m·s.
1%: 1.25 L/m·s.

Manufacturer guidance

MD and CMD at 20 kPa confining pressure:

Weathering resistance

To EN 12224, to be covered in 28 days.

CBR puncture resistance

To EN ISO 12236, 1600 N (-20%).

Roll size

920 x 40 000 mm.

920 x 50 000 mm.

Manufacturer guidance

The tolerance on roll length is ±1.5% and on roll width is ±1.0%.

Perforation

To EN ISO 13433, 32 mm (+20%).

Manufacturer guidance

Dynamic perforation cone drop.

Filtration

To EN ISO 12956, 120 μm (±30%).

Manufacturer guidance

Pore size 090

Protection layer

Upper: Non-woven needle-punched and heat-treated long staple fibre polypropylene.
Lower: Non-woven felt of polypropylene and other recycled polymers.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.72 kg CO₂ eq/kg

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %
