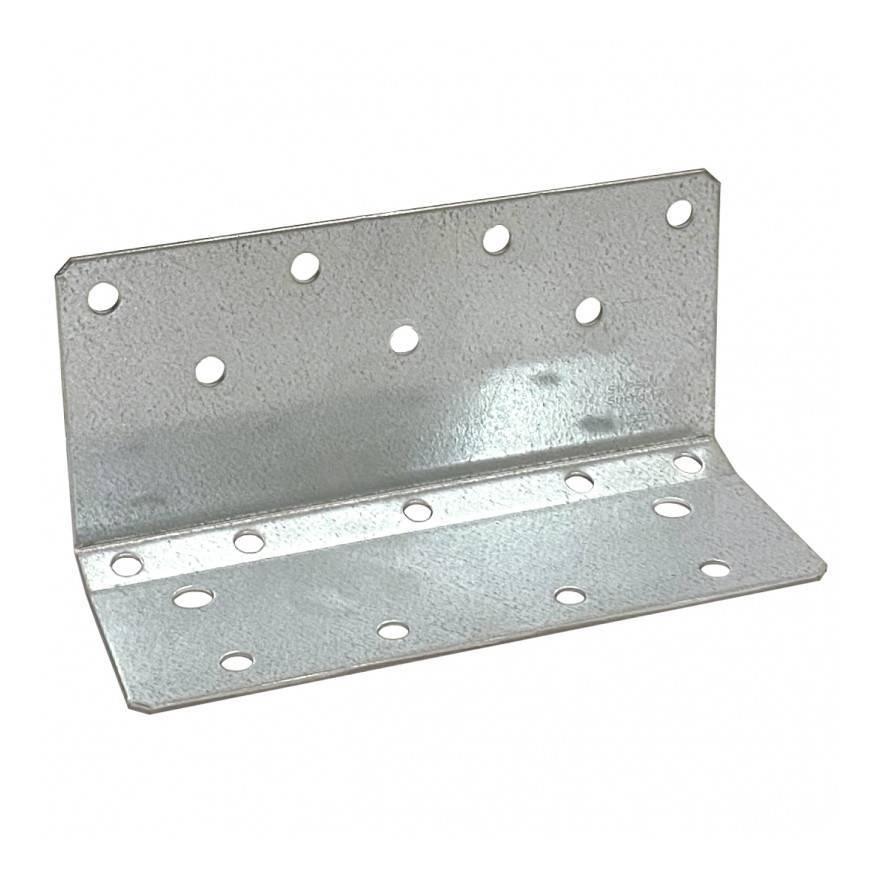

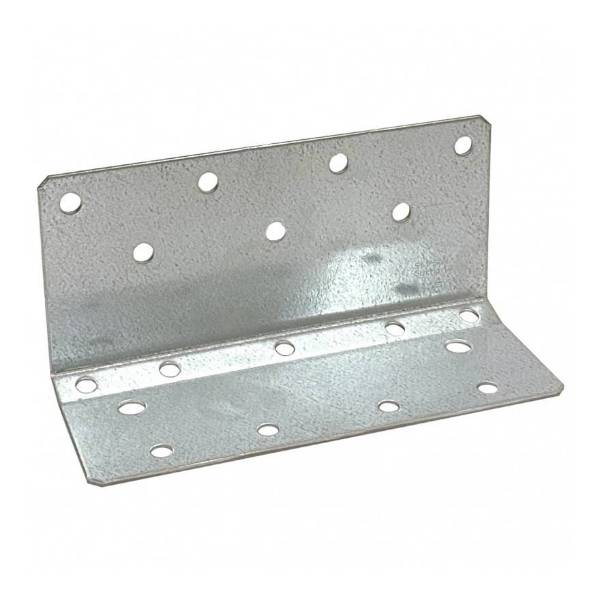

AB255SSH: Heavy Duty Angle Bracket for CLT
Verified by manufacturer 7 months ago
A mild steel angle bracket for cross laminated timber (CLT) construction.
Application
- For indoor use.
- Supporting members: solid wood, glued-laminated wood, CLT, etc.
- Supported members: solid wood, composite lumber, glued-laminated wood, CLT
Description
The AB255SSH angle bracket has been developed specifically for CLT construction. It is designed for both shear and vertical loading. Installed with large SSH connector screws and skewed screws, it enables high capacities and fast installation.
Features and benefits:
- Pre-galvanized mild steel.
- S250 GD + Z275 according to EN 10346.
- Suitable for CLT building.
- Very fast installation.
- Can be hidden in concrete screed.
- CE marked.
General information
Color | Silver |
Finish | Galvanized |
Material | Carbon steel |
Shape | Other |
Length | 255 mm |
Width | 100 mm |
Height | 123 mm |
Uniclass | |
CAWS | G20/45 Framing anchors G20/580 Framing anchors |
Specification data - Framing anchors
Material | Zinc coated carbon steel to BS EN 10346.Guidance for specification option: S250 GD + Z275 according to EN 10346. |
Service class | 2. |
Fasteners | SSH connector screws and skewed screws. |
Literature
AB255SSH: Heavy Duty Angle Bracket for CLT Technical Data Sheet
