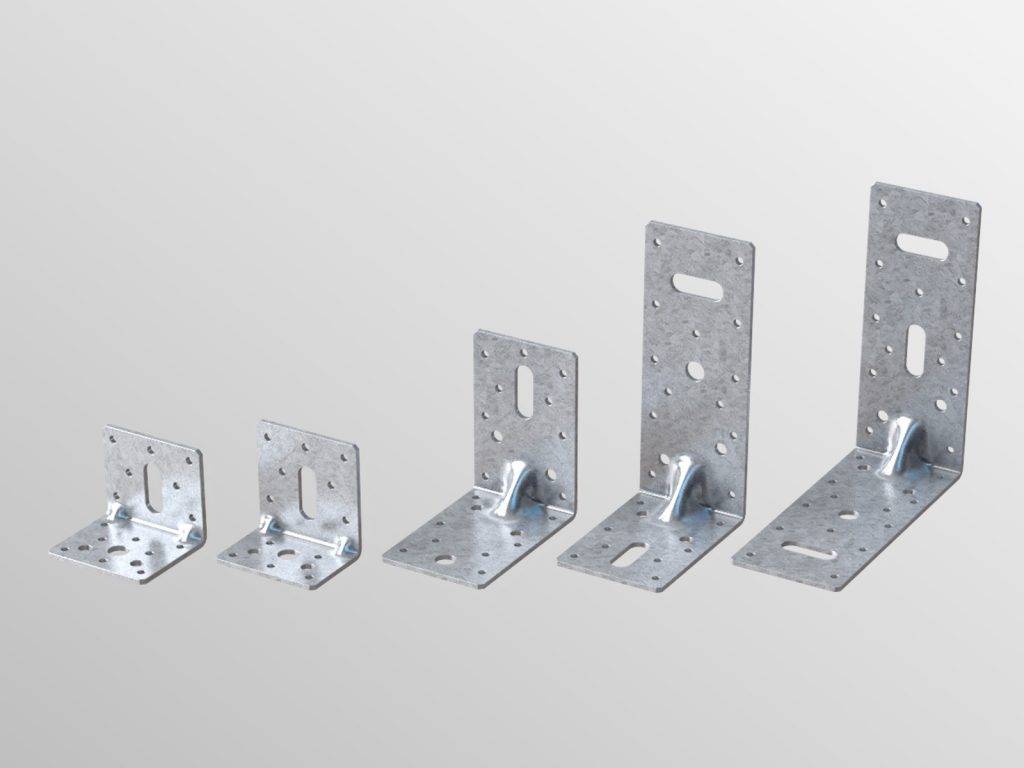

AB Angle Brackets - Steel Angle Brackets
Verified by manufacturer 10 days ago
AB/50x50
AB/50x50
A versatile range of brackets for use in 90 degree connections allowing for use of nails, screws and bolts. AB Angle Brackets have a reinforced rib.
Application
For use in 90 degree connections allowing for use of nails, screws and bolts.
Description
A versatile range of brackets for use in 90° connections allowing for use of nails, screws and bolts.
Features and benefits:
- Includes a reinforced rib.
- Material: produced from 2.5 mm-thick galvanized steel to BS EN 10346 + G275 as standard, or stainless steel grade 304 austenitic to BS EN 10088-2 Grade 1.4301 available from stock in all sizes.
- Fixing: fix using either Type A or Type B fixings in all pre-punched holes:
- Type A, 30 x 3.75 mm Sheradised Square Twist Nails usually supplied loose for manual fixing.
- Type B, 35 x 3.75 mm Sheradised Square Twist Nails usually collated for nail gun fixing.
General information
Color | Silver |
Finish | Galvanized Guidance for specification option: Standard. Stainless steel |
Material | Steel |
Shape | Other |
Length | 40 mm 50 mm 60 mm 90 mm 150 mm |
Width | 60 mm |
Height | 40 mm 50 mm 60 mm 90 mm 150 mm |
Uniclass | |
CAWS | G20/45 Framing anchors G20/580 Framing anchors |

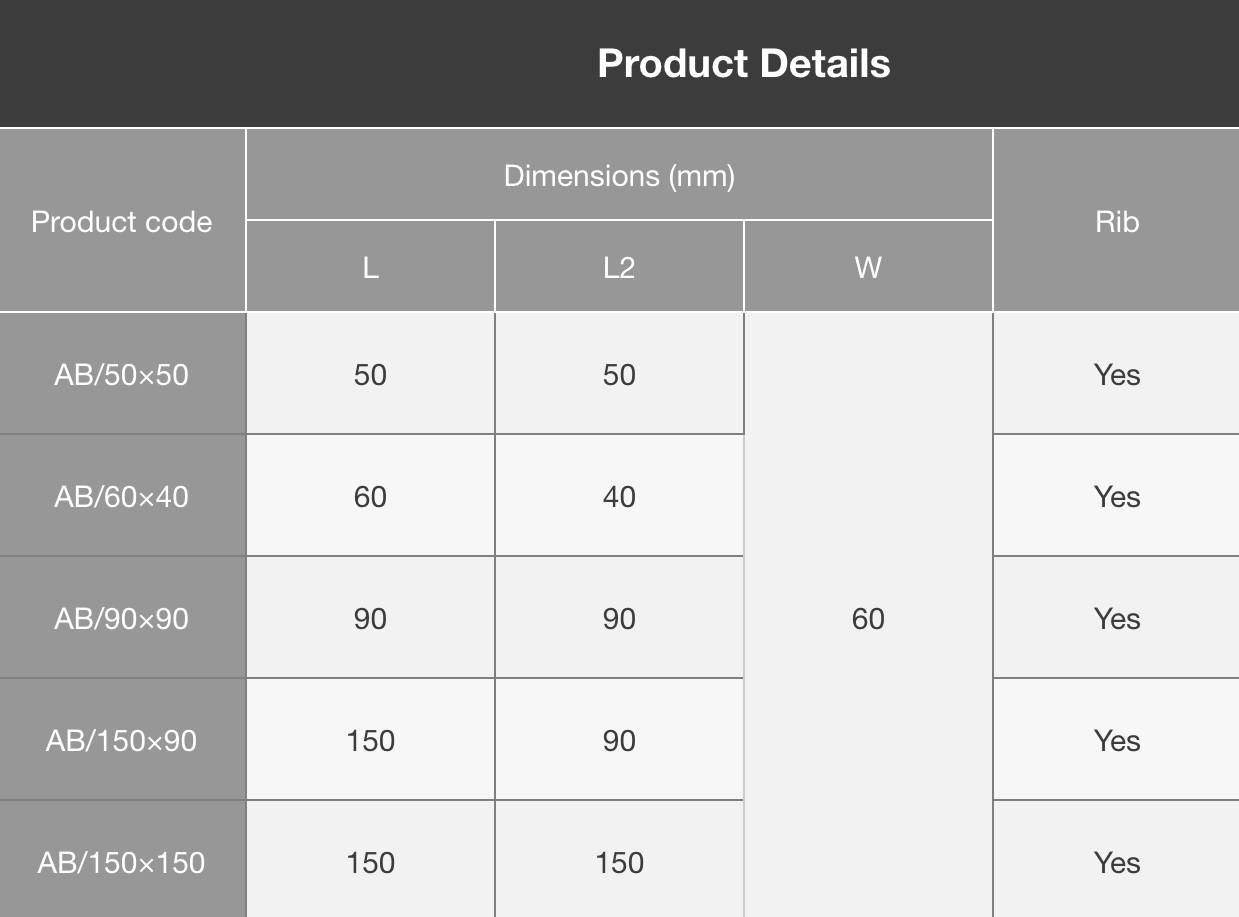

SKU Code | AB/50x50,AB/60x40, AB/90x90, AB/150x90, AB/150x150 |
Specification data - Framing anchors
Material | 2.5 mm-thick galvanized steel to BS EN 10346 + G275. Guidance for specification option: Standard. Stainless steel grade 304 austenitic to BS EN 10088-2 Grade 1.4301. Guidance for specification option: Available from stock. |
Dimensions | 50 x 50 x 60 mm. Manufacturer guidanceLength x height x width. |
Third-party certification | CE Marked. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Steel |
Recyclability | Yes |
Literature
Literature type
BPC Declaration of Performance - CE
BPC Declaration of Performance - UKCA
AB-Angle-Brackets Data Sheet
Similar products from Vista Engineering Ltd
AP - Angle Plate - Galvanized Steel Brackets

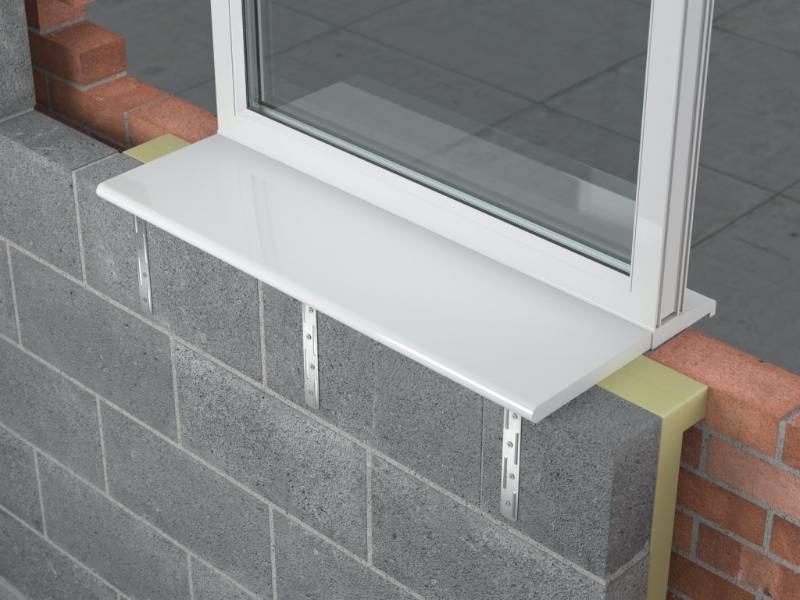

WBFS – Window Board Fixing Strap - Thin Profile Window Board Strap
