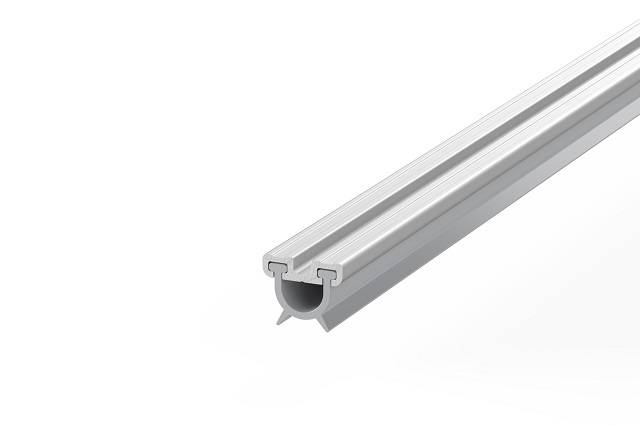

AAS3501 and AAS3503 AURA® Door Bottom Seal
Slide-in-gasket door bottom seal.
Description
These unique slide-in gaskets can be cleverly reversed (blades in/ out) for maximum flexibility. Suitable for single and double swing doors, as well as meeting stiles.
General information
Finish | Bronze anodized aluminium with black silicone gasket Silver anodized aluminium with silver silicone gasket |
Uniclass 2015 | |
CAWS | L20/20 Wood flush doors L20/230 Wood flush doors L20/25 Wood panelled doors L20/250 Wood panelled doors L20/270 Wood doors L20/280 Doors L20/30 Wood doors L20/310 Wood door frames L20/330 Wood door frames L20/370 Door frames L20/410 Wood doorsets L20/420 Wood doorsets L20/430 Wood doorsets L20/480 Doorsets L20/50 Wood door frames L20/52 Wood door frames L20/55 Doorsets L20/610 Roller shutters/ curtains P21/60 Threshold weatherstrip P21/860 Door seals for |
Specification data - Door and window weatherstrips and seals
Product Reference | AAS3501 AURA® door bottom seal8 x 18 mm. AAS3503 AURA® door bottom seal20.8 x 35 mm. |
Length | Single doorset pack consisting of 1 x 1000 mm and 1 x 2100 mm. Other lengths to special order, consult manufacturer for details. |
Finish | Bronze anodized aluminium with black silicone gasketSilver anodized aluminium with silver silicone gasket |
Standard product features | Location: Rebated or surface mounted at the bottom of single, double swing doors and on one leaf at the meeting stiles of double swing doors. Seal material: Silicone. Minimum/ maximum gap size: 8/ 10 mm. Fixing: Fixing holes pre-drilled, screws supplied. When aluminium carrier is fixed in place, gasket slide into carrier (with blades in/ out) concealing fixings. |
Product Options | Finish: Decorative finish for threshold plate and different colour tread strips are available upon request. Consult manufacturer for details. |
