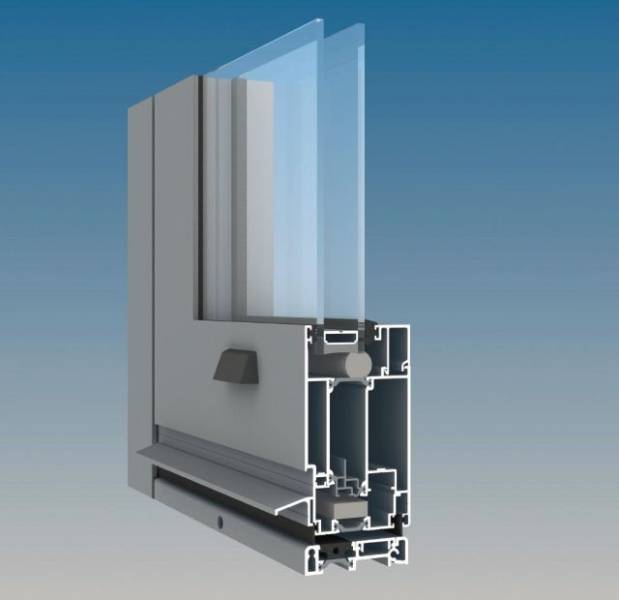

AA545 Aluminium Thermally Broken Door - Single Action Swing Door

Verified by manufacturer 1 month ago

AA®545 Thermally Broken Aluminium Door (standard)

Kawneer UK Ltd Variant:

Aluminium double or single, single action swing door.

Jump to:
+44 (0)1928 502500 Website

Application

Single action swing door. Designed for direct fix into prepared openings and within ribbon windows, the range can suite with the Kawneer curtain walling and framing systems and is suitable for low- or high-rise buildings.


Description

The AA®545 single action swing door is part of the Kawneer AA®540 series window range, designed to offer optimum weather and thermal performance. It uses advanced multi-chamber thermal break technology, ensuring thermal efficiency and full compliance with Building Regulations (E&W) Approved Document L and Scottish Building Standards Part 6. The polyamide thermal break also allows for single and dual colour options.


Features and benefits:

  • Multi-point locking.
  • Suited hardware with the AA®540 window range.
  • Full panic hardware range offered.
  • Optional security hardware.
  • Square and Softline profile options.
  • 3D-adjustable standard barrel hinges.
  • Optional adjustable flag hinges.

General information

Finish

Anodized

Powder-coated

Material

Aluminium

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Aluminium doorsets

Configuration

Single.

Double.

Doorset size

Guidance for specification option:

Insert requirements.

Size limitations:

  • Using barrel hinges: Up to 1.0 x 2.2 m (w x h).
  • Using face-fixed flag hinges: Up to 1.3 x 2.5 m (w x h).


Frame

-

Material

Aluminium.

Threshold

Barrier-free.

Low threshold (with/ without ramp).

Rebated.

Door leaf

-

Material

Aluminium.

Glazing

-

Type

Guidance for specification option:

  • Bead glazing with EPDM gaskets up to 48 mm thickness can be accommodated using standard bead and up to 42 mm using box bead.
  • Softline option up to 39 mm using standard bead and 33 mm using box bead.


Execution

Installing hardware.

Profile

Softline.

Square.

Operation

Open in.

Open out.

Finger guard

Not required.

Required.

Closer

Not required.

Concealed.

Face fixed.

Air permeability

To BS EN 12207, Class 4A.

Watertightness

To BS EN 12208, Class 9A.

Wind load resistance

To BS EN 12210, Class AE2400.

Weight

Guidance for specification option:

Leaf weight up to 150 kg.

Style

Standard.
