A270 - Light Duty Hanger (Standard Leg) - Light Duty Hanger (Standard Leg)
Verified by manufacturer 10 days ago
A270/38 (38 x 276 x 50 mm)
A270/38 (38 x 276 x 50 mm)

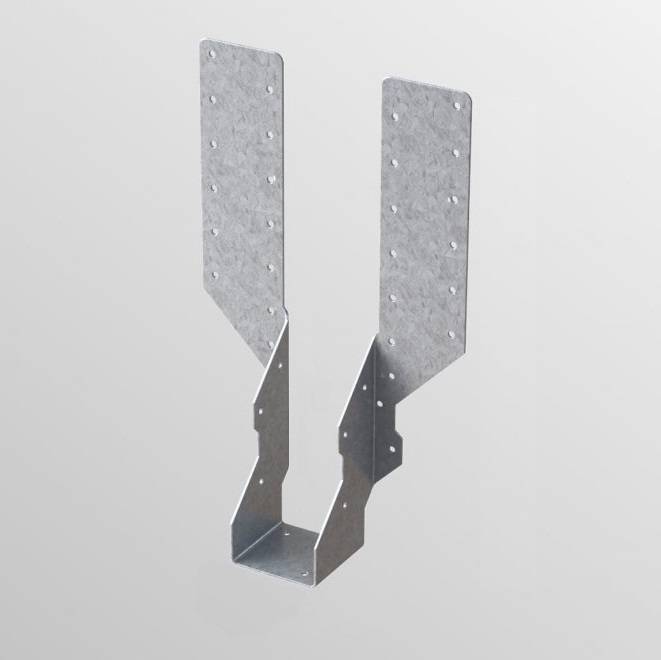

A lightweight galvanized joist hanger manufactured from galvanised steel providing a strong connection and quick and easy installation.
Application

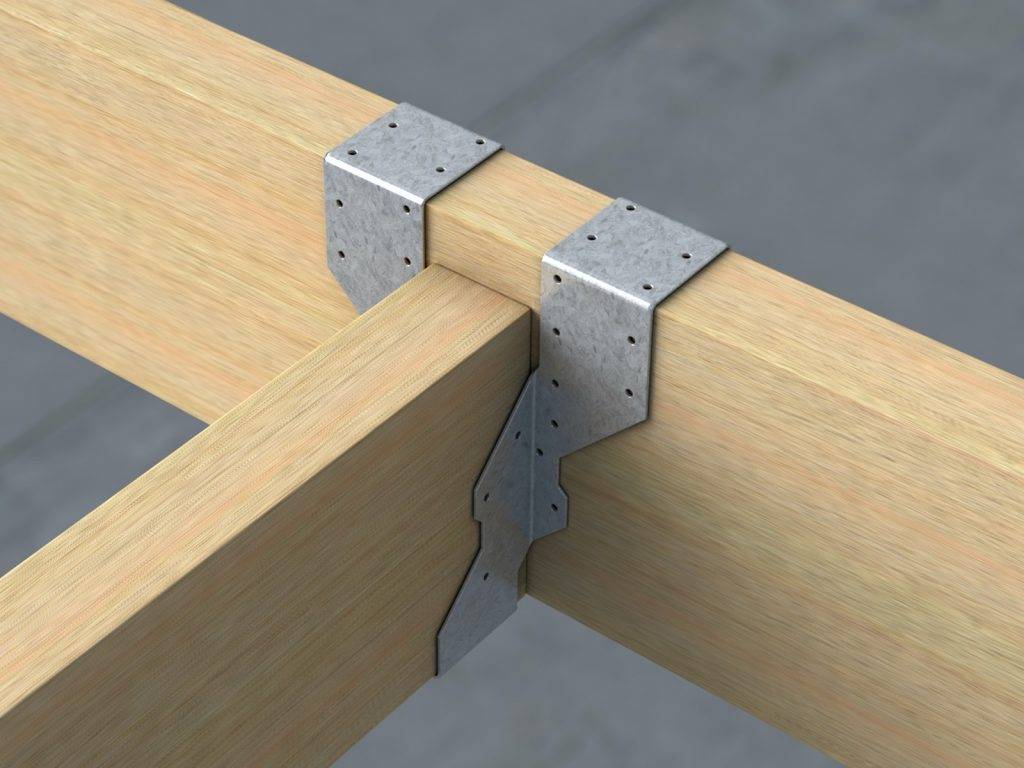

Joist trimming for light, medium and heavy applications such as supporting floor joists, trimming stair wells, and underslung joists.
Description
Standard timber-to-timber hangers. A quick and safe method of joist trimming for light, medium and heavy applications such as supporting floor joists, trimming stair wells, and underslung joists. They have increased hole centres to spread load over greater area.
Features and benefits:
- Produced from galvanized steel to BS EN 10346 S250 G275 as standard, or stainless steel available to order.
- Designed with wider 50 mm strap legs to enhance performance with increased nail spacing.
- Suitable for joist depths of 150 to 250 mm.
- Leg length can be adjusted by wrapping over to suit joist height.
- Also suitable for face fixing.
General information
Color | Silver |
Finish | Galvanized Stainless steel |
Material | Steel |
Length | 50 mm Guidance for specification option: All A270 Light Duty Hangers (Short Leg) have a 50mm bearing. |
Width | 38 mm 44 mm 47 mm 50 mm 63 mm |
Uniclass | |
CAWS | G20/65 Joist hangers G20/791 Proprietary joist hangers |
SKU Code | A270/38, A270/44, A270/47, A270/50, A270/63, A270/75, A270/88, A270/91, A270/100 |
Specification data - Joist hangers
Third-party certification | CE Marked. UKCA Marked. |
Format | Joint fixing. Face fixing. Manufacturer guidanceSee Fixing below for further options. |
Material | Galvanized steel to BS EN 10346 S250 + G275. Guidance for specification option: Standard. Stainless steel. Guidance for specification option: To order, consult manufacturer for details. |
Finish | Galvanized. |
Sizes | 38 x 276 x 50 mm. Guidance for specification option: A270/38. Side flange: 126 mm. Manufacturer guidanceWidth x length (height) x breadth (depth). |
Fixing | Guidance for specification option: Fix using either Type A or Type B fixings in all pre-punched holes:
|
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Steel |
Recyclability | Yes |
Literature
Literature type
A270 Light Duty Hanger Data Sheet
BPC Declaration of Performance - CE
BPC Declaration of Performance - UKCA
