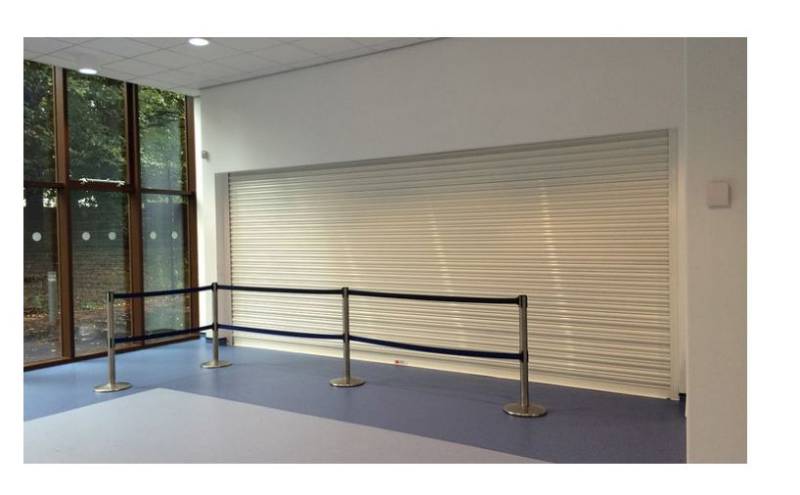

A1S Flameshield Fire Shutter 240 T - Fire Shutter

Verified by manufacturer 10 months ago

A1S Group Third party certifications:
  • Warringtonfire

    Warringtonfire

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

  • IFCC

    IFCC

    Certificate type

Fire shutter with internal tubular motor CE marked to BS EN 16034 and BS EN 13241-2.

Jump to:
+44 (0)1204 383839 Website

Application

Suitable for installation within the following structures:

  • Masonry.
  • Steel.

Description

The fire shutters are manufactured and produced in accordance with the parameters and technical aspects indicated within the specifications, which were submitted to the Warrington Fire Research Establishment. The shutters are constructed for fire testing in accordance with BS EN 1634-1 and in full compliance with the new fire standard BS EN 16034:2014. This product can be fitted to rigid structure and is CE marked. Third party Installation Certification is with IFC (certificate 3425) for the installation of fire shutters.


Features and benefits:

  • Element Fire Research Centre No 421378 This fire test is a legal requirement.
  • Extended Application under WF 422881/ WF 421375. This EXAP is a legal requirement.
  • Certificate of Constancy of Performance - 1121-CPR-RA5009. This certificate is a legal requirement.


Endplates:

The endplates are fixed to a steel fixing angle which spans the full height of the shutter, which in turn is fixed back to the wall construction. Accordingly, the angles are slotted for expansion with an anchor point located at the bottom of the angle.


Guides:

Vary from 50 mm straight channel galvanized guide mounted on 75 x 50 mm carbon steel angle (minimum). For shutters of increased width compared to tested sizes A1 Shutters provide for expansion and the depth of each guide rail shall be increased dependent on the shutter width.


Hood:

Formed from 20 swg steel sheet, with the top leg slotted for expansion. Dependent on the fire rating of the shutter (one hour only) and the size of the opening.


Release mechanism:

Fire relay linked to the fire alarm to allow closure from a fire alarm signal comes complete with a battery backup (mandatory). The fire relay and battery backup are tested as part of the ability to release and durability tests. Alternatively, audio visuals are available, again to be linked to the fire alarm, this unit offers the facility of a time delay, this flashes and sounds to warn that the fire shutter is closing.

General information

Color

-

Manufacturer guidance

BS 4800 and RAL colours available.

Finish

Galvanized

Powder-coated

Material

Steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_84_30 Fire-resisting roller shuttersPrimary

CAWS

L20/610 Roller shutters/ curtains

Specification data - Fire-resisting roller shutters

Standard

CE marked to BS EN 16034.

Opening sizes

-

Manufacturer guidance

Maximum size (w x h): 4000 x 3800 mm.

Format

Fire shutter.

Performance

-

Fire performance

-

Fire resistance

240 minutes.

Frame and guides

-

Material

Steel.

Finish

Polyester powder-coating.

Guidance for specification option:

Angles, barrel and end plates are painted.

Galvanized.

Guidance for specification option:

Guides.

Colour

BS 4800.

RAL.

Manufacturer guidance

Subject to availability. Consult manufacturer for details and insert requirements.

Shutter curtain

-

Lath material

76 mm curved steel scroll laths interlocked with steel end locks and galvanized 'T' section bottom rail.

Profile

Curved.

Finish and colour

Galvanized.

BS 4800.

Guidance for specification option:

Polyester powder coating.

RAL.

Guidance for specification option:

Polyester powder coating.

Operation

Electrically operated 1PH tubular motor.

Accessories

Audio/ visual device.

Guidance for specification option:

Audio Visuals are available, again to be linked to the fire alarm, this unit offers the facility of a time delay, this flashes and sounds to warn that the fire shutter is closing.

Relay.

Key Switch.

Battery Back UP (BBU).

Third party certifications

Warringtonfire

Warringtonfire

Certificate of Constancy of Performance (AVCP) CE marked fire shutters 60-240 minutes

Constructionline Gold

Constructionline Gold

Constructionline Gold

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 2015 (Issue 5)

smas WORKSAFE

smas WORKSAFE

SMAS 2023 (SSIP)

IFCC

IFCC

IFC Third Party Installation, Commissioning and Servicing Fire Shutters SDI 17

Literature

A1S Flameshield Fire Shutter 240 T Specification

A1S Flameshield Fire Shutter 240 T Specification

Flameshield 240 T Reveal Fix

Flameshield 240 T Reveal Fix
