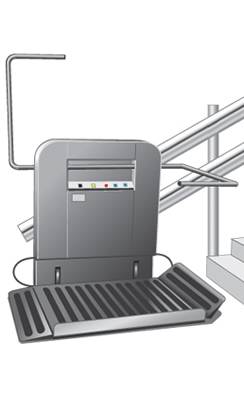

A1000 Wheelchair Incline Stair Lift
Wheelchair incline stair lift.
Wheelchair incline stair lift that can be wall or stanchion post mounted to almost any staircase. With the standard or a special size platform the stair lift can be adapted to fit the majority of applications which include stairs with mid landings and the requirement for the unit to travel around a corner or bend.
With simple and easy to use push buttons and joystick, the stair lift is a reliable and cost effective solution to restricted access via an existing stair case. To operate the stair lift unit, the wheelchair users would press the unfold button on the remote control station and the platform will then automatically unfold ready to be used. The wheelchair users can then move themselves onto the platform.
Features and benefits:
- Wall or stanchion post mounted.
- Automatic fold and unfold facility.
- Single phase, 13 A power requirement.
- Suitable for internal or external applications.
- Capable of accommodating stairs with mid landings or curves/ corners on the staircase.
Finish | Platform side panel: RAL 9007 Floor and ramp covering: Non-slip flooring, RAL 9007 |
Uniclass 2015 | |
CAWS | X13/110 Stairlift system |
Product Reference | A1000 Wheelchair Incline Stair Lift |
Size (w x l) | 800 x 1000 mm800 x 1250 mm |
Accessories | Attendant controlBattery back-up emergency alarmBattery back-up emergency loweringSide accessSpecial painting to plastic side cover |
Standard product features | Folded up width: 237 mm (350 mm when stanchion post mounted). Finish:
Configuration: Through or adjacent entrance configuration. Rated load: 300 kg. Speed (approximate): 0.15 m/s. Number of stops/ landings: Two. Fixing: Wall or stanchion post mounted. Handing: Left or right. Drive: Rack and pinion with worm gear motor and brake. Control logic: Constant pressure controls. Controls:
Power supply: Automatic power driven travelling ramp/ wheelstop on platform. Safety barriers: Safety arms located behind the platform when folded. Safety features:
Power supply: 240 V, 50 Hz, 10 A supply with soft start and stop, 24 V control voltage. |
