A1 Smart-Ped - Paving Pedestal
Verified by manufacturer 1 month ago

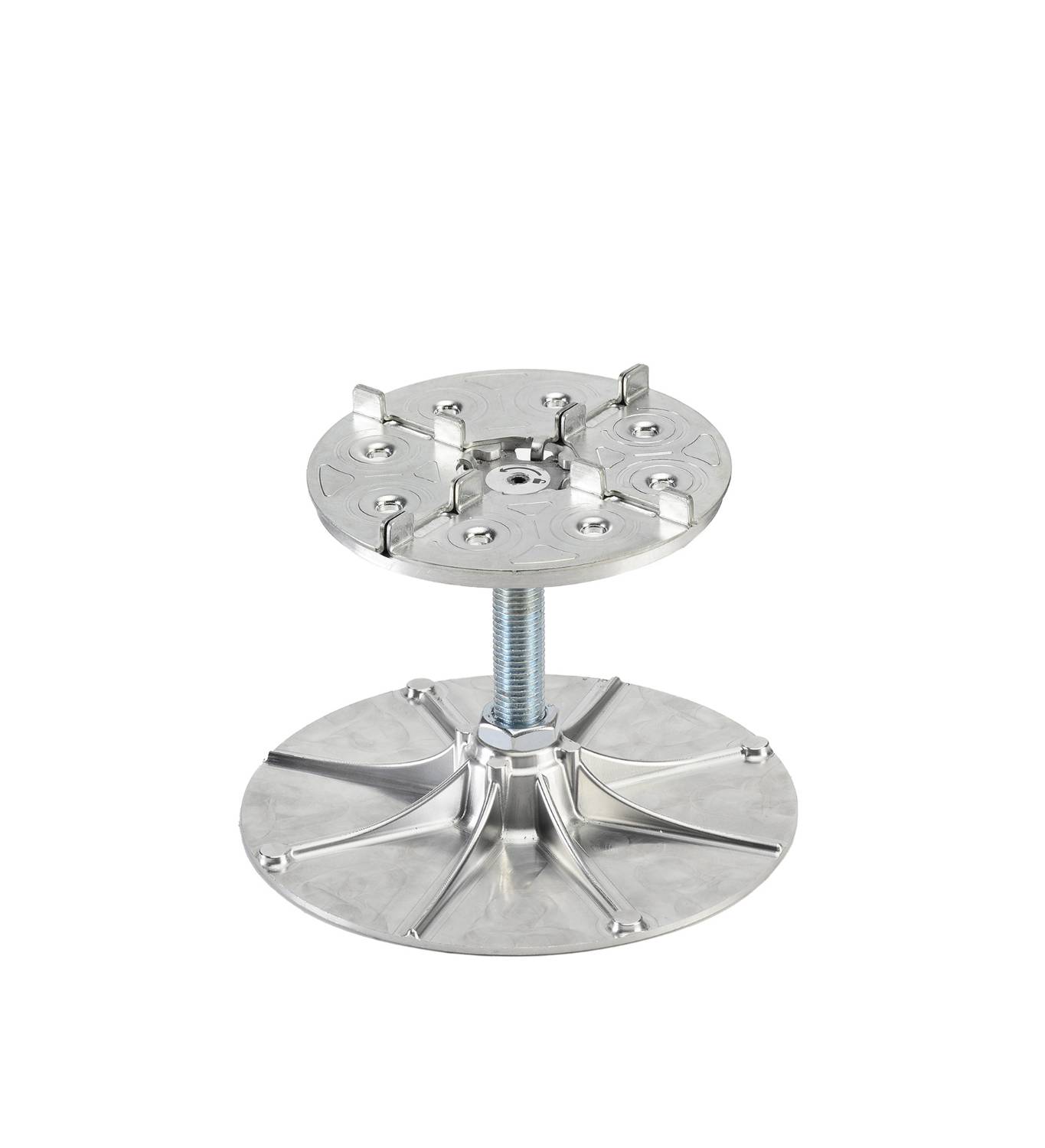

A non-combustible aluminium and zinc-coated steel pedestal system for rooftop terraces, podium decks, balconies and flat roofs.
Application
For rooftop terraces, balconies and flat roofs designed to BS 8579.
Description
A non-combustible aluminium and zinc-coated steel pedestal system for rooftop terraces, balconies and flat roofs designed to BS 8579, Guide to the design of balconies and terraces.
The Smart-Ped lock includes four locked corner pieces which can be locked and unlocked with a 3 mm screwdriver. There are three different support heads available: standard with four spacers, with two spacers (edge zone) or with three spacers (stretcher bond).
The system is designed to operate with an adhesive bond between the slabs and pedestals, ensuring a strong surface without mechanical fixings. The system is specifically designed for applications where a non-combustible pedestal is required with the additional benefit of resisting wind uplift as a monolithic system.
Features and benefits:
- No fiddley mechanical fixings.
- No expensive fixing channels in the paving slabs.
- Individual demountable corner pieces.
- Class A1 - fire rated.
- Smart locking mechanism.
- Recycled aluminium and zinc-coated steel.
- Height from 50 mm to 290 mm.
- Quick and simple installation.
- Removable nibs for various bond patterns.
- Adjustable base plate for sloping roofs up to 6 degrees.
General information
Color | Silver |
Material | Aluminium Steel |
Shape | Circle |
Width | 169.1 mm |
Height | 50 mm 80 mm 110 mm 140 mm 170 mm |
Warranty description | 15 year Guidance for specification option: When installed and maintained to manufacturer's guidelines. |
Uniclass | |
CAWS | Q37/460 Support pedestals J42/467 Support system for precast concrete paving slabs J31/377 Support system for paving slabs or tiles J21/467 Support system for precast concrete paving slabs J41/467 Support system for precast concrete paving slabs |
Specification data - Decking and paving pedestals
Pedestal type | Adjustable. |
Material | Aluminium and zinc-coated steel. |
Adjustment | 50–80 mm.80–110 mm.110–140 mm.140–170 mm.170–200 mm.200–230 mm.230–260 mm.260–290 mm. |
Accessories | Not required.Smart-Ped shims.Smart-Ped slope correction.Dreen Hybrid adhesive HP50. |
Fire rating | To BS EN 13501-1, Class A1. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100% |
Literature

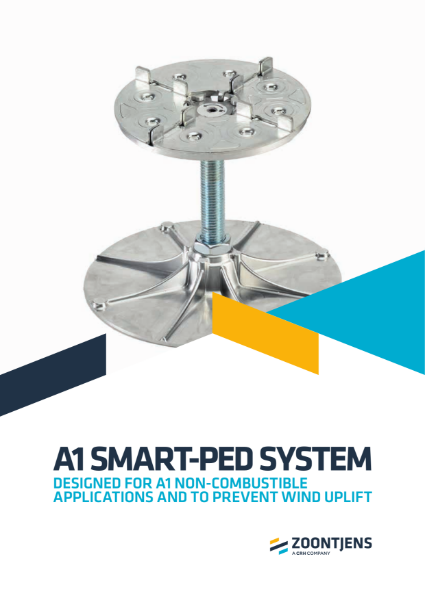

A1 Smart Ped System
A1 Smart-Ped Rod Product Information Sheet

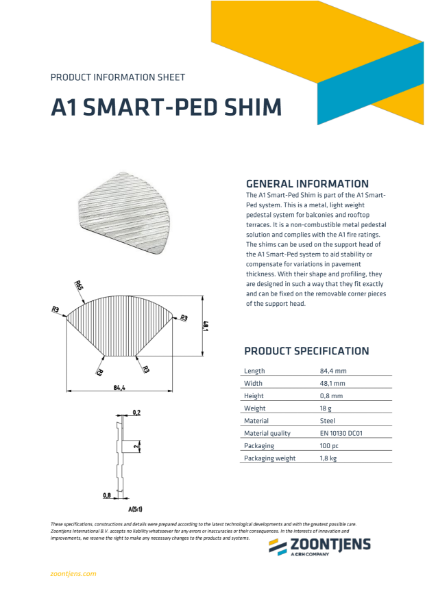

A1 Smart-Ped Shim Product Information Sheet

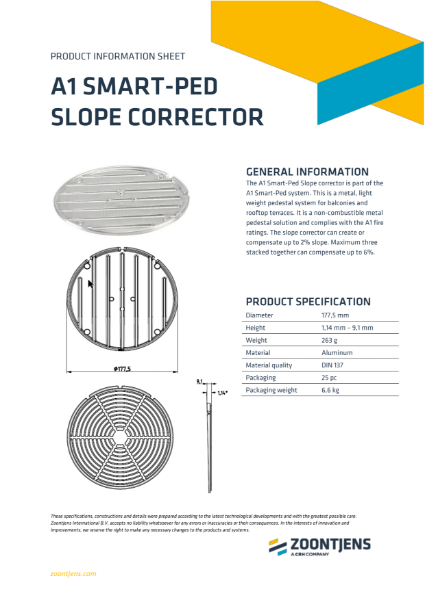

A1 Smart-Ped Slope Corrector Product Information Sheet

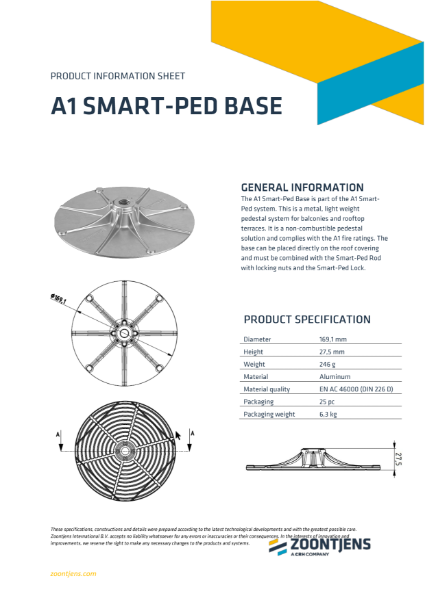

A1 Smart-Ped Base Product Information Sheet

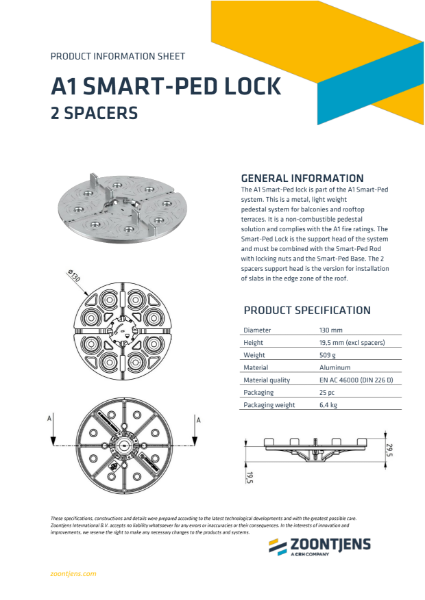

A1 Smart-Ped Lock 2 Spacers Product Information Sheet
A1 Smart-Ped Lock 3 Spacers Product Information Sheet

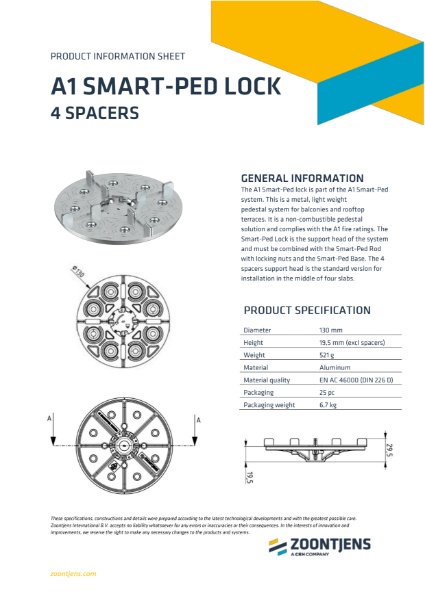

A1 Smart-Ped Lock 4 Spacers Product Information Sheet
