A1 EazyDeck Porcelain Decking - Ceramic Decking
Verified by manufacturer 3 days ago
Fire-rated extruded ceramic decking boards.
Application
With a Class A1 fire rating, A1 EazyDeck Porcelain Decking is suitable for commercial and residential balconies and elevated terraces on mid- to high-rise buildings.
The R12 anti-slip rating, high resistance and durability also make it suitable for high-traffic areas including swimming pool walkways, pedestrian walkways, and communal areas of hotels, offices and retail parks.
It is equally suitable for lower level outdoor spaces, including terraces, patios, gardens, outdoor dining areas, and recreational spaces.
Description
A1 EazyDeck Porcelain Decking is an ideal choice for architects looking for an elegant, sustainable and fire-safe decking. These boards are easy to install, typically on class A fire-rated joist-pedestal substructures.
A1 EazyDeck Porcelain Decking has the aesthetic of real wood, with minimal maintenance and care required.
The extruded ceramic boards are suitable for a wide range of outdoor applications and are ideal for high-footfall areas. The material is resistant to high-temperature changes and has a high anti-slip-grip with a Class A1 fire rating.
The boards are rectified. Rectification ensures straight edges, and combined with the high consistency in production, this makes A1 EazyDeck Porcelain Decking easy to lay and install.
A1 EazyDeck Porcelain Decking does not contain any toxic chemicals, and the boards are inert to most chemical reactions.
Features and benefits:
- Class A1 fire-rated.
- Six authentic timber finish colours are stocked in the UK.
- Standard and square edge boards are readily available.
- Durability and UV resistance with a high breaking strength.
- Anti-slip Class 3 R11/C.
- Resistant to frost, ice and temperature changes.
- Wind resistant, withstanding uplift and suction pressure when used with BM Architectural substructures and fixing clips.
- 100% colourfast, stain-resistant and low-maintenance.
- Sustainable and eco-friendly. Minimum of 41% recycled content.
- Anti-bacterial and easy to clean.
- Long lifespan. 100 years+ with a 30-year warranty.
- Custom finishes are available made-to-order, subject to minimum order quantities.
- Complementary Class A substructures available (EazyPed steel pedestals & EazyJoist rails)
Sustainability
A1 EazyDeck comprises a minimum of 41% recycled content, and is a recyclable system that can be disassembled. 100% of the residual material generated during the production process is recovered, and all industrial wastewater is reintroduced, minimising the consumption of water resources per square metre of product manufactured. The use of local raw material, close to manufacture, further reduces the carbon footprint.
General information
Color | Beige Brown Cream Grey Other |
Finish | Anti-slip Guidance for specification option: Riven. |
Material | Porcelain Ceramic |
Shape | Rectangle |
Length | 1217 mm |
Width | 141 mm |
Height | 26 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | M40/110 Tiling Q55/380 Deck boards Q55/130 Footbridge Q55/120 Boardwalk Q55/110 Deck L30/20 Stairs L30/45 Ramps/ walkways J31/375 Paving tiles L30/460 Walkways L35/350 Stairs L35/340 High level walkways L30/470 Ramps M40/5 Tiling |
Specification data - Clay paving tiles
Classification data | |
Tile material | Porcelain. |
Colour | Maple. Natural. Oak. Teca. Grey. Antico. |
Finish | Plain. |
Plan shape | Rectangular. |
Size (minimum) | 1217 x 141 mm. |
Thickness (minimum) | 26 mm. |
Environmental performance requirements | |
Recycled content (minimum) | 41% to BS EN ISO 14021. |
Weight | 8.32 kg. Manufacturer guidanceWeight per board. |
Fire classification (EN 13501-1) | Class A1fl-s1. |
Water absorption | To ISO 10545-3, ≤0.5%. |
Breaking strength | To ISO 10545-4, ≥15 000 N. |
Abrasion resistance | To ISO 10545-7, 5. |
Thermal shock resistance | To ISO 10545-9, guaranteed. |
Crazing resistance | To ISO 10545-11, guaranteed. |
Frost resistant and chemical resistant | To ISO 10545-12, guaranteed (frost); to ISO 10545-13, A/LA/HA (chemical). |
Stain Resistance | To ISO 10545-14, Class 5. |
Slip resistance rating | To DIN 51130, R11. Manufacturer guidanceAnti-slip resistance (ramp). |
Slip resistance | To DIN 51097, C group. Manufacturer guidanceAnti-slip resistance (barefoot). |
Pendulum test | ANTISLIP Class 3. Manufacturer guidanceTest: UNE-41901 EX. |
Static load resistance | To EN 12825, Class 2. Manufacturer guidanceMinimal value of static load. |
Deflection | To EN 12825, Class A. Manufacturer guidanceMaximum value of deflection for ultimate load 6 KN. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Material | Porcelain Ceramic |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 0.23 (kg CO₂ eq/kg) Declared unit : 0.23 | |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 41 % |
Expected Life | Lifetime |
Literature

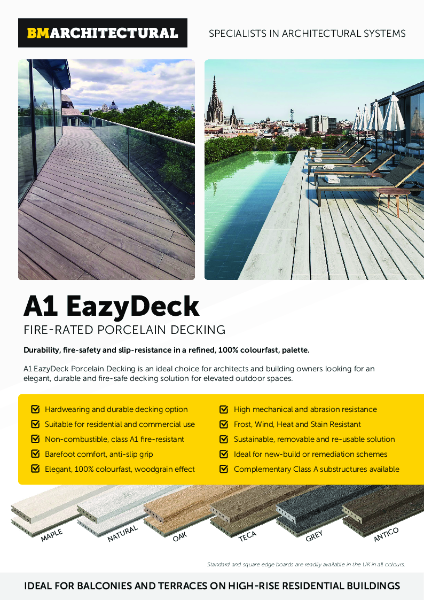

A1 EazyDeck Data Sheet
