This product is no longer available

Application

Suitable for use with porcelain, aluminium decking, concrete paving, stone paving and other components.

Description

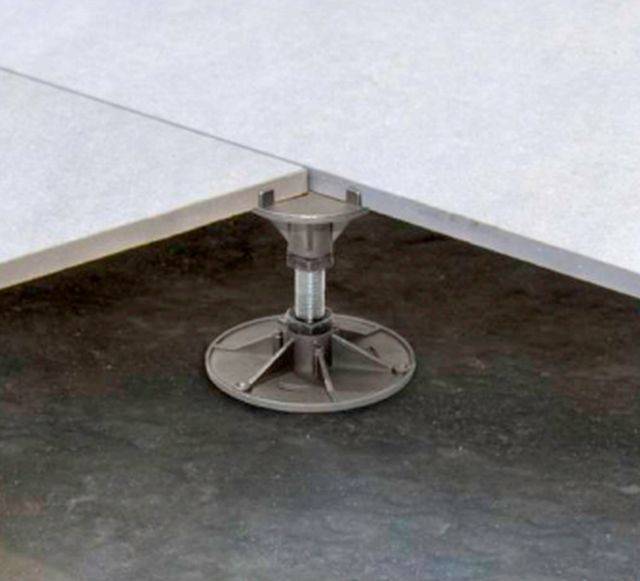

Euroclass A1 fire-rated, fully non-combustible aluminium adjustable pedestal system. It has been developed in response to the changes in regulations requiring the use of non-combustible materials in multistorey buildings. Meeting the demands for a fully fire-rated external decking and paving solution, the external flooring system is designed specifically for external balconies, terraces, roof and winter gardens.

Features and benefits:

  • Adjustable height: 60–350 mm.
  • Non-combustible.
  • Quick installation.
  • Lightweight.
  • Superior strength.
  • Self-draining.
  • Ultraviolet (UV)-resistant.
  • Chemical-resistant.
  • Maintenance-free.
  • Suitable for use in temperatures from -30 to +90°C.

Applications:

Suitable for use with porcelain, aluminium decking, concrete paving, stone paving and other components.

General information
Material

PED-base and PED-head: 100% recycled aluminium

PED-thread and nuts: 100% coated steel

All components 100% recyclable

Size

Head: diameter: 76 mm, surface area 460 cm²

Base: diameter: 112 mm, surface area 1000 mm²

Uniclass 2015
Pr_20_85_47_22 Decking and paving pedestalsPrimary
Specification data - Decking and paving pedestals
Product Reference

A-PED™ A1 Fire-Rated Pedestal

Standard product features

Size:

  • Head: diameter: 76 mm, surface area 460 cm².
  • Base: diameter: 112 mm, surface area 1000 mm².

Material:

  • PED-base and PED-head: 100% recycled aluminium.
  • PED-thread and nuts: 100% coated steel.
  • All components 100% recyclable.

Composition:

The A-PED comprises of three components: PED-base, PED-head and PED-thread with two locking nuts.

Load capacity:

  • Uniformly distributed: >2000 kg.
  • Concentrated: 3000 kg.
