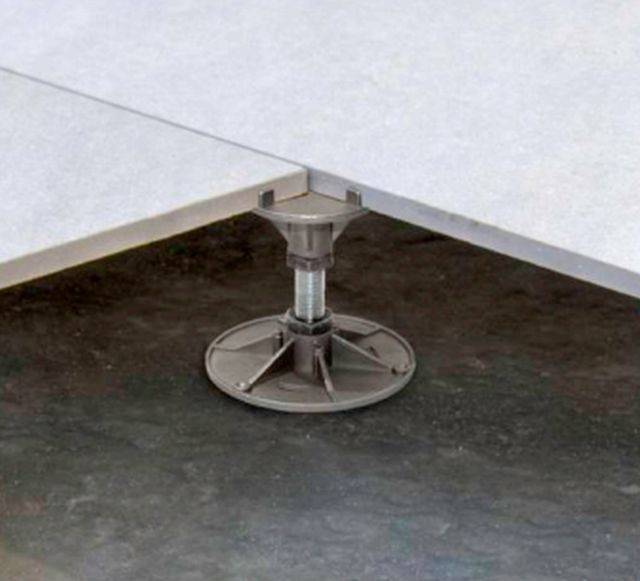

A-PED™ A1 Fire-Rated Pedestal
Verified by manufacturer 8 months ago
A1 fire-rated adjustable pedestal.
Application
Suitable for use with porcelain, aluminium decking, concrete paving, stone paving and other components.
Description
Euroclass A1 fire-rated, fully non-combustible aluminium adjustable pedestal system. It has been developed in response to the changes in regulations requiring the use of non-combustible materials in multi-storey buildings. Meeting the demands for a fully fire-rated external decking and paving solution, the external flooring system is designed specifically for external balconies, terraces, roof and winter gardens.
Features and benefits:
- Adjustable height: 65–475 mm.
- Non-combustible.
- Quick installation.
- Lightweight.
- Superior strength.
- Self-draining.
- Ultraviolet (UV)-resistant.
- Chemical-resistant.
- Maintenance-free.
- Suitable for use in temperatures from -30 to +90°C.
- Fully non-combustible aluminium adjustable pedestal system.
Composition:
The A-PED comprises of three components: PED-base, PED-head and PED-thread with two locking nuts.
Load capacity:
- Uniformly distributed: >2000 kg.
- Concentrated: 3000 kg.
General information
Color | Silver |
Finish | Matt |
Material | Aluminium Guidance for specification option: PED-base and PED-head: 100% recycled. Steel Guidance for specification option: PED-thread and nuts: 100% coated. |
Shape | Other |
Uniclass | |
CAWS | G30/110 Metal profiled sheet decking G30/110 Metal profiled sheet decking J21/85 Precast concrete paving slabs J21/467 Support system for precast concrete paving slabs J31/377 Support system for paving slabs or tiles J31/375 Paving tiles J31/80 Precast concrete paving slabs J31/370 Precast concrete paving slabs J41/90 Precast concrete paving slabs Q37/460 Support pedestals Q37/160 Paving and decking systems J41/467 Support system for precast concrete paving slabs Q25/480 Support pedestals J42/467 Support system for precast concrete paving slabs Q55/395 Support pedestals Q55/110 Deck |
Specification data - Decking and paving pedestals
Classification data | |
Pedestal type | Adjustable. |
Material | Aluminium. |
Adjustment | 65—475 mm. |
Load capacity | >2000 kg. Guidance for specification option: Uniformly distributed. (Concentrated: 3000 kg). |
Sustainability data
Material | Aluminium Guidance for specification option: PED-base and PED-head: 100% recycled. Steel Guidance for specification option: PED-thread and nuts: 100% coated. |
Recyclability | All components 100% recyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
A-PED Technical Data Sheet
