9466 Overhead Door Closer
BSI Kitemark
Certificate type
QA Certificate
Certificate type
Certifire Certificate
Certificate type
A range of overhead door closers to BS EN 1155.

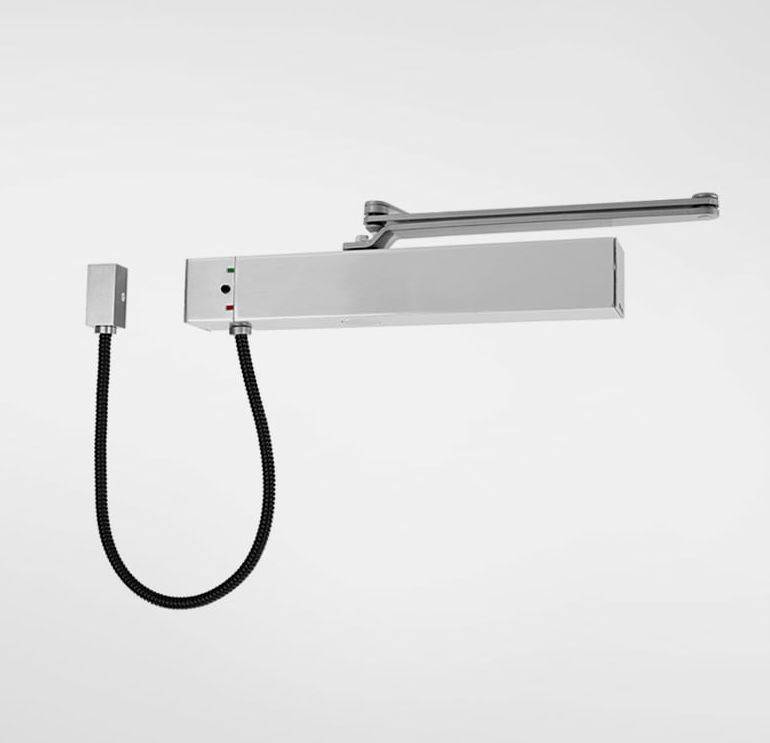

The Allgood type 9466 is a fire-hold, fixed power, Figure 6 overhead door closer with electromagnetic free swing facility. The closer is designed for fixing to the closing face of the door.
Features and benefits:
- Independently tested and complies with the requirements of BS EN 1155.
- Classification coding: 3-8-3-1-1-3.
- CE marked.
- Type 9466 has been included in third party testing on timber fire door assemblies to BS EN 1634-1 and BS 476-22, providing fire resistance for 120 minutes.
- Units are Certifire CF104 approved, for use on certain latched and unlatched assemblies and single and double doors.
Properties:
- Electromagnetic freeswing facility.
- The unit also incorporates an integral test button for simplified regular system checking.
- Twin LED status indicators are incorporated.
- Units are designed for opening face fixing and are supplied with an intumescent-protected soffit plate.
Uniclass 2015 | |
CAWS | L20/420 Wood doorsets P21/12 Overhead door closers P21/410 Overhead door closers |
Product Reference | 9466Overhead Door Closer, Fig 6 EMag Hold Open Free Swing |
Door closer casing finish | MPModric polished etched and anodised aluminium. PSPlated polished stainless steel finish. SSPlated satin stainless steel finish. |
Accessories | Not required9156FNAlternative fixing bracket. |
Power transfer | 9471Armoured cable loop. 79053Armoured cable loop. 8066T2Power transfer hinge. |
Standard product features | Power Classification: BS EN 1155 Power size: Fixed 3. Power supply required: 24 V d.c. |
- Tested : Independently tested and complies with the requirements of BS EN 1155
- CE: Marked
- Tested : Type 9466 has been included in third party testing on timber fire door assemblies to BS EN 1634-1 and BS 476-22, providing fire resistance for 120 minutes
- CERTIFIRE, Div of Warrington Fire Certification - certficate : Type 9466 has been included in third party testing on timber fire door assemblies to BS EN 1634-1 and BS 476-22, providing fire resistance for 120 minutes
- CF 104 - Approved : For use on certain latched and unlatched assemblies and single and double doors
