9456 Overhead Door Closer

9456 Overhead Door Closer

Allgood plc Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

  • Certifire Certificate

    Certifire Certificate

    Certificate type

A range of overhead door closers to BS EN 1155.

Jump to:
+44 (0)121 359 4415 www.allgood.co.uk
Description

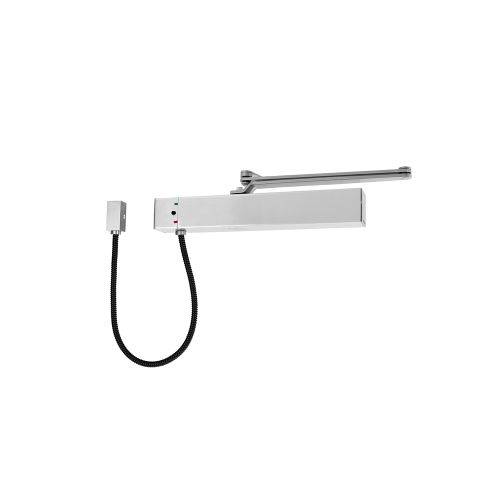

The Allgood type 9456 is a fire-hold, fixed power, overhead door closer with electromagnetic release.

The closer is designed for fixing to the closing face of the door.

Features and benefits:

  • Independently tested and complies with the requirements of BS EN 1155.
  • Classification coding: 3-8-3-1-1-3.
  • CE marked.
  • Type 9456 has been included in third party testing on timber fire door assemblies to BS EN 1634-1 and BS 476-22, providing fire resistance for 120 minutes.
  • Units are Certifire CF104 approved, for use on certain latched and unlatched assemblies and single and double doors.

Properties:

  • The angle of hold open is from 75°.
  • The unit also incorporates an integral test button for simplified regular system checking.
  • Twin LED status indicators are incorporated.
  • Units are designed for opening face fixing and are supplied with an intumescent-protected soffit plate.

General information

Uniclass 2015

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/16 Electromagnetic hold open/ Swing-Free devices

P21/471 Electromagnetic hold open/ swing free devices

Specification data - Controlled door closers

Product Reference

9456

Overhead Door Closer, Fig 6 Emag Hold Open

Door closer casing finish

MP

Modric polished etched and anodized aluminium.

PS

Plated polished stainless steel.

SS

Plated satin stainless steel.

Accessories

Not required

Alternative fixing bracket.

9156FN

Alternative fixing bracket.

Power transfer

Not required

9471

Armoured cable loop.

79053

Armoured cable loop.

8066T2

Power transfer hinge.

Standard product features

Power Classification:

BS EN 1155 Power size: Fixed 3.

Power supply required:

24 V d.c.

Third party certifications
  • Tested : Independently tested and complies with the requirements of BS EN 1155
  • CE: Marked
  • Tested : Type 9456 has been included in third party testing on timber fire door assemblies to BS EN 1634-1 and BS 476-22, providing fire resistance for 120 minutes
  • CF 104 - Approved : For use on certain latched and unlatched assemblies and single and double doors
