9451 Overhead Door Closer

Verified by manufacturer 3 months ago

Allgood Ltd

A range of overhead door closers to BS EN 1155.

Jump to:
+44 (0)121 359 4415 Website

Application

Suitable for fire resistant doors and other internal doors.

Description

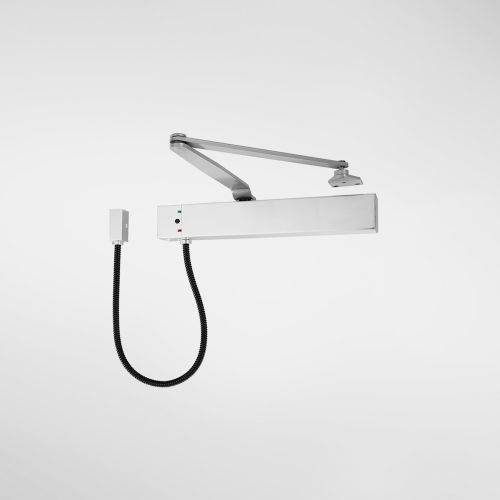

The Allgood type 9451 is a fire-hold, fixed power, overhead door closer with electromagnetic release.

The closer is designed for fixing to the opening face of the door.


Features and benefits:

  • Independently tested and complies with the requirements of BS EN 1155.
  • Classification coding: 3-5-3-1-1-3.
  • CE marked.
  • Type 9451 has been included in third party testing on timber fire door assemblies to BS EN 1634-1 and BS 476-22, providing fire resistance for 120 minutes.
  • Units are Certifire CF 104 approved, for use on certain latched and unlatched assemblies and single and double doors.
  • Power classification: BS EN Power class: Fixed 3.


Properties:

  • Delayed action is adjustable with an electronic timer (15–120 seconds).
  • The unit also incorporates an integral test button for simplified regular system checking. Twin LED status indicators are incorporated.
  • Options include type 9471 or type 79053, armoured cable loop or type 8066 CT, power transfer hinge.
  • Units are designed for opening face fixing and are supplied with an intumescent-protected soffit plate.
  • Optional face fixing bracket type 9151FN is available separately.


==========================

9451 Allgood Hardware Surface Mounted Figure 1 Electromagnetic

Hold Open Overhead Door Closer

• Independently tested to BS EN 1155

• Maximum door weight: 60kg

• Maximum door width: 950mm

• Minimum door width: 400mm

• Maximum opening angle: 180°

• Application Figure 1

• Mechanism Rack & Pinion

• Non handed

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 up to 120 mins on timber doors and up to 240 mins on Fully Insulated steel based

doors

• CE Marked

• Fixed Power size 3

• Adjustable closing speed

• Adjustable latching action

• Fixed armset with soffit fixing bracket

• Supplied with fixings to suit timber or metal doors and frames

• Electromagnetic hold open facility

• Power supplied required = 24v DC

• Current Draw = 95mA

• For Power transfer loop (NOT Included) see additional order code 9471

• 2 year mechanical warranty


==========================

General information

Color

Bronze

Silver

Finish

Anodized

Guidance for specification option:

Modric polished etched and anodized aluminium.

Polished

Guidance for specification option:

Plated polished stainless steel.

Satin

Guidance for specification option:

Plated satin stainless steel.

Material

Aluminium

Stainless steel

Warranty description

Ten year

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/16 Electromagnetic hold open/ Swing-Free devices

P21/471 Electromagnetic hold open/ swing free devices

Product range

Door Closers
Allgood Hardware / Door Operating

Specification data - Controlled door closers

Standard

To BS EN 1155.

Classification grades (minimum)

-

Category of use

3.

Durability

5

Door closer power size

3

Suitability for use on fire and smoke doors

1.

Safety

1.

Corrosion resistance

3.

Form

Overhead, face fixed.

Closer functions

Delayed closing.

Guidance for specification option:

With an electronic timer (15–120 seconds).

Materials and finishes

-

Casings

BF - Simulated bronze.

MP - Modric polished etched and anodized aluminium.

PS - Plated polished stainless steel.

SS - Plated satin stainless steel.

Manufacturer guidance

Door closer casing finish.

Type

9451.

Guidance for specification option:

Overhead Door Closer Fig 1 Emag Hold Open.

Accessories

Not required.

9151FN.

Guidance for specification option:

Alternative fixing bracket.

Power transfer

Not required.

9471.

Guidance for specification option:

Armoured cable loop.

79053.

Guidance for specification option:

Armoured cable loop.

8066T2.

Guidance for specification option:

Power transfer hinge.

Power supply

24 V d.c.

Third-party certification

Certifire CF 104 approved.

Fire resistance

To BS EN 1634-1 and BS 476-22.

Guidance for specification option:

120 minutes on timber fire door.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Literature

9451-Datasheet Iss04

9451-Datasheet Iss04
