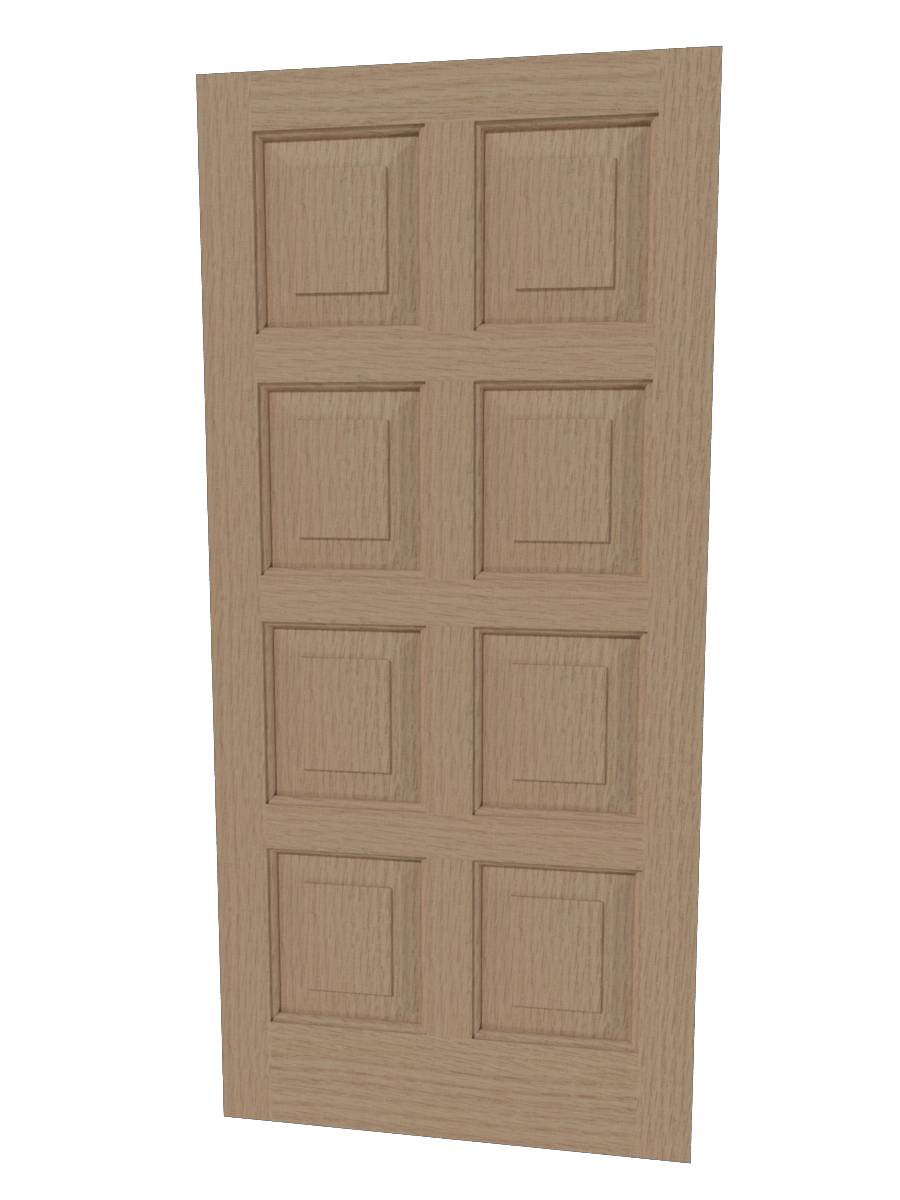

8 Panel Door
Application

Internal use.

Description

Bespoke made-to-measure door with eight panels in solid mortice and tenon, flush or recessed panel or plant-on bead. Available in a variety of panel quantities with multiple feature and design options. Ideal for heritage projects where matching existing doors is crucial.

Features and benefits:

  • IFC Fire Certification BS476: PART 22: 1987.
  • Bespoke handcrafted solid timber.
  • Manufactured in Britain.
  • Traditional mortice and tenon construction.
  • NFR, FD30, FD30s, FD60 and FD60s available.
  • Choice of profile moulds, panel design, bed and bolection moulds.
  • Glazing and acoustic options.
  • Available in mortice and tenon, recessed panel and plant on bead construction.
  • Available in various timbers and finishes.

Application:

Internal use.

General information
Features

Bespoke handcrafted solid timber, mortice and tenon

Finish

Cleaned, fully painted, lacquered, stained or primed with two coats, oil finish

Material

Solid timber (range of species available)

Shape

Rectangular

Size

Made to measure as per schedule; see manufacturing details for maximum size allowance to fire doors

Uniclass 2015
Pr_30_59_24_97 Wood doorsetsPrimary
CAWS

L20/420 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets
Product Reference

Glen Elgin

Third party accreditation

International Fire Consultants (IFC)

Standard

BS 476-22: Part 22: 1987

Configuration

Double action, double door (DADD)

Double action, single door (DASD)

Latched single action, double door (LSADD)

Latched single action, single door (LSASD)

Unlatched single action, double door (ULSADD)

Unlatched single action, single door (ULSASD)

Size

As drawing

Insert reference; see manufacturing details for maximum size allowance to fire doors.

As schedule

Insert reference; see manufacturing details for maximum size allowance to fire doors.

Performance -
Fire resistance -
Integrity

NFR

FD30

For 44 mm door leaf thickness only.

FD30s

For 44 mm door leaf thickness only.

FD60

For 58 mm door leaf thickness only.

FD60s

For 58 mm door leaf thickness only.

Frame -
FrameMaterial

Hardwood

70 x 32 mm minimum frame.

Softwood

70 x 32 mm minimum frame.

Species

Solid American black walnut

NFR, FD30, FD60.

Solid American white oak

NFR, FD30, FD60.

Solid ash American

NFR, FD30.

Solid Douglas fir

NFR, FD30.

Solid ash European

NFR, FD30.

Solid bespoke

Insert requirement.

Solid cherry American

NFR, FD30, FD60.

Solid European oak

NFR, FD30, FD60.

Solid French walnut

NFR, FD30, FD60.

Solid iroko

NFR.

Solid movingue

NFR, FD30, FD60.

Solid rock maple

NFR, FD30, FD60.

Solid sapele

NFR, FD30, FD60.

Solid tulipwood

NFR, FD30.

Solid utile

FD60.

Solid wenge

Solid West African mahogany

NFR, FD30, FD60.

Threshold

Johan DD1 - Morticed Acoustic Drop Seal tested to BS 476-22: 1987

Perimeter seals or inserts

Pyrostrip as per Johan Doors manufacturing detail

Frame finish

Cleaned for site finish

Lacquer

Stain

Two-coat primed for site finish

Oil Finish

Colour -
External

Insert requirement dependent on finish specified.

Internal

Insert requirement dependent on finish specified.

Installation fasteners

Steel Fixings as per Johan Doors manufacturing details

Door leaf -
Thickness

44 mm

For NFR, FD30 and FD30s only.

58 mm

For NFR, FD60 and FD60s only.

Core

Solid timber

Appearance class

Solid mortice and tenon construction

Panel details

Burns raised and fielded

Hogg shadow gap panel

Lang stepped panel

Ramsay flat panel

Species

Solid American black walnut

NFR, FD30, FD60.

Solid American white oak

NFR, FD30, FD60.

Solid ash American

NFR, FD30.

Solid Douglas fir

NFR, FD30.

Solid ash European

NFR, FD30.

Solid bespoke

Insert requirement.

Solid cherry American

NFR, FD30, FD60.

Solid European oak

NFR, FD30, FD60.

Solid French walnut

NFR, FD30, FD60.

Solid iroko

NFR.

Solid movingue

NFR, FD30, FD60.

Solid rock maple

NFR, FD30, FD60.

Solid sapele

NFR, FD30, FD60.

Solid tulipwood

NFR, FD30.

Solid utile

FD60.

Solid wenge

Solid West African mahogany

NFR, FD30, FD60.

Perimeter seals

Pyrostrip as per Johan Doors manufacturing detail

Finish

Cleaned for site finish

Fully painted

Lacquer

Stain

Two-coat primed for site finish

Oil Finish

Colour -
External

Insert requirement dependent on finish specified.

Internal

Insert requirement dependent on finish specified.

Door leaf glazing

FD30/ FD30s maximum 0.7 m², FD60/ FD60s maximum of 0.69 m² glazing area.

Type

Clear fully glazed

As per drawing.

Clear glazed - lower panels

Insert requirement. As per drawing.

Clear glazed - upper panels

Insert requirement. As per drawing.

Clear half glazed - lower panel

As per drawing.

Manifestation

By others

Beading -
Type

As per Johan manufacturing details

Material

As per Johan manufacturing details

Fixing

As per Johan manufacturing details

Planted stops -
Wood species

As per Johan manufacturing details

Finish

As per Johan manufacturing details

Colour

As per Johan manufacturing details

Hardware

Consult Johan Doors for ironmongery specification

Architraves -
Material

JAR1

JAR2

JAR3

JAR4

JAR5

JAR6

JAR7

JAR8

Finish

Cleaned for site finish

Lacquer

Stain

Two-coat primed for site finish

Oil Finish

Colour -
External

Insert requirement dependent on finish specified.

Internal

Insert requirement dependent on finish specified.

Accessories

None

Dado rail

Picture rail

Plinth blocks

Skirting

FrameType

Acoustic frame

Acoustic frame lining and stop

Acoustic frame rebated

Acoustic frame rebated lining and stop

Lining and stop

Lining and stop for concealed hinges

Rebated concealed hinges

Lining and stop with extension lining

Rebated

Rebated with extension lining

Split frame (sliding doors)

Profile mould

Duplex

Lambs tongue

Ovolo

Splay

Square shoulder

Stepped ovolo

Stepped rebate

Bolection mould

JOL1

JOL2

JOL3

JOL4

JOL5

JOL6

JOL7

Match existing

Special order

Insert requirement.

Bed mould

JED1

JED2

JED3

JED4

JED5

JED6

JED7

JED8

JED9

JED10

JED11

JED12

JED13

JED14

JED15

JED16

Match existing

Special order

Insert requirement.

Fanlight overpanel/ Side panel

Flush overpanel

As per drawing.

Transomed fanlight

As per drawing.

Transomed overpanel

As per drawing.

Side panel

As per drawing.

Door closers

Not required

Cam action guide rail closer

Jamb concealed closer

Overhead concealed closer

FD30 only.

Rack and pinion closer

Transom mounted closer

Hinges -
Type

1750CE Simonswerk Tritech Concealed Bearing Butt Hinge

For fire doors up to 160 kg.

1750 Simonswerk Tritech Concealed Bearing Butt Hinge

For non-fire rated doors up to 160 kg.

1850CE Simonswerk Samson Concealed Bearing Butt Hinge

For fire doors up to 100 kg.

1850 Simonswerk Samson Concealed Bearing Butt Hinge

For non-fire rated doors up to 100 kg.

TE 340 3D Simonswerk Concealed Hinge System

Non-fire doors only up to 80 kg.

Finish

Aged Brass

Antique Brass

Antique Nickel

Black Nickel

Copper Bronze

Copper

Honeycombe

Imitation Bronze

Midnight

Pear Nickel

Polished Chrome

Polished and lacquered

Polished Nickel

Satin Brass and lacquered

Satin Chrome

Satin Nickel

Stainless Steel effect

Finials

Not required

Acorn

Adam

Apollo

Basic

Cross

Deco

Orb

Planet

Regal

Saturn

Soft

Star

Top

Urn

Decorative finish

Not applicable

Flowing Bark

Recurring Rectangles

Gator Reflections

Skateline

Standard product features

Colour:

Wide range available dependent on species and finish.

Features:

Bespoke handcrafted solid timber, mortice and tenon.

Finish:

Cleaned, fully painted, lacquered, stained or primed with two coats, oil finish.

Material:

Solid timber (range of species available).

Shape:

Rectangular.

Size:

Made to measure as per schedule; see manufacturing details for maximum size allowance to fire doors.

Country of origin:

United Kingdom.

Country of manufacture:

United Kingdom.

Third party certifications
  • International Fire Consultants (IFC): BS476: PART 22: 1987
