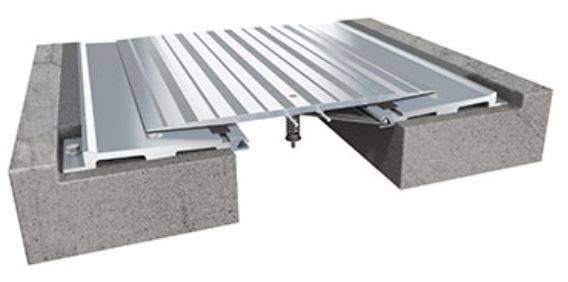

787 Vehicular Expansion Joint

Verified by manufacturer 4 months ago

787-A01-100

Inpro Variant:

787 Vehicular Expansion Joint.

Jump to:
07494249485 Website

Application

Floor to floor expansion joint suitable for vehicular loading.

Description

Floor to floor expansion joint suitable for vehicular loading.


Features and benefits:

  • Seismic capable system designed to meet the needs of open structures and vehicular loading.
  • Industry unique profile drastically reduces the lateral impact (shear forces) encountered with repeated vehicular traffic. This maximizes product lifespan and ensures against premature fatigue.
  • Tapered plate and frames provide a seamless, ADA compliant design that constantly levels itself and maintains a flush condition.
  • Heavy duty design uses a thick high strength centring bar and spring assembly, to resist vibrations.
  • 25 mm frame depth ensures no interference in the reinforcement or cabling structure.
  • Serrated cover plate for added slip resistance.
  • Integral high durometer seal deters water from entering the system and acts as a noise dampening device.
  • A reinforced vapour barrier is included.
  • System designed for areas of low speed traffic.

General information

Shape

Rectangle

Finish

Mill

Material

Aluminium

Warranty description

Five year

Guidance for specification option:

Standard limited warranty against material and manufacturing defects for a period of not less than five years when installed in accordance with manufacturer’s recommendations.

Uniclass

Pr_35_90_53_53 Metal section movement jointsPrimary

CAWS

M10/476 Metal section movement joints

M13/375 Strip movement joints

M13/395 Metal section movement joints

M40/80 Strip movement joints

M40/825 Strip movement joints

M40/835 Metal section movement joints

M41/445 Strip movement joints

M41/465 Metal section movement joints

M50/740 Edgings and cover strips

M51/510 Edgings and cover strips

Product range

Expansion Joint Systems

Specification data - Metal section movement joints

Joint width (nominal)

100 mm.

Edging

-

Material

Aluminium.

Colour

Natural.

Insert

-

Material

Aluminium.

Colour

Self coloured.

Options

Not required.

Fire barrier.

Vapor barrier.

Joint type

Floor to floor.

Frame height

25 mm.

Sightline

342 mm.

Cut-outs

152 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Recyclability

95%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

71 %

Similar products from Inpro

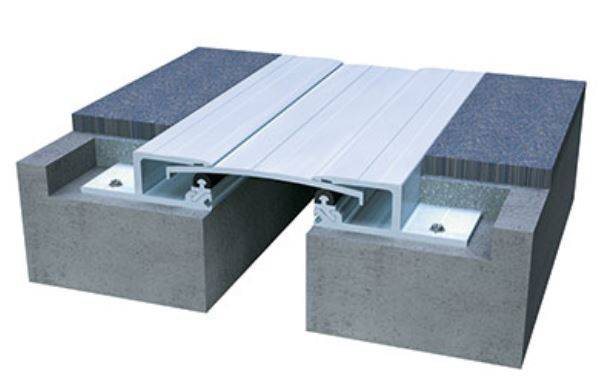

101 Floor Expansion Joint
