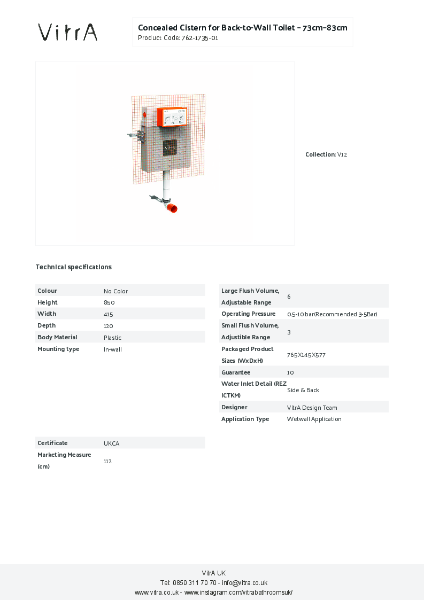

762-1735-01 - V-Fix concealed cistern for back-to-wall WC pans, 12 cm cistern. 3/6 ltr - WC Cistern
Verified by manufacturer 7 days ago
In-wall mounted concealed cistern for back-to-wall toilets with adjustable flush volumes and plastic body.
Application
Suitable for installation in wetwall applications for back-to-wall toilets.
Description
Concealed cistern for back-to-wall toilet with adjustable flush volumes and in-wall mounting.
Features and benefits:
- Adjustable large flush volume of 6 L.
- Adjustable small flush volume of 3 L.
- Operating pressure range from 0.5–10 bar, recommended 3–5 bar.
- Plastic body material for durability.
- Water inlet detail suitable for side and back connections.
- Certified to UKCA standards.
- Suitable for wetwall application.
- Product dimensions: 415 mm width x 120 mm depth x 850 mm height.
- Ten year guarantee provided.
General information
Color | Grey White |
Material | Plastic |
Shape | Rectangle |
Length | 120 mm Manufacturer guidanceDepth. |
Width | 415 mm |
Height | 850 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
SKU Code | 762-1735-01 |
GTIN/EAN | 8683124007067 |
Specification data - WC cisterns
Classification data | |
Approvals | WRAS-approved. |
Form | Concealed. |
Operation | Push-button. |
Materials | |
Body | Plastics. |
Finish and colour | White. |
Capacity | 6/3 L. |
Water supply, overflow and outlet holes | |
Water supply | Side and back inlets. |
Sustainability data
Material | Plastic |
Literature
762-1735-01
