7500 Series (Stainless Steel) Tree Pit Cover

Verified by manufacturer 25 days ago

Access 360

Stainless steel tree pit covers for cars and light delivery vehicles up to 5 tonne pneumatic tyre wheel load.

Jump to:
+44 (0)1827 718222 Website

Application

Suitable for interior and exterior hard floors.

Description

Stainless steel medium duty tree pit cover for up to 5000 kg pneumatic tyre wheel loads (cars and light delivery vehicles) on hard floor surfaces, providing easy access to tree root ball..


Features and benefits:

  • Provides easy access to tree root ball using lifting keys.
  • Facilitates easy ongoing maintenance of trees.
  • Resistant to rust and corrosion.
  • Manufactured in accordance with BS EN ISO 9001.
  • Removable central stainless steel tree rings.
  • Weight (when filled): 155 kg/m².
  • Overall frame size: Clear opening size plus 130 mm.

General information

Color

Silver

Finish

Galvanized

Material

Stainless steel

Shape

Square

Length

1020 mm

Width

1020 mm

Height

75 mm

Uniclass

Pr_45_63_64_87 Tree grillesPrimary

CAWS

Q10/305 Tree grilles and surrounds

Q50/262 Tree grilles

Q50/30 Street furniture

Product range

Medium Duty Tree Pit Covers

Specification data - Tree grilles

Material

Show edge manufactured from stainless steel with a steel baseplate and reinforcement.

Guidance for specification option:

Galvanized carbon steel support beams and pockets.

Finish

Galvanized steel.

Colour

Silver.

Shape

Square.

Size

230 x 1030 mm.

Internal aperture

100 x 900 mm.

Guidance for specification option:

Consult manufacturer.

Accessories

None.

Sets of combined lifting/ securing keys.

Cover skate lifting device.

Recessed support beam pockets.

Guidance for specification option:

For use where support beams are required.

Surface mounted support beam pockets.

Guidance for specification option:

For use where support beams are required.

Cover and frame

Stainless steel, grade 1.4301 (304).

Guidance for specification option:

Standard.

Stainless steel, grade 1.4401 (316).

Base plate

Galvanized steel.

Guidance for specification option:

Standard.

Stainless steel, grade 1.4301 (304).

Stainless steel, grade 1.4401 (316).

Lifting points

Not required.

Barrel only.

Inset.

Depth

75 mm.

Third-party approval

CERTIFIRE fire rated to BS 476 Part 22.

Sustainability data

Material

Stainless steel

Literature

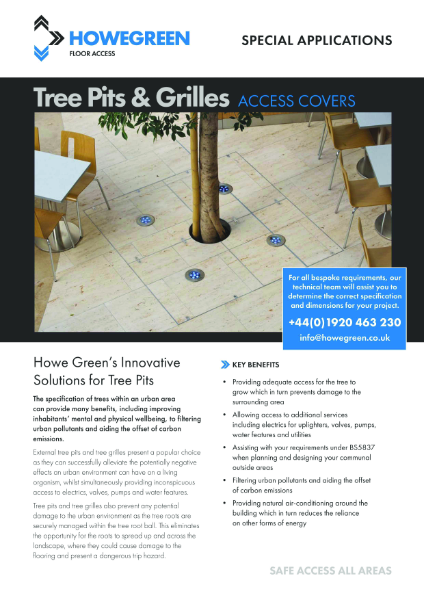

Howe Green Tree Pits and Tree Grilles

Howe Green Tree Pits and Tree Grilles
