6L Cistern with Single or Double Sensor Flush

Verified by manufacturer 5 months ago

CIST108 - Single Flush

Bushboard Washroom Systems Ltd Variant:

Sensor wave operated, concealed single or double flush cistern.

Jump to:
+44 (0)1536 533620 Website

Application

Compatible with all SanCeram back to wall and wall hung WCs.

Description

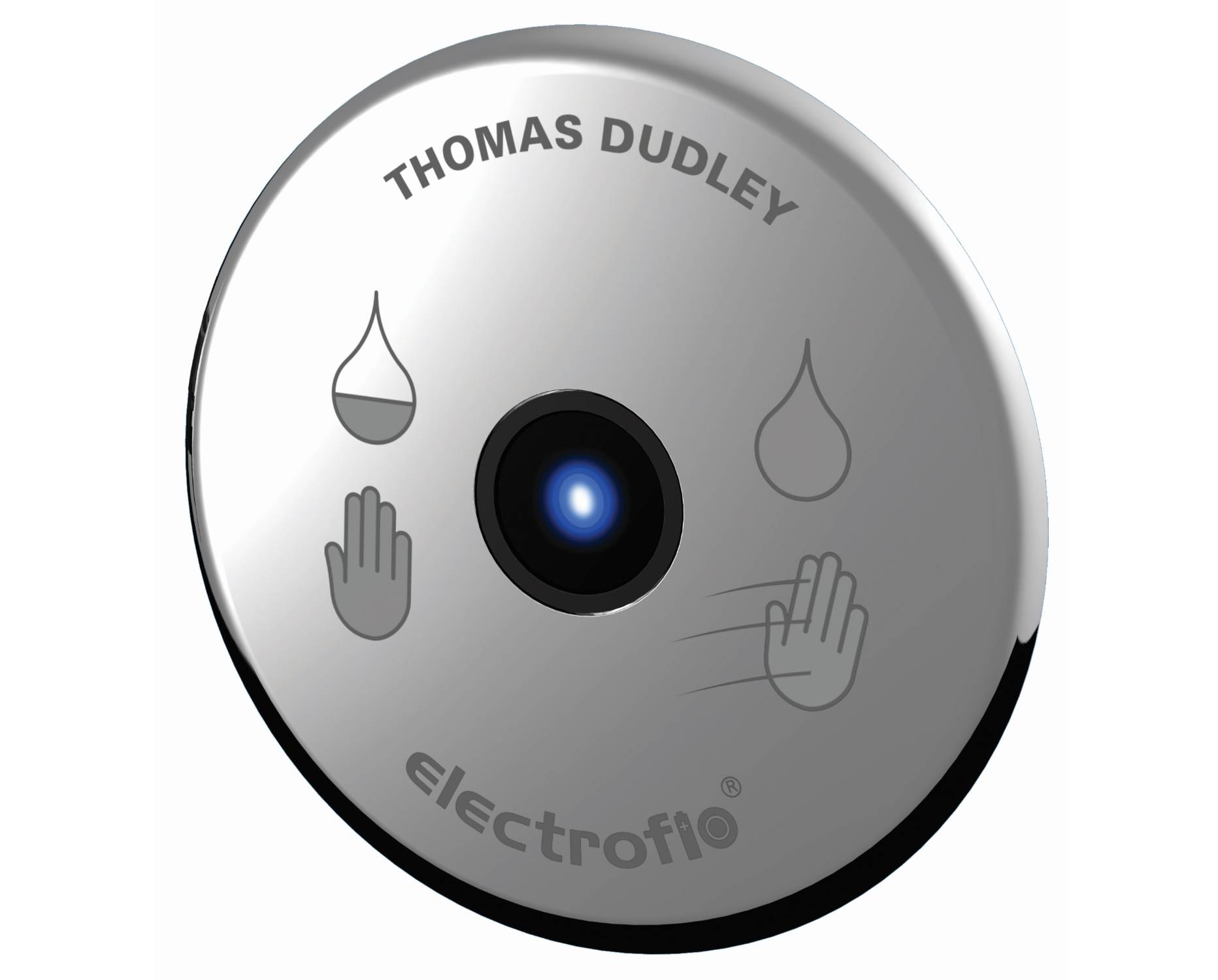

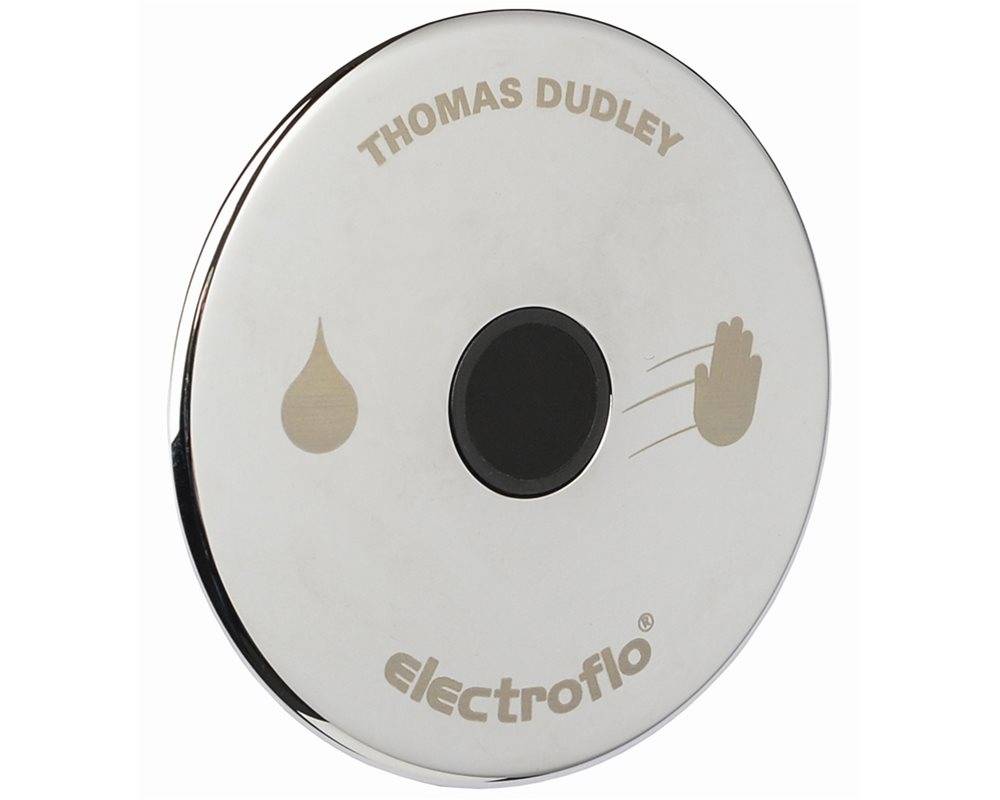

Concealed single or double flush cistern. Thomas Dudley sensor, wave operation and battery powered.


Features and benefits:

  • Effective flush volume of 4.5 litre from a 6 litre dual flush.
  • 6 litre flush can be quickly and easily converted to 5 or 4 litre single flush before or after installation.
  • Supplied pre-assembled for quick and easy installation.
  • Internal overflow warning.
  • Top access.
  • Side inlet.
  • Compact design fits neatly into 150 mm ducts.
  • Supplied with 390 x 290 mm push-fit flush pipe.
  • WRAS approved flushing and inlet valve.
  • Sensor Features
  • Sensor surround is 100 mm diameter with operating instructions.
  • Compact control box fits neatly onto the rear panel into which the sensor is installed.
  • 400 mm long sensor cable.
  • Powered by 4 x AA batteries
  • Chrome effect finish.
  • Manufactured under BS EN IS0 9001 and BS EN ISO 14001.
  • Approved by the European Water Label Scheme.
  • Optional battery to mains converter - CIST110

General information

Color

Silver

Finish

Chrome

Material

High density polystyrene

Shape

Circle

Width

100 mm

Warranty description

Five year

Uniclass

Pr_40_20_93_89 WC cisternsPrimary

CAWS

N13/15 Urinals and cisterns

N13/75 Installing cisterns

N13/300 WCs and cisterns

Specification data - WC cisterns

Standard

To BS EN IS0 9001 and BS EN ISO 14001.

Approvals

European Water Label Scheme and Water Regulations Approval Scheme (WRAS)-approved.

Form

Concealed.

Operation

Automatic, sensor-operated.

Materials

-

Body

High density polystyrene.

Capacity

6 L.

Water supply, overflow and outlet holes

-

Water supply

Side inlet.

Outlet

Bottom outlet.

Fixings

Once piece hanging bracket.

Power

CIST110 - Transformer for mains power (240 V).
