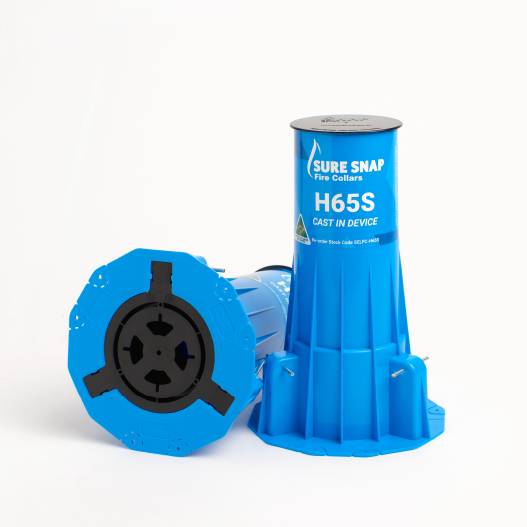

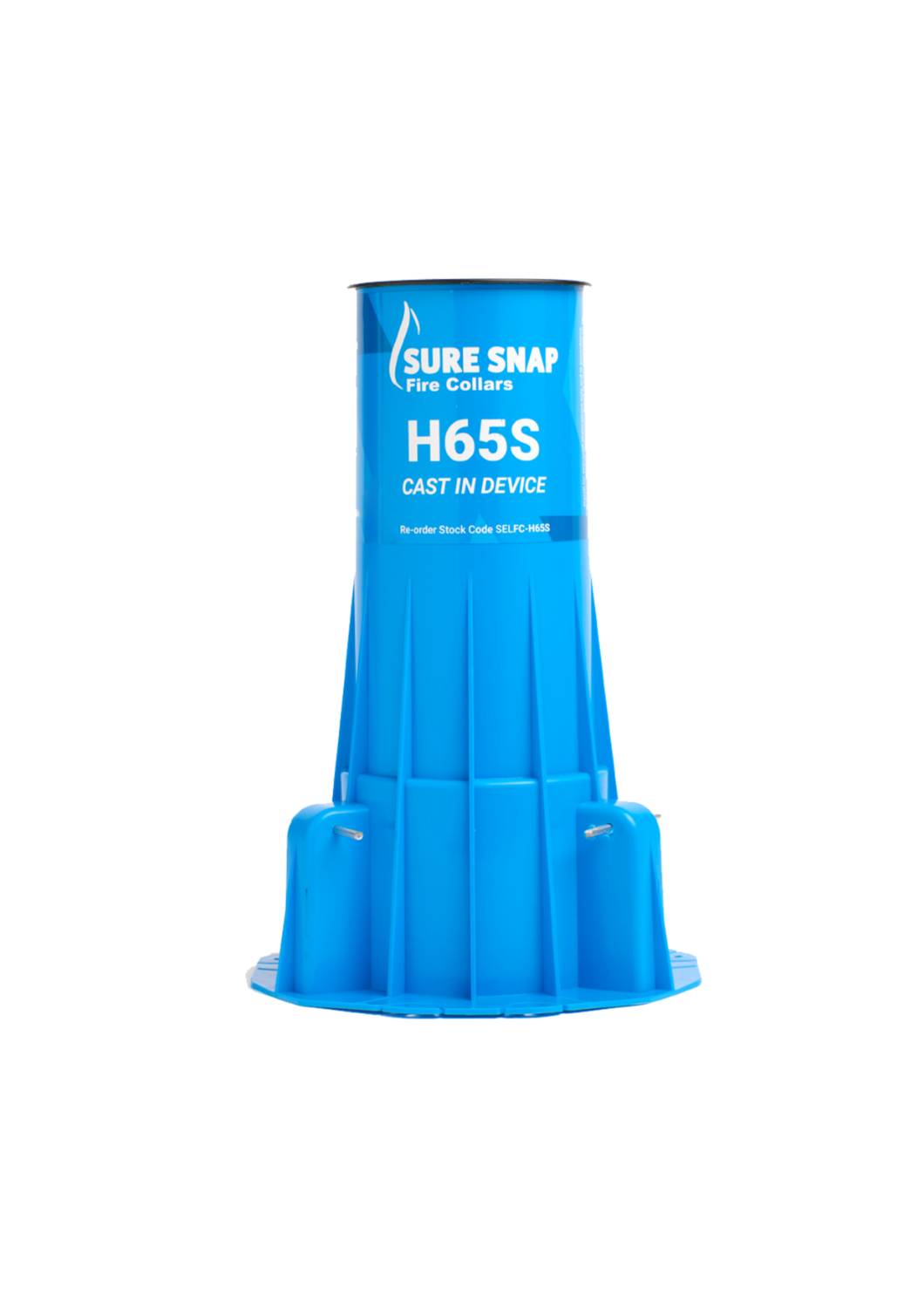

65mm Sure Snap Cast-in Fire Collar - Fire Collar

Name: 65mm Sure Snap Cast-in Fire Collar - Fire Collar
Brand: Sure Snap Fire Collars
SKU: gRChZHPCmDCM8cWAwZkA6H

Verified by manufacturer 24 days ago

Sure Snap Fire Collars

Product certifications:

LPCB Certification
Certificate type
BRE Certificate
Certificate type

SURE SNAP Fire Collars are passive firestop cast-in devices (CID) that prevent the spread of fire and smoke.

Jump to:

Request BIM

020 8699 6777 Website

Application

Concealed intumescent pipe collars:

For the sealing of openings in concrete compartment floors 150mm or thicker.
Compatible with the following pipe materials:
- PVC
- PVC + Socket
- PP
- PP + Socket
- PE-HD
- PE-X
Suitable for installation in concrete slabs built with traditional formwork
For use in new building construction.

Description

The 65mm SURE SNAP Cast-in Fire Collar (firestop cast-in device (CID)) is a one-step fire protection solution, designed to seal pipe penetrations in concrete slabs and prevent the spread of fire and smoke.

Features and benefits:

Patented spring activation: Rapid closure seals pipe penetrations in fire conditions.
Extensive Coverage: Range of pipe types and coupling approvals.
Quick and simple installation: Reduces installation time with an efficient, user-friendly design.
Modular connection: Allows close installation of multiple penetrations.
Durable and highly visible casing: Withstands construction site conditions.
Snap-off nail points: Ensures a clean finish after formwork removal.
Sealing rubber ring: Prevents debris and water ingress post-installation.
Stackable extensions: Adapts to slab thicknesses over 250 mm.
Fire resistance: Tested to EN 1366-3:2009 and Extended Application to BS EN 15882-3:2009.

General information

Color	Blue
Material	Polypropylene Intumescent
Shape	Circle
Length	163 mm
Width	163 mm
Height	250 mm
Warranty description	Ten year

Uniclass	Pr_65_52_61_15 Concealed intumescent pipe collarsPrimary
CAWS	P12/370 Pipe collars P12/43 Pipe collars

SKU Code	SELFC-H65S

Specification data - Concealed intumescent pipe collars

Classification data
Third-party certification	Listing in the Loss Prevention Certification Board (LPCB) register.
Sizes	65 mm.
Fire performance	Fire rating: ≤4 h (EI 240). Manufacturer guidance Fire performance of the collar depends on the pipe material and size. Refer to the Extended Application Report for the full range of approvals.
Standards	To BS EN 15882-3:2009 (tested under EN 1366-3:2009).
Integral accessories	Locator plate and collar cap.
Accessories	Not required. 65 x 50 mm extension for Sure Snap Cast in Fire Collar - SELFC-65EXT. Guidance for specification option: Designed to provide additional height for fire collar installations in deeper concrete slabs. Each extension adds 50 mm to the fire collar. For use individually or in multiples.
Slab depth	≥ 150 mm.
Diameter	H65S - 79 collar ID: For 26–64 mm nominal sized pipes.
Solubility in water	Insoluble in water and generally chemical inert.
