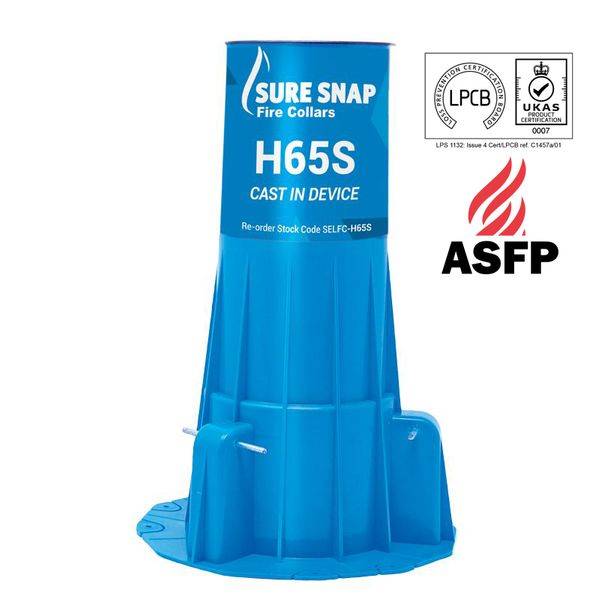

65mm Sure Snap Cast in Fire Collar - Fire Collar

Name: 65mm Sure Snap Cast in Fire Collar - Fire Collar
Brand: Sure Snap Fire Collars
SKU: gRChZHPCmDCM8cWAwZkA6H

Verified by manufacturer today

Sure Snap Fire Collars

Product certifications:

BRE Certificate
Certificate type
BRE Certificate
Certificate type

A fire collar to seal pipe penetrations in concrete slabs and prevent the spread of fire and smoke.

Jump to:

07903198479 Website

Application

For the sealing of openings in concrete compartment floors for the below pipes:
- PVC
- PP
- PE-X
- PE-HD
- Rehau Raupiano
- Valsir Triplus
- Wavin Astolan
For use on slabs 150 mm thickness and up.

Description

The 65mm Sure Snap Cast In Fire Collar is a fire protection solution, designed to seal pipe penetrations in concrete slabs and prevent the spread of fire and smoke.

Features and benefits:

Patented spring activation: Rapid closure seals pipe penetrations in fire conditions.
Up to 4-hour fire resistance: Compliant with BS EN 15882-3 and EN 1366-3.
Durable and highly visible casing: Withstands construction site conditions.
Snap-off nail points: Ensures a clean finish after formwork removal.
Sealing rubber ring: Prevents debris and water ingress post-installation.
Stackable extensions: Adapts to slab thicknesses over 250 mm.

General information

Color	Blue
Material	Polypropylene Intumescent Rubber Steel
Shape	Circle
Length	163 mm
Width	163 mm
Height	250 mm

Uniclass	Pr_65_52_61_15 Concealed intumescent pipe collarsPrimary
CAWS	P12/370 Pipe collars P12/43 Pipe collars

SKU Code	SELFC-H65S

Specification data - Concealed intumescent pipe collars

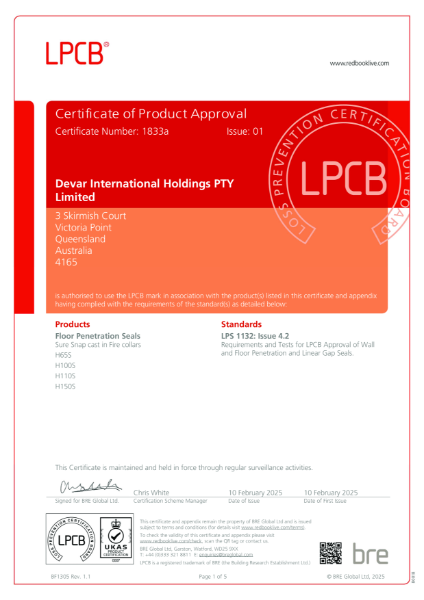

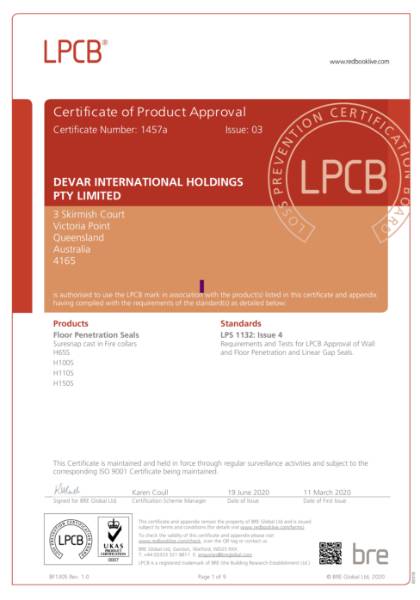

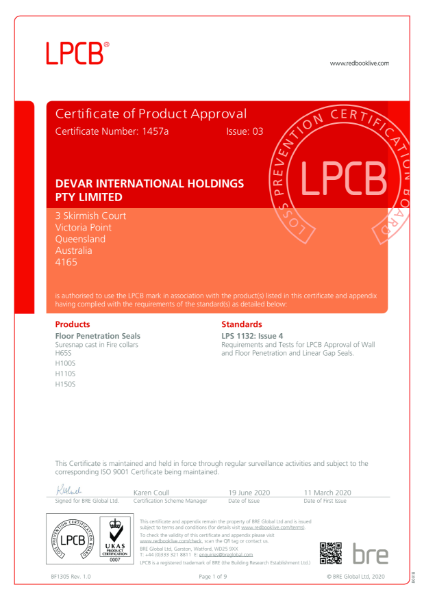

Third-party certification	Listing in the Loss Prevention Certification Board (LPCB) register.
Sizes	65 mm.

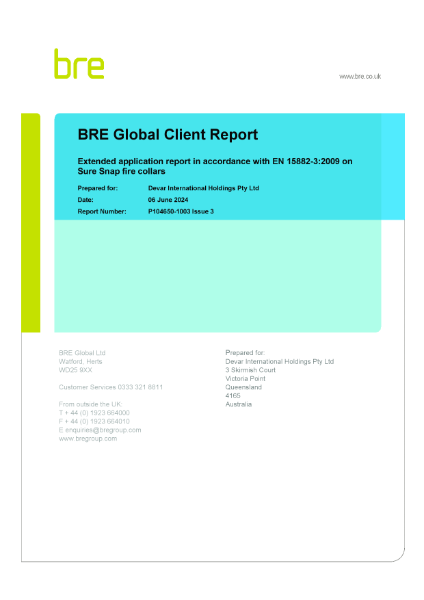

Fire performance	Fire resistance: 180/ 180 integrity/ insulation. Guidance for specification option: For 55–110 mm diameter PVC pipes, with 2–7.2 mm pipe wall thickness. Fire resistance: 120/ 180 integrity/ insulation. Guidance for specification option: For 50–110 mm diameter PP pipes, with 2.1–3.8 mm pipe wall thickness. Fire resistance: 180/ 240 integrity/ insulation. Guidance for specification option: For 50–110 mm diameter PP pipes plus coupling, with 2.2–3.8 mm pipe wall thickness. Fire resistance: 120/ 120 integrity/ insulation. Guidance for specification option: For 50–110 mm diameter PE-HD pipes, with 3.4–10.9 mm pipe wall thickness. Manufacturer guidance Refer to 'BRE Global Client Report P104650-1003 Issue 2' for details.

Standards	To BS EN 15882-3:2009 (tested under EN 1366-3:2009).
Integral accessories	Locator plate and collar cap.
Accessories	Not required. 65 x 50 mm extension for Sure Snap Cast in Fire Collar - SELFC-65EXT. Guidance for specification option: Designed to provide additional height for fire collar installations in deeper concrete slabs. Each extension adds 50 mm to the fire collar. For use individually or in multiples.
