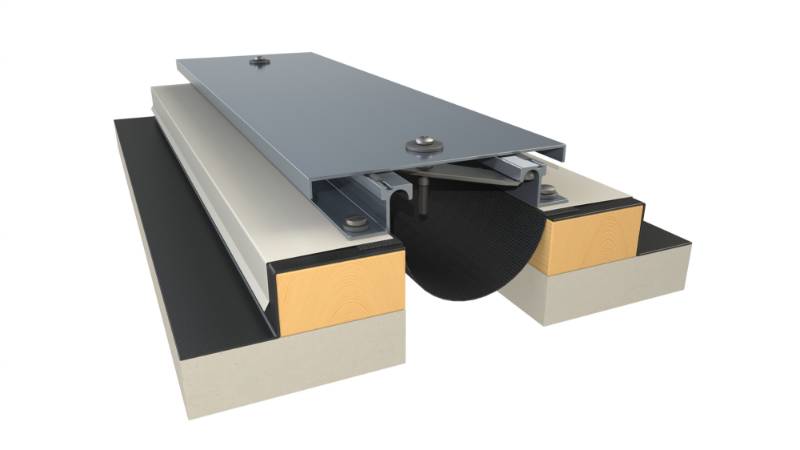

651 Exterior Wall and Roof Expansion joint cover

Verified by manufacturer 4 months ago

651-A07-025

Inpro Variant:

The 651 exterior wall system is designed for multi-directional movement and can be surface mounted to address uneven joint widths.

Jump to:
07494249485 Website

Application

Surface mount expansion joint system suitable for exterior wall to wall or ceiling to ceiling applications.

Description

The 651 exterior wall system is designed for multi-directional movement and can be surface mounted to address uneven joint widths.


Features and benefits:

  • Easy on site assembly and installation.
  • Multi-directional seismic movement.
  • Moisture barrier included.
  • Neoprene weather washers prevent leaking where fasteners penetrate frames/covers.
  • Surface mount accommodates uneven joint widths.
  • Factory formed transitions available.
  • Plate available in stainless steel.
  • +100% movement available.

General information

Color

-

Manufacturer guidance

Available in a range of colours.

Finish

Anodized

Guidance for specification option:

Clear.

Material

Aluminium

Warranty description

Five year

Guidance for specification option:

Standard limited warranty against material and manufacturing defects for a period of not less than five years when installed in accordance with manufacturer’s recommendations.

Uniclass

Pr_35_90_53_53 Metal section movement jointsPrimary

CAWS

Q21/470 Expansion joints

Specification data - Metal section movement joints

Joint width (nominal)

12 mm.

Edging

-

Material

Aluminium.

Finish

Anodized.

Guidance for specification option:

Clear.

Colour

Natural.

Insert

-

Material

Aluminium.

Guidance for specification option:

As standard.

Stainless steel.

Colour

Guidance for specification option:

Optional PVDF finishes available.

Manufacturer guidance

Clear Anodized or Powder coating and Color Anodizing available

Options

Not required.

Fire blanket system.

Joint type

Wall to wall.

Frame height

32 mm.

Sightline

108 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

Recyclability

95%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

69 %

BIM objects

Platform Compatible Version
Revit
-

1

Similar products from Inpro

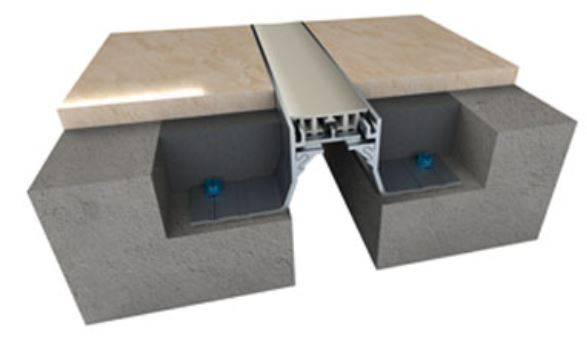

101 Floor Expansion Joint

101 Floor Expansion Joint

101 Series Wall To Wall Expansion Joint System

101 Series Wall To Wall Expansion Joint System

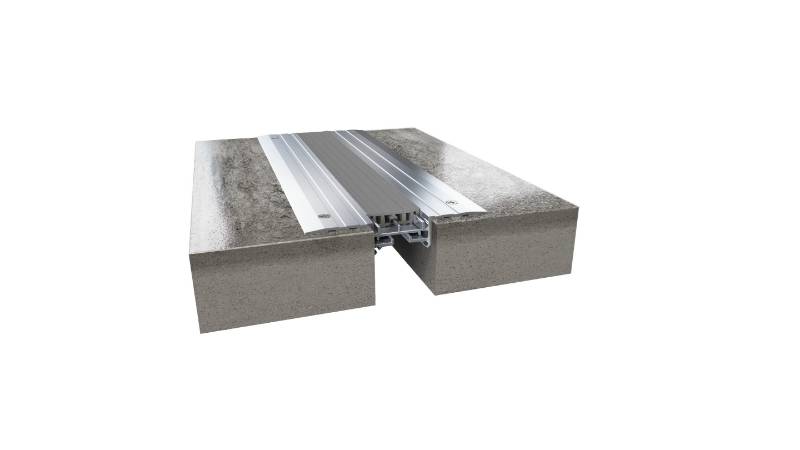

113 Series Wall Expansion Joint System

113 Series Wall Expansion Joint System

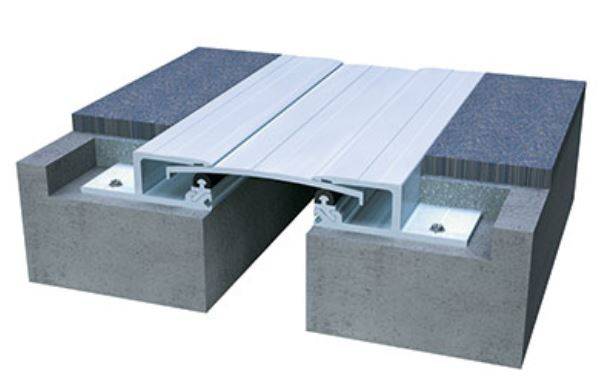

300 Recessed Mount Floor Expansion Joint

300 Recessed Mount Floor Expansion Joint

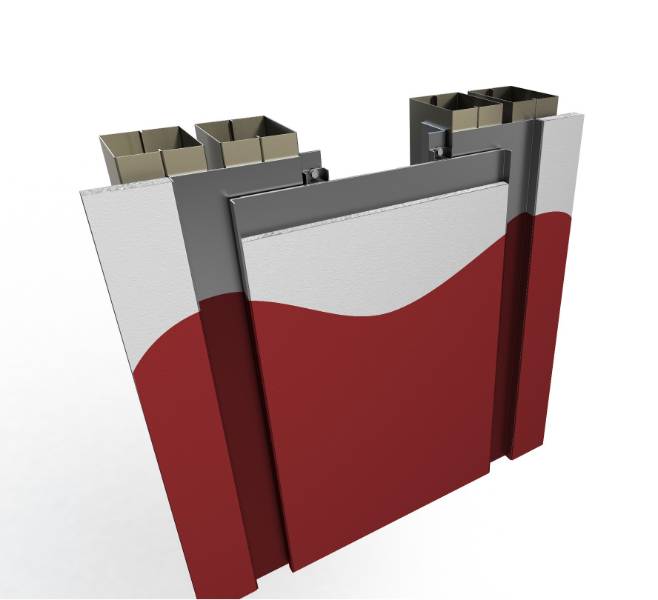

353 Recessed Mount Wall Expansion Joint System

353 Recessed Mount Wall Expansion Joint System

432 Series Floor Expansion Joint System

432 Series Floor Expansion Joint System

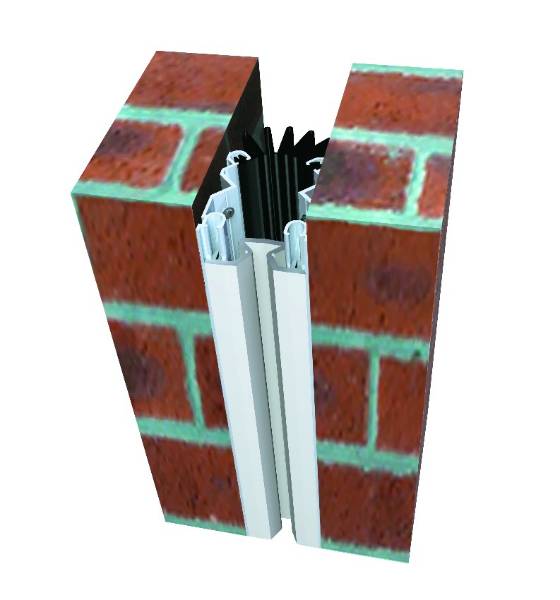

615 Exterior Wall And Ceiling System

615 Exterior Wall And Ceiling System

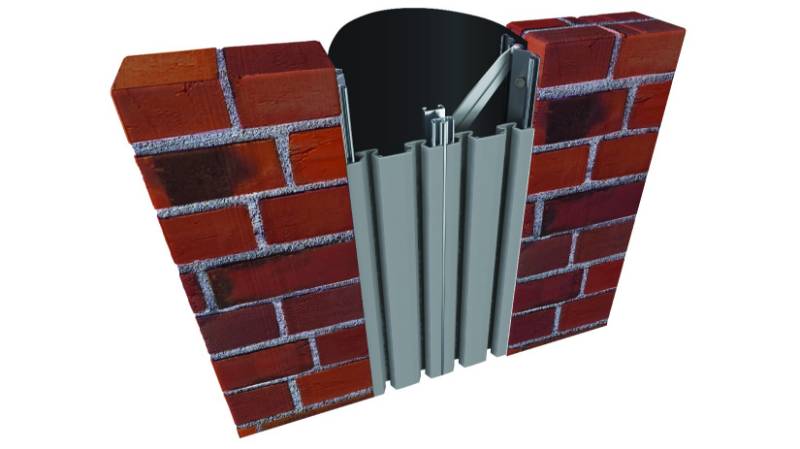

616 Flush Mount Expansion Joint System

616 Flush Mount Expansion Joint System

672 Exterior Roof Bellows Expansion Joint Cover

672 Exterior Roof Bellows Expansion Joint Cover

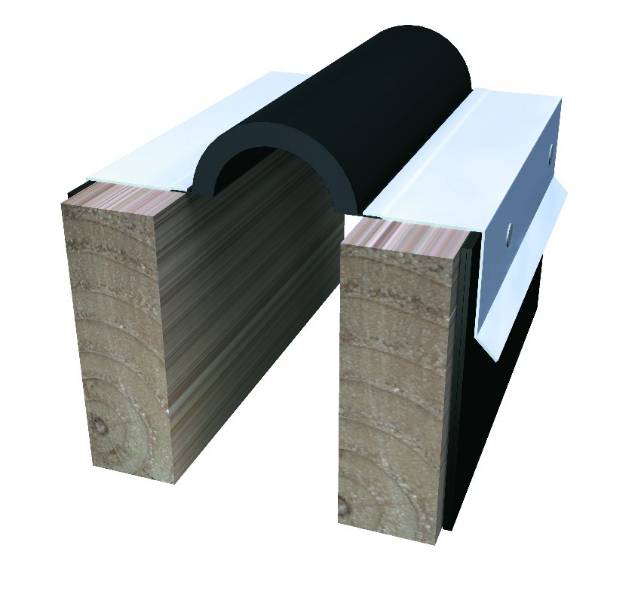

674 Exterior Roof Bellows Expansion Joint Cover
