6 Way CMD 32A Power Hub
Verified by manufacturer 2 months ago
A 32A Power Hub with up to six power outputs.
Application
Applicable for use on mains power input and output to allow multiple power hubs to be connected together. Suitable for buildings where a conventional power track system can't be installed due to height restrictions, obstacles in the floor void or where the slab is uneven. This system is also used where a modular solution is preferred.
Description

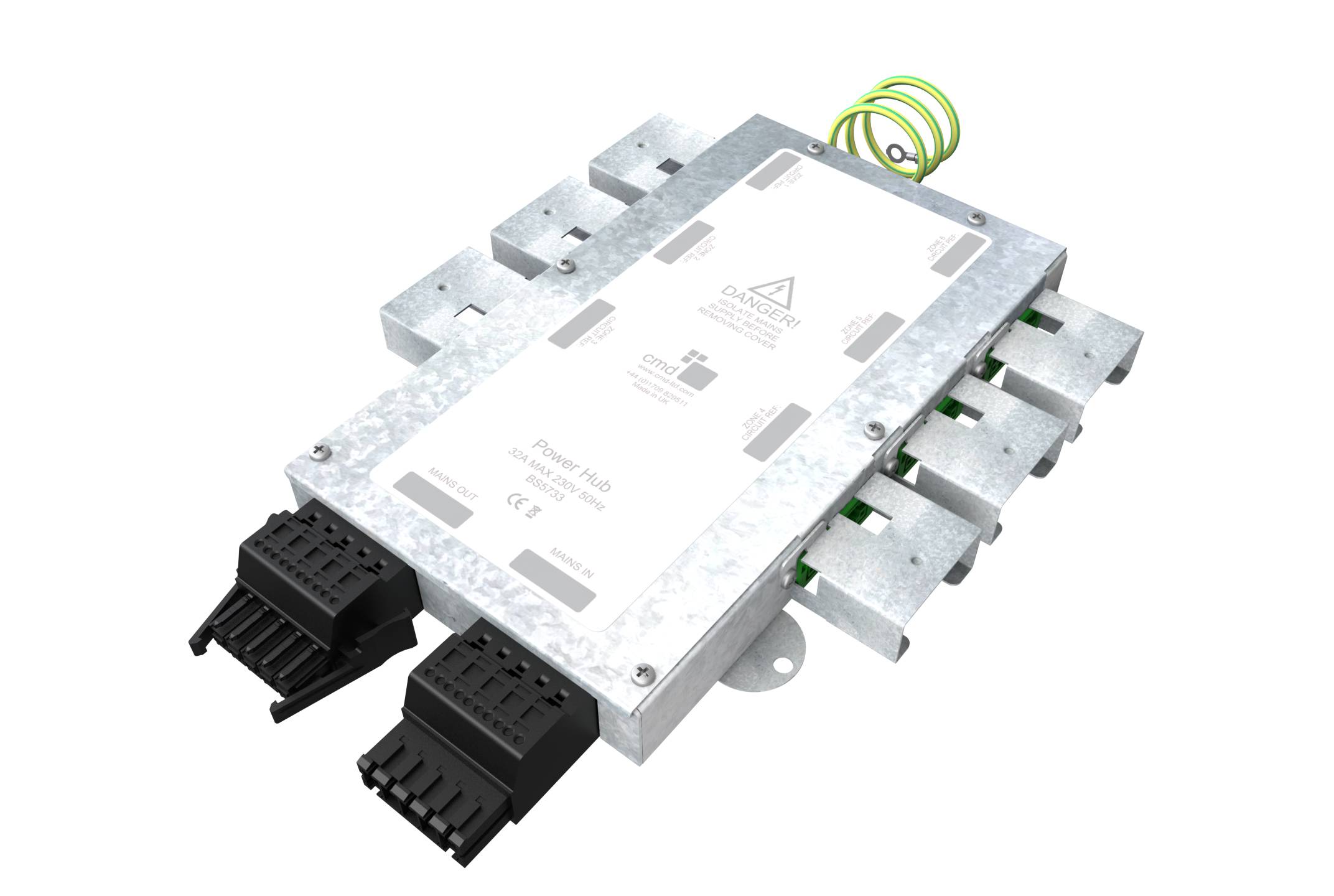

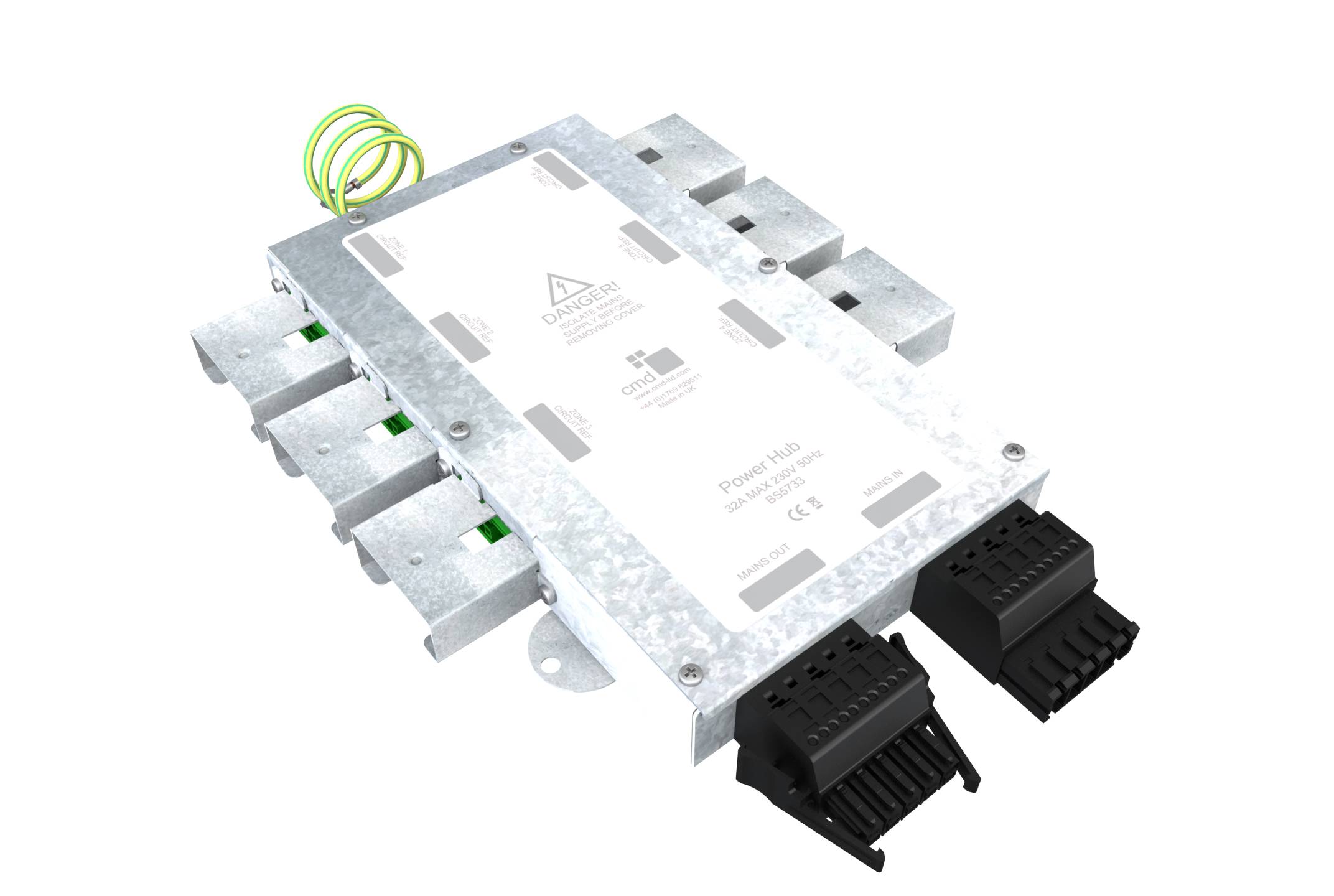

The 32 A Power Hub has been designed to provide up to six power outputs from a single mains input. This low profile power hub utilizes connectors complying with BS EN 61535 and is made from 0.9 mm galvanized steel to provide a strong and robust solution and comes complete with three retractable fixing brackets.
Features and benefits:
- Compact, low profile design.
- Requires a separate connecting mains supply.
- Up to six outgoing power sockets.
- Supplied with pre-installed Earthing cable.
General information
Color | Silver |
Finish | Galvanized |
Material | Steel |
Shape | Rectangle |
Length | 343 mm |
Width | 230 mm |
Height | 38 mm |
Warranty description | One year |
Uniclass | |
CAWS | V90/275 Small power system design V90/275 Small power system design |
Specification data - Multi-gang power outlets
Standard | To BS EN 61535. |
Current rating | 32 A. |
Outgoing ways | |
Type | Individually switched socket outlets. |
Quantity | 6. |
Material: | Galvanized steel. Guidance for specification option: 0.9 mm thick. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
