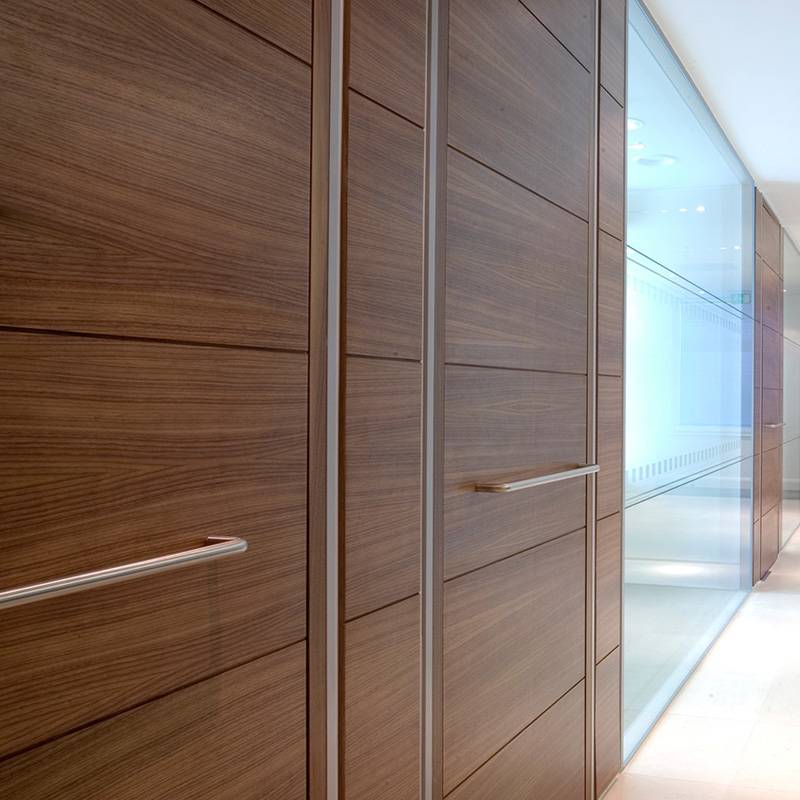

54 mm Thick Acoustic Timber Door In Microflush Frame

Verified by manufacturer 22 days ago

Optima Third party certifications:
  • BM Trada

    BM Trada

    Certificate type

Acoustic core, single leaf, rebated timber door in aluminium frame, customizable to meet project requirements.

Jump to:
+44 (0)1494 492725 Website

Application

Suitable for office and workplace applications in a commercial sector environment.

Description

54 mm thick, single-leaf doorset, featuring a solid acoustic core square-edged leaf in a high-quality veneered or spray-lacquered finish.


Features and benefits:

  • Hanging options include high-quality grade 1.4301 (304) stainless steel butt hinges or Optima’s stainless steel Quad hinges where an offset pivot is required.
  • Quad hinges can be used with floor springs or free-swing spindles.
  • Part M compliant clear opening.
  • Compatible with Optima’s entire range of glass partitioning systems.

General information

Color

Brown

Silver

White

Other

Finish

Veneered

Lacquered

Material

Timber

Wood

Aluminium

Shape

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

This excludes installation, moving parts, ironmongery and fire rated glass which are covered elsewhere (see Optima policy document for more information).

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Product range

Doorsets

Specification data - Wood doorsets

Third party accreditation

BM Trada certified.

Standard

To ISO 14001:2015 Environmental Management System and ISO 9001:2015 Quality Management System.

Configuration

As drawing.

Guidance for specification option:

Insert drawing reference number.

As schedule.

Doorset size

Guidance for specification option:

Available up to 3000 mm in height. Overall frame width: 986–1006 mm.


Insert requirements or drawing reference number.

Format

Single leaf, single action, rebated in Microflush frame.

Performance

-

Acoustic performance

Up to 38 dB.

Manufacturer guidance

Acoustic rating (Rw, maximum):

Accessibility

Part M compliant.

Frame

-

Material

Aluminium.

Finish

Anodized.

Guidance for specification option:

25 microns thickness.

Grained.

Guidance for specification option:

Brightened and protective anodized.

Polished.

Guidance for specification option:

Brightened and protective anodized.

Powder-coated.

Guidance for specification option:

Specify colour requirements below.

Colour

Not required.

Guidance for specification option:

For anodized, grained and polished options (above).

Colour, RAL.

Guidance for specification option:

Insert requirement; contact manufacturer for more information.

Colour, RAL 9006 Silver.

Guidance for specification option:

50 microns, 30% gloss (nominal).

Colour, RAL 9010 White.

Guidance for specification option:

50 microns, 30% gloss (nominal).

Manufacturer guidance

Powder-coated.

Frame accessories

Stainless steel butt hinges.

Guidance for specification option:

High-quality grade 1.4301 (304).

Optima stainless steel Quad hinges.

Guidance for specification option:

Where an offset pivot is required.

Door leaf

-

Thickness

54 mm.

Core

Solid core.

Guidance for specification option:

Acoustic.

Panel details

Leaf width: 926 mm.

Perimeter seals

Acoustic.

Finish

Veneered.

Guidance for specification option:

Insert requirements.

Spray lacquer.

Guidance for specification option:

Insert requirements.

Glazing

-

Type

Not required.

Required.

Guidance for specification option:

Insert requirements.

As drawing.

Guidance for specification option:

Insert drawing reference number.

As schedule.

Manufacturer guidance

For glazed system options refer to Optima 117 Plus literature or contact manufacturer for more details.

Door accessories

Not required.

Floor springs.

Free swing spindles.

Hardware

Guidance for specification option:

Insert requirement; contact manufacturer for more information.

Locking

Dead lock.

Sash lock.

Latch.

Sustainability data

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

kg·CO₂e/kg

Guidance for specification option:

See Environmental Product Declaration literature for LCA data.

BIM objects

Platform Compatible Version
Revit

Revit 2016

1

Third party certifications

BM Trada

BM Trada

009109 (3) - ISO 14001 - Optima Products Limited

BM Trada

BM Trada

000016 (4) - ISO 9001 - Optima Products Limited

Literature

Optima Doors Product Summary

Optima Doors Product Summary

Optima 117 Plus Product Summary

Optima 117 Plus Product Summary

000005 (3) - Warranty - Company Policy

000005 (3) - Warranty - Company Policy
