Compare

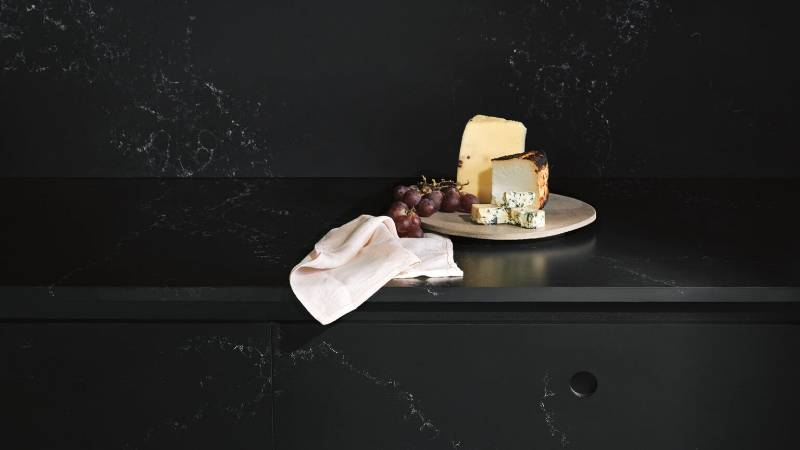

5101 Empira Black - Engineered Mineral Surface

Name: 5101 Empira Black - Engineered Mineral Surface
Brand: Caesarstone UK
SKU: inWVvip21cFN9CDb8KiZur

Verified by manufacturer 4 days ago

Caesarstone UK

Engineered mineral surfaces.

Jump to:

BOS

0208 216 6100 Website

Application

Suitable for worktops, kitchen islands, splashbacks, vanity tops, bathrooms, bar counters, bar tops, serveries, reception desk, table top, furniture and desk top.

Description

Engineered mineral surfaces, suitable for use in residential and commercial projects.

Features and benefits:

Durable.
Scratch and stain resistant.
Heat resistant.
Resistant to household chemicals, acids and solvents.
Mould and mildew resistant.
Non-porous and non-absorbent.
Suitable for a wide range of different design applications; consult manufacturer for details.
Low maintenance - no sealing or waxing required, suitable for cleaning with regular detergents.

General information

Color	Black Gold Cream Brown
Finish	Polished
Material	Mineral
Shape	Square Rectangle
Length	3040 mm
Width	1440 mm
Height	20 mm 30 mm
Warranty description	Ten year Guidance for specification option: Commercial applications. Lifetime

Uniclass	Pr_40_30_30_96 WorktopsPrimary Ss_40_25_20/510 Purpose made furniture Pr_40_20_76_95 Vanity and washroom furniture Pr_40_50_21_60 Office tables Pr_40_30_30_18 Countertops Pr_40_30_30_45 Kitchen splashbacks
CAWS	N12/440 Purpose-made N12/440 Purpose-made N10/110 Purpose-made N11/380 Purpose-made units N10/15 Desks and tables N10/30 Shelving systems N11/20 Worktops N10/10 Purpose-made N12/320 Worktops N10/125 Desks and tables N10/160 Shelving systems N10/145 Vanity and washroom furniture N10/200 Worktops N11/340 Worktops N11/370 Shelving N12/320 Worktops

Product range	Quartz

Specification data - Worktops

Material	Mineral. Guidance for specification option: Natural quartz aggregates (up to 93%), organic pigments and enhanced polymer resins.
Dimensions	-
Plan size	1440 x 3040 mm.
Thickness	13 mm. 20 mm. 30 mm.
Exposed edges	-
Profile	Bevel. Bullnose. Caesarstone. Double bevel. Double bullnose. Double eased. Double half bullnose. Eased. Full bevel. Half bullnose. Mitre. Ogee. Semi bullnose. Triple bullnose. Triple ogee.
Upstands	-
Finish	Not applicable. As worktop.
Height	- Manufacturer guidance Insert requirements or omit.
Cutouts	- Manufacturer guidance Insert requirements or omit.
Integral accessories	- Manufacturer guidance Insert requirements or omit.

Colour	5101 Empira Black.
Water absorption	To ASTM C97, ≤0.05%.
Density	To EN 14617-1, ≥2.1 g/cm³.
Flexural strength	To EN 14617-2, >40 MPa; To ASTM C880, >35 MPa.
Dimensional stability	To EN 14617-12, Class A.
Impact resistance	To EN 14617-9, >4.9 L (J).
CompressiveStrength	To EN 14617-15, 157-243 MPa; To ASTM C170, 219-299 MPa (Dry); 203-274 MPa (Wet).
Abrasion resistance	To ASTM C1243, Volume of chord V <130 mm³; To EN 14617-4, Groove length <25 mm.
Freeze-thaw resistance	To ASTM C1026, No obvious damage after 20 freeze-thaw cycles.
Linear thermal expansion coefficient	To EN 14617-11/ASTM 372, 52 x 10-6 per °C. Manufacturer guidance Linear thermal expansion.
ThermalConductivity	To EN 12664, <1 W/m∙K.
Thermal shock resistance	To EN 14617-6, No visual defects after 20 cycles.
Water resistance	To NEMALD3-3.5, No effect. Manufacturer guidance Boiling water resistance.
Temperature resistance	To NEMALD3-3.6, No effect. Manufacturer guidance High temperature resistance.
Surface	To ASTM E84, Class A - FSI: 0-25; SDI: 0-450. Manufacturer guidance Surface burning.
Fire classification	To EN 13501-1, B-s1,d0 (wall cladding); Bfl-s1 (flooring and stairs).
Fire performance	To AS 1530.3:1999, Ignitability Index (0-20): 6-8; Spread of Flame Index (0-10): 0-3; Heat Developed Index (0-10): 2-3; Smoke Developed Index (0-10): 6-7.
Chemical resistance	EN 14617-10, Class C4.
Resistance	To ANSIZ 124.6, Pass. Manufacturer guidance Stain resistance.
Stone type	Polished.

Sustainability data

Contains Red List materials	No
Material	Mineral

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1
