50 W EN54-24 Column Loudspeaker - 582453 - Column Loudspeaker
Verified by manufacturer 3 days ago

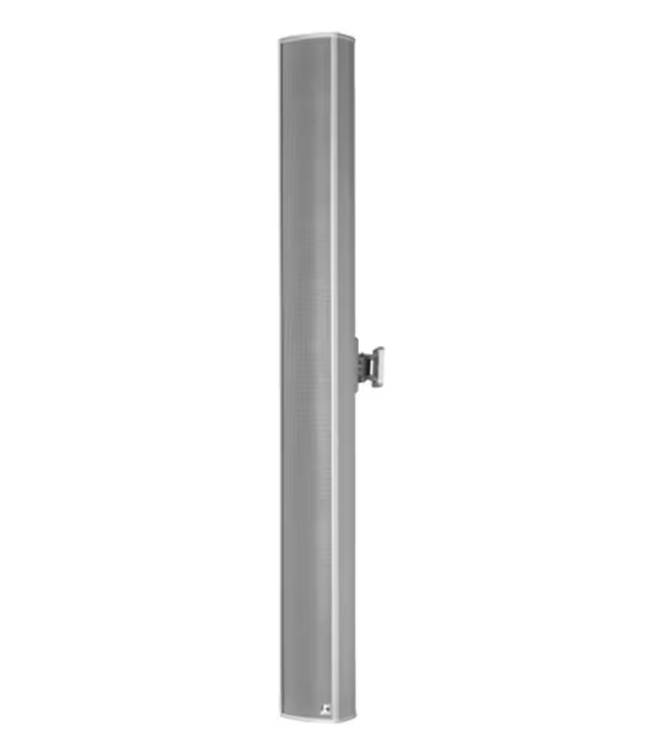

50 W column loudspeaker to EN 54-24.
Application
Suitable for the acoustic irradiation of particularly reverberant spaces that are acoustically difficult to fill with sound, such as auditoriums and conference rooms, etc.
Description
The 582453 (TS-C 50-1000/T-EN 54) column loudspeaker stands out with its good voice reproduction and its excellent sound pressure. With its sleek design, it fits inconspicuously into its respective surrounding structures. Due to its directional dispersion pattern, this column loudspeaker certified according to EN 54 Part 24.
Features and benefits:
- Sleek design.
- Excellent sound pressure.
- Silver in colour (similar to RAL 9006) as standard and optionally available in all RAL colours.
- Complies with requirements of BS 5859 Part 8, and is certified in accordance with EN 54 Part 24-24.
General information
Color | Silver Guidance for specification option: RAL 9006. |
Shape | Rectangle |
Length | 92 mm |
Width | 971 mm |
Height | 100 mm |
Uniclass | |
CAWS | V90/430 Electrical accessories |
SKU Code | 582453 |
Specification data - Column voice alarm loudspeakers
Classification data | |
Standard | To BS EN 54-24. |
Dimensions | 971 x 100 x 92 mm. Manufacturer guidanceWidth x height x depth. |
Frequency response | 250 Hz–15.8 kHz. |
Rated power | 50 W. |
Dispersion | 186° horizontal 33° vertical @ 1kHz. |
Sound power level (minimum) | 94.7 dB @ 1 m. Guidance for specification option: Sensitivity EN 54-24, max 1 m: 111.5 dB. Manufacturer guidanceSensitivity EN 54-24, 1 W / 1 m. |
Transformer tappings | 7.5 W. 15 W. 30 W. 50 W. |
Enclosure | |
Colour | White aluminium, RAL 9006. |
Environmental requirements | Ambient temperature -20 to 90°C. |
Cable connections | |
Type | Ceramic terminal block. |
Short circuit protection | Thermal fuse. |
Weight | 5.2 kg. |
Integral accessories | Wall bracket. |
Literature
Literature type
582453 50 Watt Column Loudspeaker EN54-24
VARIODYN ONE - EN54 Certified Voice Alarm Systems Brochure
