20 W EN54-24 Column Loudspeaker - 582476 - Column Loudspeaker
Verified by manufacturer 3 days ago
Intertek
Certificate type

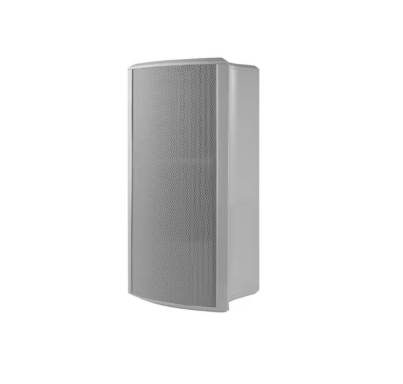

20 W column loudspeaker to EN 54-24.
Application
Suitable for indoor and outdoor applications, in both dry and humid surroundings.
Description
The 20 W column loudspeaker has a broad frequency range and a high sound pressure level. This guarantees an accurate and intelligible transmission of the evacuation message, as well as excellent sound reproduction. Due to its flat design and the white coating, the loudspeaker can be easily integrated in hotels, conference rooms, cinemas, factories, trade fair halls and other buildings.
Features and benefits:
- Broad frequency range.
- High sound pressure level.
- Excellent sound reproduction.
- Can be used indoors as well as outdoors, in dry as well as in humid surroundings.
- IP66 rated.
- Easily integrated into surroundings.
- White in colour (similar to RAL 9003).
- Complies with standard BS 5859 Part 8, and is certified in accordance with EN 54 Part 24.
General information
Color | White |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | 150 mm |
Width | 165 mm |
Height | 344 mm |
Uniclass | |
CAWS | V90/430 Electrical accessories |
SKU Code | 582476 |
Specification data - Column voice alarm loudspeakers
Classification data | |
Standard | To BS EN 54-24. |
Dimensions | 165 x 344 x 150 mm. Manufacturer guidanceWidth x height x depth. |
Frequency response | 300 Hz–15 kHz. |
Rated power | 20 W. |
Rated impedance | 500 Ω. 1 kΩ. 2 kΩ. 4 kΩ. |
Dispersion | 146° horizontal 87° vertical @ 1 kHz. |
Sound power level (minimum) | 92 dB @ 1 m. Guidance for specification option: Sensitivity EN 54-24, max 1 m: 104 dB. Manufacturer guidanceSensitivity EN 54-24, 1 W / 1 m. |
Transformer tappings | 2.5 W. 5 W. 10 W. 20 W. |
Enclosure | |
Material | Aluminium. |
Colour | White. |
Ingress protection (minimum) | IP66. |
Environmental requirements | Ambient temperature -25 to 55°C. Storage temperature -40 to 70°C. Air humidity <95%. |
Cable connections | |
Type | Ceramic terminal block. |
Short circuit protection | Thermal fuse. |
Weight | 3.75 kg. |
Integral accessories | Wall mount. |
Sustainability data
Material | Aluminium |
Product certifications
Intertek
582476 EN54-24 Certificate of Conformity
Literature
582479 20 Watt Column Loudspeaker EN54-24
