30 W EN54-24 Column Loudspeaker - 582452 - Column Loudspeaker
Verified by manufacturer 3 days ago

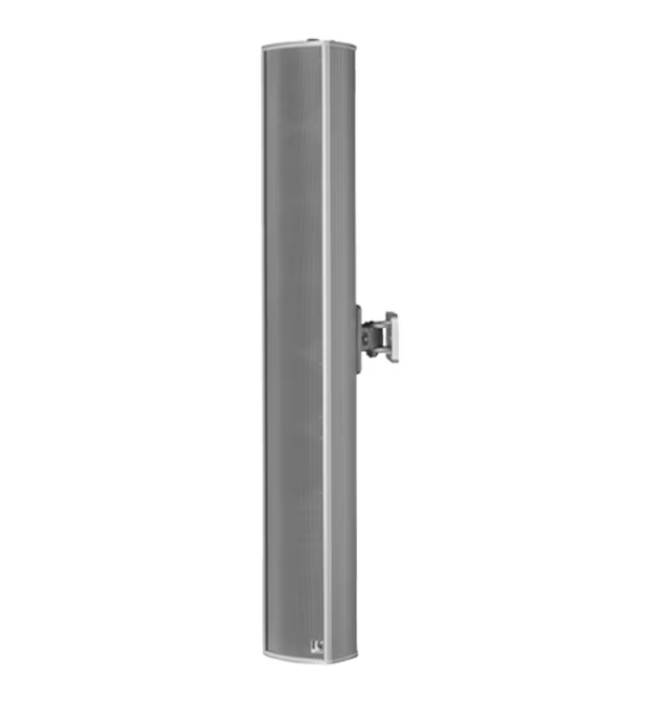

30 W column loudspeaker to EN 54-24.
Application
Suitable for the acoustic irradiation of particularly reverberant spaces that are acoustically difficult to fill with sound, such as auditoriums and conference rooms, etc.
Description
The582452 (TS-C 30-700/T-EN 54) column loudspeaker stands out with its good voice reproduction and its excellent sound pressure. With its sleek design, it fits inconspicuously into its respective surrounding structures. Due to its directional dispersion pattern, this column loudspeaker certified according to EN 54 Part 24
Features and benefits:
- Sleek design.
- Excellent sound pressure.
- Silver in colour (similar to RAL 9006) as standard and optionally available in all RAL colours.
- Complies with requirements of BS 5859 Part 8, and is certified in accordance with EN 54 Part 24-24.
General information
Color | Silver |
Shape | Rectangle |
Length | 92 mm |
Width | 700 mm |
Height | 100 mm |
Uniclass | |
CAWS | V90/430 Electrical accessories |
SKU Code | 582452 |
Specification data - Column voice alarm loudspeakers
Classification data | |
Standard | To BS EN 54-24. |
Dimensions | 700 x 100 x 92 mm. Manufacturer guidanceWidth x height x depth. |
Frequency response | 230 Hz–16.5 kHz. |
Rated power | 30 W. |
Rated voltage | 100 V. |
Dispersion | 190° horizontal 50° vertical @ 1kHz. |
Sound power level (minimum) | 93 dB @ 1 m. Guidance for specification option: Sensitivity EN 54-24, max 1 m: 107.5 dB. Manufacturer guidanceSensitivity EN 54-24, 1 W / 1 m. |
Transformer tappings | 7.5 W. 15 W. 30 W. |
Enclosure | |
Colour | Silver. RAL colour. Guidance for specification option: Consult manufacturer for details and insert requirements. |
Ingress protection (minimum) | IP66. |
Environmental requirements | Ambient temperature -20 to 90°C. |
Cable connections | |
Type | Ceramic terminal block. |
Short circuit protection | Thermal fuse. |
Weight | 3.8 kg. |
Integral accessories | Wall bracket. |
Literature

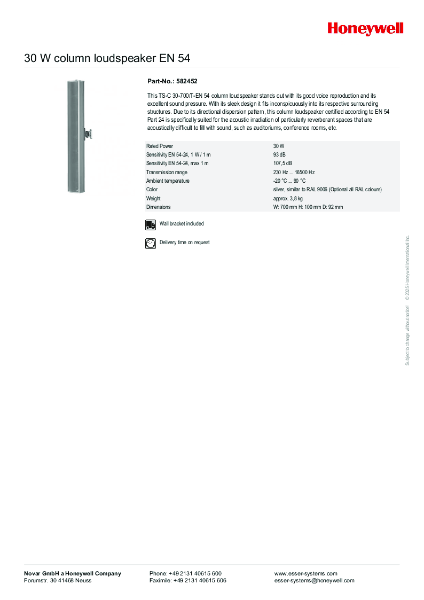

582452 30 W Column Loudspeaker EN54-24
