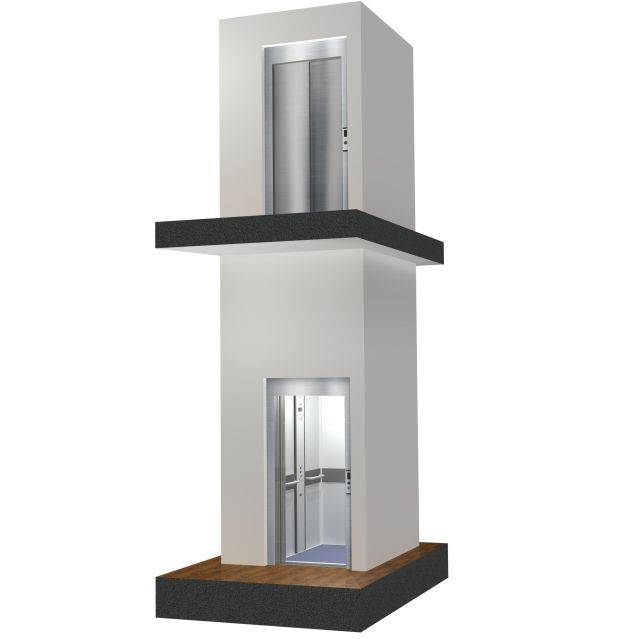

5 Person Low Speed Passenger Lift – The Piccolo

Stannah Lifts

Piccolo is a small, low speed passenger lift that falls under the Machinery Directive. It is suitable for low-rise, low usage applications up to 12 m.

Jump to:
+44 (0)1264 343777 www.stannahlifts.co.uk
Description

Piccolo lifts are an ideal access solution for both public and private buildings. This small, low speed lift is ideal for low-rise, low-usage applications.

These lifts have the same benefits as traditional platform lifts with low pit and headrooms and in addition, all the characteristics of a conventional passenger lift including sliding doors and 'one touch' controls. These small passenger lifts can be used in a variety of building applications including housing, retail stores, offices, schools and public access... even your own home.

In keeping with the Machinery Directive, the speed is limited to 0.15 m/s and the Piccolo has a drive system designed for moderate use.

Manufactured by Stannah in the UK, these lifts can be customised with a range of finishes and options that enable the lift to complement your building interior. Small passenger lifts are becoming increasingly popular because of the compact footprint, minimal builders work and effortless integration into any building.

This lift offers an affordable solution for most building applications, particularly where space is limited.

Features:

  • Enclosed cabin with a choice of finishes.
  • No lifting beam required.
  • 900 mm clear opening at each entrance.
  • Full height light ray entrance protection.
  • Audible and visual notification of floor level and travel direction on ground floor.
  • Emergency manual lowering and alarm provided by back-up battery.
  • Overload indication.
  • Keyswitch to isolate lift at main floor.
  • Cabin control: Automatic one touch push buttons on call stations and platform, door open button and alarm with siren along with an intercom system.
  • Brushed stainless steel handrail.
  • CE marked in accordance with the Machinery Directive (2006/42/EC) and BS EN 81-41.

General information
Features

Enclosed cabin with a choice of finishes

No lifting beam required

900 mm clear opening at each entrance

Full height light ray entrance protection

Audible and visual notification of floor level and travel direction on ground floor

Emergency manual lowering and alarm provided by back-up battery

Overload indication

Keyswitch to isolate lift at main floor

Cabin control: Automatic one touch push buttons on call stations and platform, door open button and alarm with siren along with an intercom system

Brushed stainless steel handrail

CE marked in accordance with the Machinery Directive (2006/42/EC) and BS EN 81-41

Uniclass 2015
Vertical lifting platforms (Pr_65_80_47_95)Primary
Specification data - Vertical lifting platforms
Product Reference

Piccolo

Configuration

As drawing

Arrangement for landing doors single entry and through car. Consult manufacturer for details and insert details.

Shaft type

FX

Wall mounted

Size -
Platform

950 x 1250 mm

Not Part M compliant. 800 mm doors.

950 x 1400 mm

Part M compliant. 800 mm doors.

1100 x 1400 mm

Building Regulations (E&W) Approved Document M and Section 4.2 (Scotland) compliant.

Shaft

Consult manufacturer and insert requirements.

Finish -
Cabin ceiling finish

Painted RAL White

Standard.

Polished stainless steel

Optional.

Cabin ceiling design

Grid with energy efficient LED lighting

Standard.

Aperture with energy efficient LED lighting

Bubbles with energy efficient LED lighting

Cabin walls

Glass

Stainless steel

Vinyl skin-plate: Dark grey

Vinyl skin-plate: Light grey

Vinyl skin-plate: Cream

Vinyl skin-plate: Light blue

Wallboards

Consult manufacturer and insert requirements.

Floor covering

Not required

For finishing by others.

Black stud vinyl

Optional.

Dark grey stud vinyl

Optional.

Light grey stud vinyl

Standard.

Slate effect PVC vinyl

Optional.

Warm beech PVC vinyl

Optional.

Console

Brushed stainless steel

Vinyl skin plate: Dark grey

Vinyl skin plate: Light grey

Vinyl skin plate: Cream

Vinyl skin plate: Light blue

Mirrors

Not required

Half height fitted either side of the control console

Opposite entrance

Opposite console

Handrail

Brushed stainless steel to either side of the console

Additional handrail opposite control console

Accessories

None

Audible feedback on button press

Auto dialler telephone

Auto dialler with induction loop

Audible and visual notification of floor level and travel direction.

BS EN 81-28 pictograms

Digital position indicators at each landing

With two tone arrival chime and voice annunciation.

Key operated controls at each landing

Remote landing stations

Return to lowest floor on fire alarm

Volt free alarm contacts

Standard product features

Headroom:

2500 mm.

Travel (maximum):

12 m.

Speed:

0.15 m/s.

Load:

Up to 400 kg, up to five persons.

Landing doors:

Powered automatic two panel sliding doors with stainless steel finish, 120 minutes' fire rated.

Drive type:

Hydraulic (pump and motor housed in a separate housing).

Power supply:

240 V AC, terminating in a 16_A type D switch spur MCB.

Lighting:

Cabin ceiling lights with battery backup emergency light.

Power supply:

230 V AC.

Pit depth:

150 mm.

Product Options

Shaft type:

  • FX structure supported: Can be installed almost anywhere. This option offers reduced construction cost, higher lift cost and a slightly larger shaft size.
  • Wall mounted: Lower lift costs, higher building costs due to construction of load-bearing wall, smaller shaft size, requires lifting beam at top and scaffolding.

Size:

- Platform:

  • 950 x 1250 mm: Shaft size (w x d: +50/-0 mm): 1550 x 1750 (wall mounted) / 1960 (FX) mm
  • 950 x 1400 mm: Shaft size (+50/-0): 1400 x 1750 (wall mounted) 1960 (FX) mm
  • 1100 x 1400 mm: Shaft size (+50/-0): 1400 x 1600 (wall mounted) 1810 (FX) mm
