4910 Roller Blind
Description

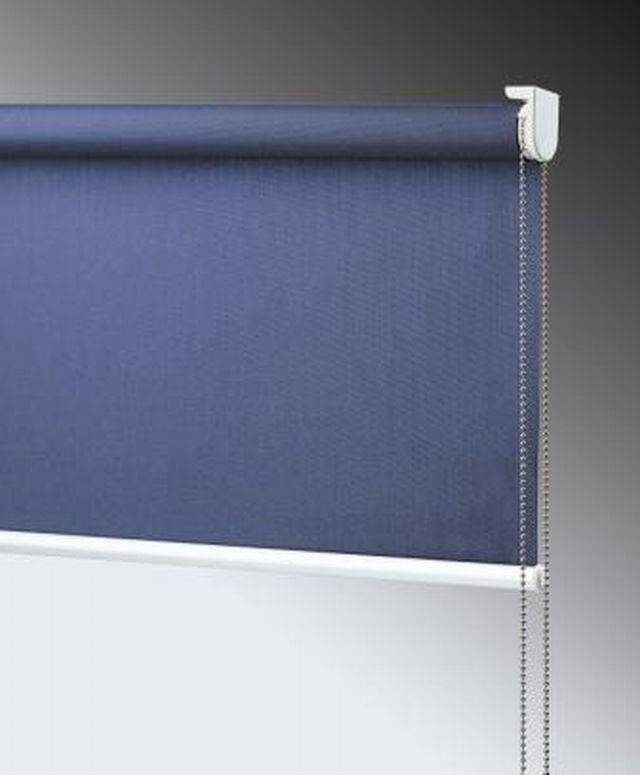

4910 Roller Blind System is a wall, ceiling or recessed mounted, endless chain operated roller blind available in single and double versions. The blind can be raised by finger-touch using stainless steel (standard) or plastic bead chain, left or right operated. The double version has a centre support bracket. It is made to measure and supplied ready assembled. The double spring version is designed for heavy fabrics up to 550 gm/m².

Varied fixing possibilities to wall, ceiling or recess are available. The blind can also be delivered with optional continuous headrail 10539, and fixed with clamps. It has easy front loading into snap brackets and bracket covers are available for neater appearance outside recess. Blinds can be stopped at any position.

General information

Features

Available with side guides and a child safety device

Uniclass 2015

Pr_30_59_07_72 Roller blindsPrimary

CAWS

N10/240 Blinds

Specification data - Roller blinds Enhanced data

Product Reference

4910 Roller Blind System

Dimensions

As drawing ___

As schedule ___

Blind material/ Colour

As schedule ___

Bottom bar material/ Colour

Silver anodized aluminium

White powder coated aluminium

Chain

-

Material

Stainless steel

Type

Single

Double (unconnected)

Fixing

Brackets Ref 10542/10543

Bracket covers Ref 10574/10575

Continuous headrail Ref 10534

Ceiling brackets Ref 3044 or 10539

Standard product features

Headrail:

  • Support tube reference: 10531.
  • Support tube dimensions: 41 mm diameter.
  • Material/ Colour: White powder coated aluminium.

Continuous headrail:

  • Material/ colour: Polyester powder coated.
  • Fixing: To soffit with ceiling brackets 3044 or 10539.

Product Options

Blind dimensions:

  • Minimum width: 600 mm.
  • Maximum widths: 2400 mm (single system, single spring), 2 x 2400 mm (double system unconnected).
  • Maximum drop: 3000 mm.
  • Max weight: 3 kg (single system); 6 kg (double system).

Blind material and colour:

A wide range of Silent Gliss® fabrics is available; consult manufacturer for details.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 4 2.0
IFC
- 4 2.0
Download now from NBS National BIM Library
