4591 Paddle Handle
Description

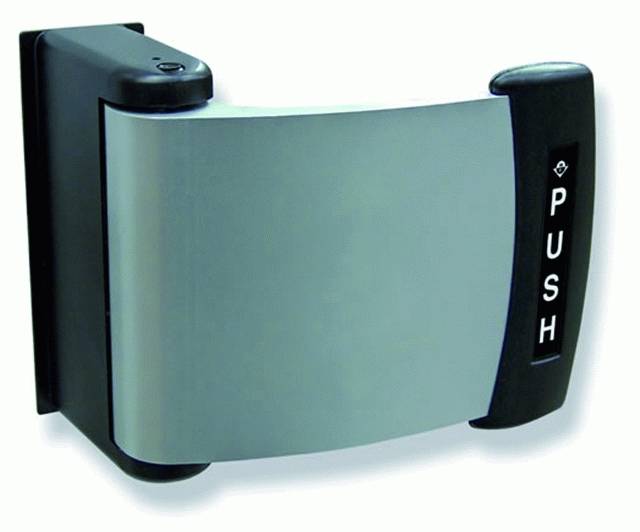

The Adams Rite 4591 paddle Handle is designed for simple push or pull operation as an alternative to a lever handle. For use with the 4700/4900 series deadlatch (expect 4750) and the MS+1890 Latch/Deadlock.

Benefits:

  • Suitable for use on aluminium and steel doors.
  • Dogging comes as standard on all versions.
  • The 4591, when used on the 4710/4910 and 4720/4920 series Deadlatch and used in conjunction with the 8461 Ramp Jaw Strikes or the 7108 and 7128 Electric Strikes, conforms to BS EN 179:2008 EC certificate of conformity number 1121-CPD-ABB013.

Standards:

In accordance with BS EN 179:2008 this product is designed to be used in emergency situations where people are familiar with the emergency exit and its hardware and therefore a panic situation is unlikely to develop. Where panic situations are foreseen, reference should be made to the Adams Rite 900 Series panic exit device range.

Additional information for this product is available from - http://www.adamsrite.co.uk/en/site/Adams-Rite-Europe/Products/Exit-devices/Emergency-exit/

General information

Uniclass 2015

Pr_30_36_08_28 Emergency exit devicesPrimary

CAWS

P21/571 Emergency exit devices

Specification data - Emergency exit devices

Product Reference

4591 Paddle Handle

Type

4591-01-01

Pull To Left Paddle Handle, with Cam Plug, 16 mm spindle length for use with 4700/4900 Series.

4591-11-00

Pull To Left Paddle Handle, 22 mm spindle length for use with MS®+1890 Series.

4591-03-01

Pull To Right Paddle Handle, with Cam Plug, 16 mm spindle length for use with 4700/4900 Series.

4591-13-00

Pull To Right Paddle Handle, 22 mm spindle length for use with MS®+1890 Series.

4591-02-01

Push To Left Paddle Handle, with Cam Plug, 16 mm spindle length for use with 4700/4900 Series.

4591-12-00

Push To Left Paddle Handle, 22 mm spindle length for use with MS®+1890 Series.

4591-04-01

Push To Right Paddle Handle, with Cam Plug, 16 mm spindle length for use with 4700/4900 Series.

4591-14-00

Push To Right Paddle Handle, 22 mm spindle length for use with MS®+1890 Series.

Colour/ Finish

Black

Bronze

Satin anodized aluminium

Accessories

None

4590-00-628

Mounting Plate For 4591 Paddle Handle SAA Finish, for use with timber door.
