41/1000 Tile Form 0.6 Mica Coated Roof Sheet - Tile Effect Roof Sheet

Verified by manufacturer 18 days ago

CLADCO PROFILES LTD

Tile effect single skin steel roofing sheet, 0.6 mm-thickness.

Jump to:
01837 659901 Website

Application

For commercial, industrial, agricultural or domestic installations.

For use in roofing (horizontal) applications, including:

  • As a single skin sheeting (single).
  • Over-clad of an existing roof (double).
  • As part of a built-up insulated system (multi).

Suggested purlin spacing: 600 mm.

Description

Single skin roofing sheet, 0.6 mm-thickness, consisting of galvanized Swedish steel coated with GreenCoat® Mica BT (external face), and polyester paint (internal face).

Features and benefits:

  • Lightweight sheet.
  • Provides the appearance of a traditional pantile/ clay tile roof.
  • Robust strength, with profiles of 200 mm across the sheet width.
  • Can be manufactured to specific length requirements.
  • Tough and hardwearing GreenCoat® Mica coating, available in a range of colours.
  • Quick and easy installation.
  • Can be used in conjunction with trims and flashings.
  • Blends well into older, culturally sensitive areas and can also give a fresh new look to new buildings.

General information

Color

Brown

Grey

Black

Other

Finish

Lacquered

Guidance for specification option:

Pre-lacquered Mica coating. External surface.

Coated

Guidance for specification option:

Polyester paint. Internal surface.

Painted

Guidance for specification option:

Polyester paint. Internal surface.

Material

Steel

Shape

Rectangle

Other

Length

6000 mm

Bespoke

Width

1000 mm

Height

41 mm

Warranty description

25 year

Guidance for specification option:

Steel sheet.

Uniclass

Pr_25_71_51_33 Galvanized carbon steel profiled sheetsPrimary

CAWS

H31/10 Metal

H31/120 Metal

Specification data - Galvanized carbon steel profiled sheets

Standard

-

Material

To BS EN 10169.

Profile

-

Depth (overall)

57 mm.

Thickness (nominal)

0.6 mm.

Form

Tile effect.

Dimensions

-

Profile height

41 mm.

Pitch

200 mm.

Guidance for specification option:

Pitch centres.

Cover width

1000 mm.

Top surface (side 1)

-

Top surface finish

GreenCoat® Mica.

Guidance for specification option:

Pre-lacquered Mica coating. An eco-friendly long-lasting coating material.

Colour

Black.
Copper Brown.
Graphite Grey.

Additional requirements

Not required.
Flashings.

Finish

Grey polyester.

Manufacturer guidance

Internal finish.

Profile lengths

-

Manufacturer guidance

Insert requirements. Maximum 6 m.

Weight

6.6 kg/m².

Fixings

-

Manufacturer guidance

Consult manufacturer for recommendations and insert requirements.

Roof pitch

12° (minimum).

Sustainability data

Country of material origin

Sweden

Country of product manufacture

United Kingdom

Material

Steel

Literature

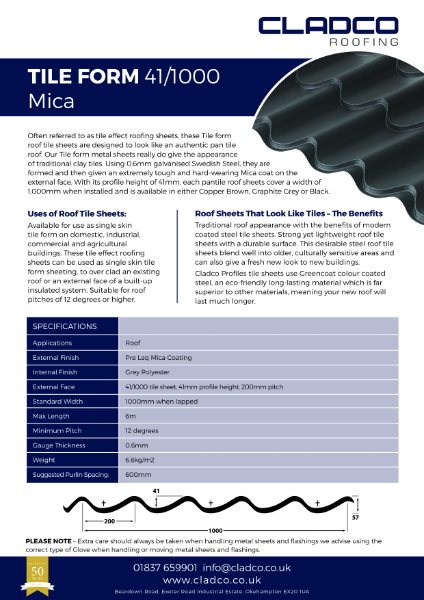

Cladco 41/1000 Tileform Steel Roofing Data Sheet

Cladco 41/1000 Tileform Steel Roofing Data Sheet

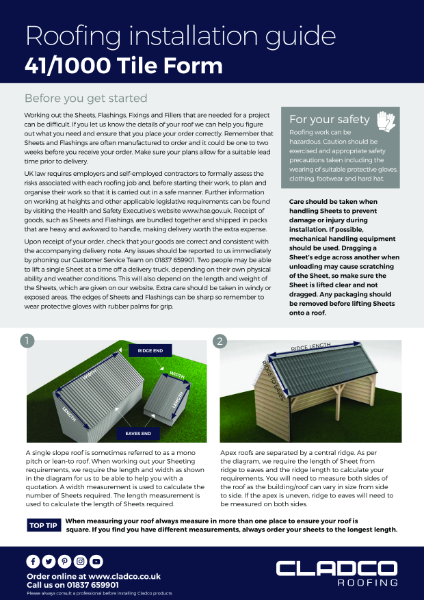

Cladco 41/1000 Tileform Steel Roofing Installation Guide

Cladco 41/1000 Tileform Steel Roofing Installation Guide
